SDO HMI 2011-11-18 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.41 | 0.00 | 4.43 | 16.26 | 310.76 | -14.16 | 43.95 | 0.3424 | -389.6 | -435.2 | |
|
previous
or next observation for the same group /

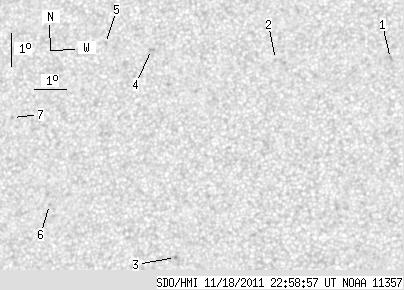

back to the solar disc SDO HMI 2011-11-18 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.67 | 17.90 | 317.38 | -7.55 | 25.11 | 0.2959 | -872.0 | -756.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 17.84 | 313.75 | -11.17 | 34.71 | 0.3253 | -733.0 | -539.1 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 11.81 | 310.96 | -13.96 | 55.24 | 0.2887 | -1006.0 | -829.8 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 18.11 | 309.76 | -15.16 | 42.48 | 0.3697 | -850.0 | -738.0 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.28 | 308.26 | -16.67 | 44.77 | 0.3884 | -802.0 | -632.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 13.36 | 306.88 | -18.04 | 57.59 | 0.3585 | 798.0 | 670.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 15.98 | 305.45 | -19.47 | 53.60 | 0.3999 | 738.0 | 545.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
