SDO HMI 2011-11-18 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.42 | 0.00 | 10.75 | 17.00 | 311.82 | -12.55 | 38.74 | 0.3335 | -688.5 | -591.1 | |
|
previous
or next observation for the same group /

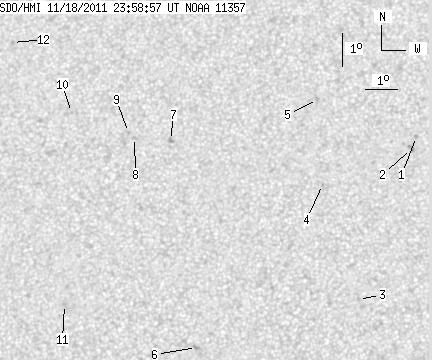

back to the solar disc SDO HMI 2011-11-18 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.27 | 317.53 | -6.84 | 22.50 | 0.2969 | -846.0 | -633.8 | |
| 0.00 | 3.00 | 0.00 | 1.56 | 17.90 | 317.39 | -6.98 | 23.43 | 0.2922 | -861.0 | -802.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 13.30 | 315.92 | -8.45 | 37.15 | 0.2380 | -788.0 | -585.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 16.78 | 314.65 | -9.72 | 33.07 | 0.2976 | -689.0 | -515.9 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 19.39 | 314.34 | -10.03 | 29.34 | 0.3367 | -748.0 | -607.1 | |
| 0.00 | 2.40 | 0.00 | 1.24 | 11.81 | 310.98 | -13.40 | 54.13 | 0.2812 | -917.0 | -705.1 | |
| 0.00 | 2.75 | 0.00 | 1.46 | 18.09 | 309.73 | -14.64 | 41.56 | 0.3638 | -877.0 | -734.0 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 18.17 | 308.56 | -15.81 | 43.52 | 0.3776 | -910.0 | -694.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.32 | 308.35 | -16.02 | 43.59 | 0.3816 | -790.0 | -619.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 18.91 | 306.43 | -17.95 | 45.59 | 0.4098 | -887.0 | -668.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 13.06 | 306.74 | -17.63 | 57.74 | 0.3505 | 745.0 | 522.1 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 21.06 | 304.19 | -20.19 | 45.02 | 0.4571 | -694.0 | -532.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
