SDO HMI 2011-11-19 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.84 | 45.59 | 10.38 | 40.49 | 7.70 | 265.47 | -56.16 | 82.34 | 0.8322 | -390.6 | -303.6 | |
|
previous
or next observation for the same group /

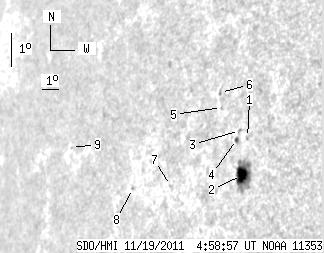

back to the solar disc SDO HMI 2011-11-19 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 1.13 | 8.60 | 266.21 | -55.42 | 81.20 | 0.8259 | 527.0 | 486.8 | |
| 10.47 | 35.37 | 9.16 | 30.84 | 7.47 | 266.13 | -55.50 | 82.59 | 0.8262 | -732.8 | -406.3 | |
| 0.00 | 1.55 | 0.00 | 1.37 | 8.80 | 265.74 | -55.89 | 81.00 | 0.8306 | 489.0 | 438.6 | |
| 1.37 | 1.80 | 1.22 | 1.60 | 8.53 | 265.64 | -55.99 | 81.33 | 0.8314 | 476.9 | 412.0 | |
| 0.00 | 1.03 | 0.00 | 0.94 | 9.45 | 264.60 | -57.03 | 80.29 | 0.8418 | -393.0 | -371.9 | |
| 0.00 | 1.55 | 0.00 | 1.42 | 9.89 | 264.42 | -57.21 | 79.78 | 0.8436 | -240.0 | -225.9 | |
| 0.00 | 1.03 | 0.00 | 1.00 | 7.03 | 262.24 | -59.39 | 83.25 | 0.8622 | -430.0 | -416.0 | |
| 0.00 | 1.20 | 0.00 | 1.25 | 6.86 | 259.95 | -61.68 | 83.50 | 0.8816 | -311.0 | -246.9 | |
| 0.00 | 0.77 | 0.00 | 0.94 | 7.92 | 255.48 | -66.15 | 82.40 | 0.9157 | -301.0 | -256.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
