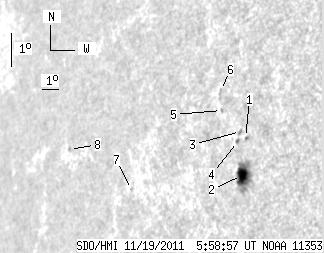

SDO HMI 2011-11-19 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.42 | 44.21 | 9.86 | 38.76 | 7.73 | 265.41 | -55.68 | 82.26 | 0.8275 | -400.2 | -307.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.82 | 8.61 | 266.08 | -55.00 | 81.16 | 0.8219 | 639.0 | 613.5 | |
| 10.22 | 34.60 | 8.81 | 29.75 | 7.48 | 266.11 | -54.98 | 82.54 | 0.8211 | -738.1 | -420.1 | |
| 0.00 | 1.72 | 0.00 | 1.50 | 8.78 | 265.78 | -55.30 | 80.98 | 0.8249 | 454.0 | 376.9 | |
| 1.20 | 1.97 | 1.05 | 1.72 | 8.48 | 265.69 | -55.39 | 81.35 | 0.8256 | 507.4 | 496.4 | |
| 0.00 | 1.20 | 0.00 | 1.08 | 9.37 | 264.62 | -56.46 | 80.34 | 0.8364 | -494.0 | -400.7 | |
| 0.00 | 1.46 | 0.00 | 1.32 | 9.96 | 264.41 | -56.67 | 79.65 | 0.8387 | -274.0 | -252.6 | |
| 0.00 | 1.12 | 0.00 | 1.14 | 6.84 | 259.97 | -61.11 | 83.50 | 0.8769 | -318.0 | -276.5 | |
| 0.00 | 1.20 | 0.00 | 1.43 | 7.88 | 255.53 | -65.55 | 82.43 | 0.9114 | -384.0 | -287.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
