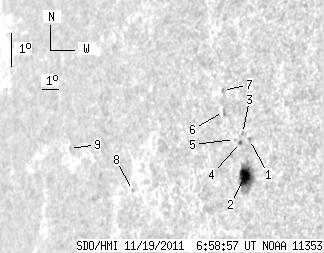

SDO HMI 2011-11-19 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.53 | 42.25 | 10.67 | 36.56 | 7.78 | 265.41 | -55.13 | 82.17 | 0.8221 | -407.3 | -320.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 1.24 | 8.57 | 266.17 | -54.37 | 81.17 | 0.8156 | 727.0 | 562.0 | |
| 11.16 | 31.68 | 9.49 | 26.89 | 7.46 | 266.13 | -54.41 | 82.53 | 0.8154 | -766.5 | -434.3 | |
| 0.00 | 1.03 | 0.00 | 0.89 | 8.73 | 265.77 | -54.77 | 80.99 | 0.8197 | 492.0 | 396.6 | |
| 1.37 | 1.46 | 1.18 | 1.26 | 8.46 | 265.72 | -54.81 | 81.32 | 0.8200 | 573.4 | 360.0 | |
| 0.00 | 0.69 | 0.00 | 0.60 | 8.54 | 265.39 | -55.15 | 81.25 | 0.8233 | -236.0 | -195.1 | |
| 0.00 | 2.58 | 0.00 | 2.28 | 9.36 | 264.62 | -55.92 | 80.32 | 0.8313 | -531.0 | -345.8 | |
| 0.00 | 1.29 | 0.00 | 1.15 | 9.98 | 264.40 | -56.14 | 79.59 | 0.8337 | -376.0 | -262.0 | |
| 0.00 | 0.94 | 0.00 | 0.95 | 6.83 | 259.98 | -60.56 | 83.50 | 0.8723 | -319.0 | -255.5 | |
| 0.00 | 1.12 | 0.00 | 1.30 | 7.92 | 255.54 | -64.99 | 82.36 | 0.9074 | -357.0 | -281.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
