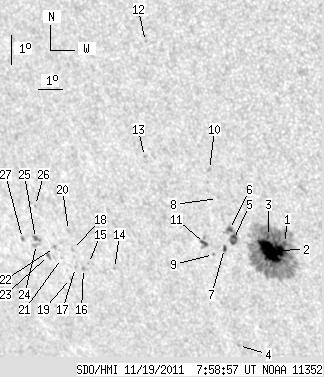

SDO HMI 2011-11-19 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.74 | 239.88 | 34.40 | 162.92 | -23.78 | 284.79 | -35.20 | 129.53 | 0.6852 | 472.1 | 263.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 194.01 | 0.80 | 129.99 | -23.59 | 286.40 | -33.59 | 130.40 | 0.6681 | 1036.2 | 338.9 | |
| 33.22 | -1.00 | 22.26 | -1.00 | -23.84 | 285.82 | -34.17 | 130.27 | 0.6756 | 1044.6 | 999999 | |
| 1.12 | -1.00 | 0.74 | -1.00 | -23.38 | 285.84 | -34.15 | 129.71 | 0.6721 | 876.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -27.08 | 283.39 | -36.60 | 132.38 | 0.7211 | 497.0 | 314.6 | |
| 5.67 | 11.85 | 3.85 | 8.05 | -23.51 | 284.42 | -35.57 | 128.84 | 0.6872 | 643.6 | 537.8 | |
| 2.49 | -5.00 | 1.69 | -5.00 | -23.18 | 284.36 | -35.63 | 128.39 | 0.6856 | 696.3 | 999999 | |
| 1.89 | 2.49 | 1.29 | 1.71 | -23.82 | 283.96 | -36.03 | 128.90 | 0.6938 | 371.9 | 284.9 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -22.18 | 284.19 | -35.80 | 127.01 | 0.6807 | 713.0 | 598.6 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -24.03 | 283.45 | -36.54 | 128.80 | 0.7002 | 454.0 | 282.5 | |
| 0.00 | 1.72 | 0.00 | 1.15 | -21.24 | 284.15 | -35.84 | 125.77 | 0.6751 | 558.0 | 433.3 | |
| 2.49 | 6.44 | 1.72 | 4.45 | -23.67 | 283.20 | -36.79 | 128.20 | 0.7003 | 617.4 | 523.3 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -17.20 | 282.69 | -37.30 | 119.46 | 0.6672 | 526.0 | 386.4 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -20.88 | 281.66 | -38.34 | 123.71 | 0.6990 | 638.0 | 535.6 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -24.61 | 279.10 | -40.89 | 126.76 | 0.7453 | -620.0 | -520.9 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -24.48 | 278.02 | -41.97 | 125.99 | 0.7546 | -642.0 | -600.3 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -24.65 | 277.73 | -42.27 | 126.03 | 0.7582 | -620.0 | -567.5 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -24.63 | 277.38 | -42.61 | 125.82 | 0.7613 | -659.0 | -571.2 | |
| 0.00 | 1.20 | 0.00 | 0.91 | -24.03 | 277.50 | -42.49 | 125.18 | 0.7571 | -639.0 | -540.1 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -25.01 | 276.99 | -43.00 | 126.05 | 0.7667 | -588.0 | -505.2 | |
| 0.00 | 0.43 | 0.00 | 0.32 | -23.41 | 277.58 | -42.42 | 124.47 | 0.7532 | -670.0 | -474.0 | |
| 0.00 | 0.69 | 0.00 | 0.53 | -24.35 | 276.88 | -43.12 | 125.22 | 0.7645 | -655.0 | -588.4 | |
| 0.00 | 1.72 | 0.00 | 1.31 | -23.99 | 276.72 | -43.28 | 124.71 | 0.7642 | -778.0 | -658.0 | |
| 1.29 | 2.32 | 0.99 | 1.79 | -24.27 | 276.33 | -43.66 | 124.83 | 0.7691 | -374.0 | -358.1 | |
| 0.00 | 2.92 | 0.00 | 2.26 | -23.91 | 275.94 | -44.05 | 124.22 | 0.7710 | -701.0 | -555.4 | |
| 1.37 | 3.43 | 1.06 | 2.65 | -23.72 | 275.98 | -44.01 | 124.00 | 0.7697 | -688.6 | -625.5 | |
| 0.00 | 0.52 | 0.00 | 0.39 | -22.62 | 276.43 | -43.56 | 122.93 | 0.7603 | -441.0 | -429.3 | |
| 0.00 | 1.55 | 0.00 | 1.21 | -23.73 | 275.38 | -44.61 | 123.72 | 0.7753 | -463.0 | -402.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
