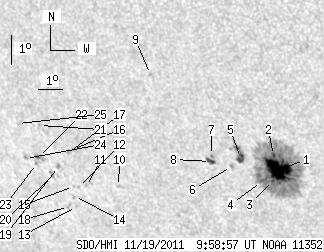

SDO HMI 2011-11-19 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.72 | 251.23 | 29.82 | 168.55 | -23.88 | 284.68 | -34.22 | 130.37 | 0.6761 | 381.4 | 254.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.41 | 206.76 | 20.78 | 136.77 | -23.88 | 285.82 | -33.08 | 131.14 | 0.6651 | 1036.4 | 344.9 | |
| 1.12 | -1.00 | 0.74 | -1.00 | -23.42 | 285.76 | -33.15 | 130.52 | 0.6623 | 862.7 | 999999 | |
| 0.86 | -1.00 | 0.57 | -1.00 | -24.25 | 285.47 | -33.43 | 131.33 | 0.6712 | 438.2 | 999999 | |
| 1.46 | -1.00 | 0.98 | -1.00 | -24.29 | 285.03 | -33.87 | 131.05 | 0.6759 | -231.6 | 999999 | |
| 5.49 | 14.08 | 3.68 | 9.43 | -23.52 | 284.44 | -34.46 | 129.64 | 0.6761 | 661.0 | 555.2 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -23.82 | 283.99 | -34.91 | 129.69 | 0.6827 | 519.0 | 400.0 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -23.48 | 283.31 | -35.60 | 128.77 | 0.6871 | 726.0 | 700.9 | |
| 3.26 | 4.12 | 2.22 | 2.81 | -23.68 | 283.20 | -35.70 | 128.95 | 0.6895 | 542.8 | 432.1 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -20.89 | 281.66 | -37.24 | 124.38 | 0.6875 | 562.0 | 411.2 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -24.62 | 279.09 | -39.82 | 127.40 | 0.7351 | -640.0 | -573.1 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -24.65 | 277.69 | -41.21 | 126.62 | 0.7483 | -648.0 | -603.3 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -24.70 | 277.33 | -41.57 | 126.47 | 0.7520 | -676.0 | -568.2 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -25.34 | 276.97 | -41.93 | 127.02 | 0.7587 | -535.0 | -473.0 | |
| 0.00 | 1.20 | 0.00 | 0.91 | -25.01 | 277.02 | -41.88 | 126.66 | 0.7564 | -400.0 | -471.0 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -24.67 | 277.12 | -41.78 | 126.32 | 0.7538 | -486.0 | -407.2 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -23.44 | 277.57 | -41.33 | 125.10 | 0.7430 | -686.0 | -508.3 | |
| 0.00 | 1.29 | 0.00 | 0.95 | -23.54 | 277.35 | -41.55 | 125.10 | 0.7456 | -751.0 | -675.4 | |
| 0.00 | 2.06 | 0.00 | 1.57 | -25.35 | 276.61 | -42.29 | 126.83 | 0.7620 | -522.0 | -525.9 | |
| 0.00 | 1.97 | 0.00 | 1.48 | -24.02 | 276.73 | -42.17 | 125.33 | 0.7540 | -766.0 | -615.0 | |
| 0.00 | 3.26 | 0.00 | 2.47 | -24.33 | 276.33 | -42.57 | 125.48 | 0.7593 | -543.0 | -356.8 | |
| 0.00 | 1.29 | 0.00 | 0.96 | -22.69 | 276.42 | -42.48 | 123.57 | 0.7501 | -646.0 | -494.4 | |
| 1.12 | 3.00 | 0.85 | 2.28 | -23.75 | 275.95 | -42.95 | 124.59 | 0.7598 | -704.2 | -661.4 | |
| 0.00 | 1.46 | 0.00 | 1.11 | -23.95 | 275.78 | -43.12 | 124.74 | 0.7625 | -553.0 | -511.5 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -23.80 | 275.35 | -43.55 | 124.33 | 0.7657 | -631.0 | -438.2 | |
| 0.00 | 0.86 | 0.00 | 0.65 | -22.65 | 275.47 | -43.43 | 123.03 | 0.7591 | -320.0 | -262.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
