SDO HMI 2011-11-19 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.53 | 398.83 | 90.49 | 342.15 | -15.50 | 266.56 | -52.35 | 110.93 | 0.8184 | 70.3 | 34.2 | |
|
previous
or next observation for the same group /

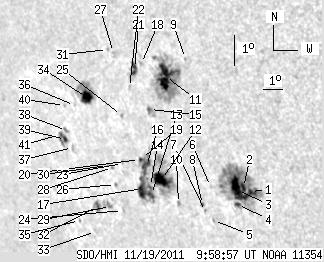

back to the solar disc SDO HMI 2011-11-19 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 113.38 | 1.23 | 91.27 | -16.69 | 270.31 | -48.59 | 113.55 | 0.7860 | 907.4 | 321.9 | |
| 2.83 | -1.00 | 2.27 | -1.00 | -16.57 | 270.02 | -48.89 | 113.30 | 0.7885 | 947.7 | 999999 | |
| 17.85 | -1.00 | 14.41 | -1.00 | -16.68 | 269.70 | -49.21 | 113.32 | 0.7920 | 710.0 | 999999 | |
| 1.89 | -1.00 | 1.53 | -1.00 | -17.12 | 269.54 | -49.36 | 113.80 | 0.7949 | 404.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.08 | -17.67 | 268.16 | -50.74 | 113.98 | 0.8097 | 577.0 | 410.2 | |
| 0.00 | 1.20 | 0.00 | 1.00 | -16.59 | 268.42 | -50.48 | 112.79 | 0.8041 | 284.0 | 194.5 | |
| 0.00 | 1.12 | 0.00 | 0.94 | -17.40 | 267.87 | -51.03 | 113.56 | 0.8116 | 557.0 | 488.9 | |
| 1.03 | 1.29 | 0.87 | 1.09 | -17.18 | 267.81 | -51.09 | 113.28 | 0.8116 | 381.2 | 312.0 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -12.64 | 268.47 | -50.43 | 107.99 | 0.7931 | -238.0 | -239.0 | |
| 0.00 | 1.97 | 0.00 | 1.71 | -17.19 | 266.60 | -52.30 | 112.90 | 0.8228 | 349.0 | 144.1 | |
| 18.71 | 86.94 | 15.58 | 72.35 | -13.23 | 267.33 | -51.57 | 108.39 | 0.8059 | 778.8 | 256.1 | |
| 15.88 | 106.77 | 13.88 | 94.14 | -16.46 | 266.02 | -52.88 | 111.87 | 0.8262 | -802.6 | -343.6 | |
| 3.86 | -12.00 | 3.45 | -12.00 | -16.95 | 265.30 | -53.60 | 112.23 | 0.8340 | -488.0 | 999999 | |
| 0.43 | -12.00 | 0.38 | -12.00 | -16.70 | 265.35 | -53.55 | 111.96 | 0.8329 | -321.6 | 999999 | |
| 0.60 | 5.75 | 0.52 | 4.94 | -14.28 | 266.20 | -52.70 | 109.35 | 0.8193 | 494.1 | 336.7 | |
| 5.84 | -12.00 | 5.17 | -12.00 | -16.04 | 265.40 | -53.50 | 111.20 | 0.8308 | -708.7 | 999999 | |
| 12.19 | -12.00 | 10.97 | -12.00 | -16.78 | 264.90 | -54.01 | 111.92 | 0.8371 | 568.3 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.46 | -12.86 | 266.25 | -52.65 | 107.67 | 0.8156 | 461.0 | 398.3 | |
| 0.43 | -12.00 | 0.38 | -12.00 | -15.83 | 265.22 | -53.68 | 110.91 | 0.8319 | -134.0 | 999999 | |
| 0.77 | -12.00 | 0.69 | -12.00 | -15.87 | 265.11 | -53.79 | 110.91 | 0.8331 | 173.6 | 999999 | |
| 4.89 | 10.81 | 4.21 | 9.33 | -13.03 | 265.84 | -53.06 | 107.76 | 0.8199 | 417.0 | 110.1 | |
| 0.00 | 1.12 | 0.00 | 0.97 | -13.63 | 265.39 | -53.51 | 108.36 | 0.8254 | 283.0 | 278.2 | |
| 0.00 | 1.03 | 0.00 | 0.94 | -16.02 | 264.14 | -54.76 | 110.83 | 0.8421 | -371.0 | -403.4 | |
| 0.00 | 1.20 | 0.00 | 1.13 | -17.52 | 263.49 | -55.41 | 112.37 | 0.8511 | 525.0 | 415.2 | |
| 0.00 | 1.03 | 0.00 | 0.92 | -14.52 | 264.67 | -54.23 | 109.22 | 0.8340 | 557.0 | 429.7 | |
| 0.00 | 1.46 | 0.00 | 1.36 | -16.70 | 263.47 | -55.43 | 111.43 | 0.8494 | -653.0 | -542.3 | |
| 0.00 | 1.03 | 0.00 | 0.90 | -12.57 | 264.90 | -54.00 | 106.99 | 0.8278 | 485.0 | 483.0 | |
| 0.00 | 1.20 | 0.00 | 1.11 | -16.17 | 263.54 | -55.36 | 110.84 | 0.8477 | -637.0 | -565.6 | |
| 1.03 | 5.84 | 0.98 | 5.58 | -17.41 | 262.87 | -56.03 | 112.08 | 0.8560 | 367.4 | -6.8 | |
| 0.00 | 0.77 | 0.00 | 0.72 | -16.12 | 263.29 | -55.62 | 110.71 | 0.8497 | -501.0 | -497.3 | |
| 0.00 | 1.20 | 0.00 | 1.06 | -12.49 | 264.61 | -54.29 | 106.82 | 0.8303 | 480.0 | 383.2 | |
| 3.52 | 5.66 | 3.42 | 5.51 | -17.44 | 262.12 | -56.78 | 111.91 | 0.8623 | -624.1 | -399.0 | |
| 0.00 | 1.63 | 0.00 | 1.62 | -18.24 | 261.61 | -57.30 | 112.68 | 0.8682 | -609.0 | -484.5 | |
| 9.27 | 27.72 | 8.61 | 25.75 | -14.02 | 262.97 | -55.93 | 108.22 | 0.8482 | -706.5 | -368.3 | |
| 0.00 | 1.20 | 0.00 | 1.21 | -17.93 | 260.83 | -58.07 | 112.13 | 0.8737 | -281.0 | -243.8 | |
| 0.00 | 0.94 | 0.00 | 0.90 | -14.30 | 262.20 | -56.70 | 108.35 | 0.8555 | -315.0 | -247.4 | |
| 0.00 | 1.80 | 0.00 | 1.76 | -15.62 | 261.53 | -57.37 | 109.70 | 0.8635 | -652.0 | -576.5 | |
| 0.00 | 2.49 | 0.00 | 2.43 | -15.10 | 261.41 | -57.49 | 109.08 | 0.8636 | -599.0 | -475.6 | |
| 1.63 | 7.55 | 1.60 | 7.45 | -15.38 | 261.23 | -57.67 | 109.36 | 0.8656 | -539.3 | -286.4 | |
| 0.00 | 0.86 | 0.00 | 0.83 | -14.32 | 261.62 | -57.28 | 108.24 | 0.8604 | -301.0 | -264.7 | |
| 0.34 | -39.00 | 0.34 | -39.00 | -15.24 | 261.01 | -57.89 | 109.15 | 0.8672 | -347.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
