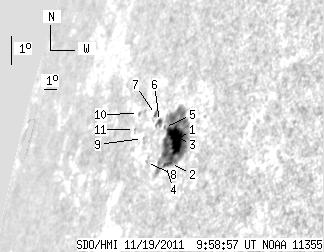

SDO HMI 2011-11-19 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.61 | 122.90 | 30.02 | 156.87 | 14.39 | 251.98 | -66.92 | 75.37 | 0.9226 | -386.1 | -90.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.37 | 112.26 | 23.13 | 142.18 | 14.41 | 252.25 | -66.65 | 75.33 | 0.9209 | -594.2 | -108.8 | |
| 0.26 | -1.00 | 0.32 | -1.00 | 13.68 | 252.21 | -66.69 | 76.12 | 0.9209 | -513.0 | 999999 | |
| 1.46 | -1.00 | 1.89 | -1.00 | 14.57 | 251.52 | -67.39 | 75.20 | 0.9257 | 180.8 | 999999 | |
| 1.12 | -1.00 | 1.42 | -1.00 | 13.61 | 251.86 | -67.04 | 76.23 | 0.9231 | -288.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.25 | 14.74 | 251.08 | -67.82 | 75.05 | 0.9285 | 39.0 | 38.5 | |
| 1.89 | 3.69 | 2.55 | 4.97 | 14.90 | 250.56 | -68.34 | 74.91 | 0.9318 | -301.6 | -228.1 | |
| 0.51 | 2.32 | 0.71 | 3.20 | 15.10 | 250.08 | -68.82 | 74.72 | 0.9348 | -70.3 | -18.2 | |
| 0.00 | 1.12 | 0.00 | 1.52 | 13.64 | 250.28 | -68.62 | 76.28 | 0.9331 | 512.0 | 380.4 | |
| 0.00 | 0.77 | 0.00 | 1.09 | 14.34 | 249.48 | -69.43 | 75.57 | 0.9381 | 341.0 | 341.3 | |
| 0.00 | 0.94 | 0.00 | 1.39 | 15.07 | 248.58 | -70.32 | 74.84 | 0.9435 | 312.0 | 287.7 | |
| 0.00 | 0.86 | 0.00 | 1.27 | 14.58 | 248.58 | -70.32 | 75.36 | 0.9433 | 199.0 | 188.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
