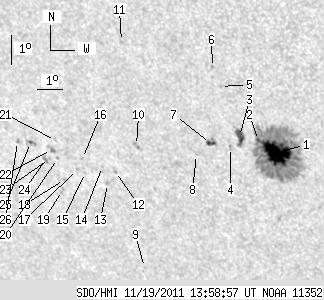

SDO HMI 2011-11-19 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.28 | 254.95 | 34.63 | 167.20 | -23.88 | 284.46 | -32.25 | 131.92 | 0.6567 | 476.3 | 195.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.63 | 202.79 | 25.61 | 131.01 | -23.90 | 285.73 | -30.98 | 132.88 | 0.6445 | 1072.4 | 311.3 | |
| 0.60 | -1.00 | 0.39 | -1.00 | -23.52 | 285.15 | -31.56 | 131.91 | 0.6472 | 642.4 | 999999 | |
| 8.41 | 10.89 | 5.48 | 7.11 | -23.40 | 284.46 | -32.25 | 131.20 | 0.6532 | 696.3 | 519.6 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -23.77 | 284.01 | -32.70 | 131.31 | 0.6605 | 545.0 | 435.1 | |
| 0.00 | 1.37 | 0.00 | 0.89 | -21.78 | 284.17 | -32.54 | 128.88 | 0.6441 | 738.0 | 547.3 | |
| 0.00 | 1.29 | 0.00 | 0.83 | -21.17 | 284.02 | -32.69 | 127.97 | 0.6412 | 615.0 | 500.5 | |
| 3.52 | 5.66 | 2.33 | 3.75 | -23.66 | 283.27 | -33.44 | 130.58 | 0.6670 | 543.4 | 584.2 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -24.04 | 282.61 | -34.10 | 130.55 | 0.6762 | 396.0 | 304.8 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -27.93 | 279.11 | -37.60 | 132.66 | 0.7353 | 553.0 | 475.6 | |
| 0.00 | 2.57 | 0.00 | 1.77 | -23.80 | 280.30 | -36.41 | 128.59 | 0.6972 | -706.0 | -673.3 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -20.41 | 280.72 | -35.99 | 124.57 | 0.6713 | 563.0 | 459.1 | |
| 0.00 | 1.37 | 0.00 | 0.97 | -24.69 | 279.14 | -37.57 | 128.90 | 0.7142 | -501.0 | -453.9 | |
| 0.00 | 1.63 | 0.00 | 1.16 | -25.10 | 278.66 | -38.05 | 129.07 | 0.7213 | -700.0 | -505.5 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -24.54 | 278.65 | -38.06 | 128.40 | 0.7178 | -591.0 | -490.8 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -24.76 | 277.86 | -38.85 | 128.16 | 0.7267 | -481.0 | -447.3 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -24.29 | 277.91 | -38.80 | 127.63 | 0.7235 | -502.0 | -499.4 | |
| 0.00 | 1.20 | 0.00 | 0.87 | -24.67 | 277.56 | -39.15 | 127.86 | 0.7290 | -732.0 | -609.6 | |
| 0.00 | 1.46 | 0.00 | 1.07 | -25.02 | 276.88 | -39.84 | 127.85 | 0.7375 | -645.0 | -572.0 | |
| 0.00 | 1.72 | 0.00 | 1.26 | -25.39 | 276.64 | -40.07 | 128.15 | 0.7419 | -613.0 | -475.5 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -24.32 | 276.85 | -39.87 | 127.01 | 0.7338 | -537.0 | -519.2 | |
| 0.00 | 1.20 | 0.00 | 0.87 | -23.73 | 276.98 | -39.73 | 126.37 | 0.7290 | -748.0 | -570.1 | |
| 0.00 | 3.52 | 0.00 | 2.55 | -24.03 | 276.70 | -40.01 | 126.57 | 0.7335 | -829.0 | -657.9 | |
| 0.00 | 1.12 | 0.00 | 0.81 | -24.33 | 276.50 | -40.21 | 126.81 | 0.7371 | -524.0 | -399.5 | |
| 0.00 | 2.92 | 0.00 | 2.14 | -24.37 | 276.31 | -40.40 | 126.75 | 0.7391 | -594.0 | -426.9 | |
| 1.12 | 4.89 | 0.82 | 3.59 | -23.82 | 275.88 | -40.83 | 125.84 | 0.7401 | -685.7 | -589.9 | |
| 0.00 | 1.20 | 0.00 | 0.89 | -23.81 | 275.33 | -41.38 | 125.51 | 0.7453 | -608.0 | -519.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
