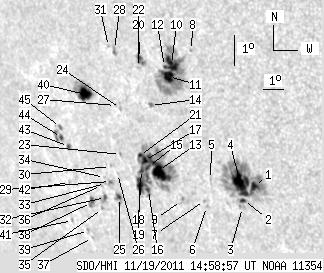

SDO HMI 2011-11-19 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.25 | 409.51 | 98.03 | 331.18 | -15.54 | 266.54 | -49.62 | 111.82 | 0.7923 | 40.0 | 13.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.37 | 108.42 | 3.31 | 82.77 | -16.68 | 270.24 | -45.92 | 114.53 | 0.7588 | 962.9 | 299.6 | |
| 2.14 | 3.52 | 1.65 | 2.71 | -17.13 | 269.60 | -46.56 | 114.85 | 0.7670 | 512.2 | 73.6 | |
| 0.00 | 2.57 | 0.00 | 1.99 | -17.36 | 269.48 | -46.68 | 115.08 | 0.7690 | 144.0 | 207.4 | |
| 26.16 | -1.00 | 20.02 | -1.00 | -16.60 | 269.64 | -46.52 | 114.20 | 0.7648 | 752.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -16.52 | 268.29 | -47.87 | 113.59 | 0.7781 | 346.0 | 289.1 | |
| 0.00 | 0.94 | 0.00 | 0.75 | -17.38 | 267.81 | -48.35 | 114.47 | 0.7858 | 630.0 | 467.9 | |
| 0.00 | 1.03 | 0.00 | 0.82 | -17.19 | 267.78 | -48.38 | 114.23 | 0.7854 | 477.0 | 463.7 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -12.52 | 268.57 | -47.59 | 108.68 | 0.7632 | -249.0 | -284.3 | |
| 0.00 | 2.66 | 0.00 | 2.17 | -17.23 | 266.68 | -49.48 | 113.88 | 0.7963 | 426.0 | 336.6 | |
| 9.52 | 86.38 | 7.43 | 67.67 | -12.99 | 267.54 | -48.62 | 108.94 | 0.7754 | 889.1 | 258.7 | |
| 7.72 | -10.00 | 6.07 | -10.00 | -13.36 | 267.30 | -48.86 | 109.34 | 0.7789 | 776.8 | 999999 | |
| 0.86 | -10.00 | 0.67 | -10.00 | -13.06 | 267.19 | -48.97 | 108.93 | 0.7791 | 479.7 | 999999 | |
| 23.16 | 118.63 | 19.06 | 98.12 | -16.32 | 265.90 | -50.26 | 112.51 | 0.8012 | -856.4 | -367.0 | |
| 1.46 | 2.32 | 1.18 | 1.87 | -14.29 | 266.18 | -49.98 | 110.14 | 0.7928 | 475.6 | 454.9 | |
| 2.40 | -13.00 | 2.00 | -13.00 | -16.21 | 265.45 | -50.71 | 112.23 | 0.8052 | -433.2 | 999999 | |
| 1.72 | -13.00 | 1.44 | -13.00 | -16.93 | 265.18 | -50.98 | 113.02 | 0.8098 | -572.8 | 999999 | |
| 4.20 | -13.00 | 3.50 | -13.00 | -16.02 | 265.32 | -50.84 | 111.97 | 0.8059 | -577.9 | 999999 | |
| 2.66 | -13.00 | 2.23 | -13.00 | -16.31 | 265.07 | -51.09 | 112.24 | 0.8091 | 588.8 | 999999 | |
| 6.26 | -13.00 | 5.30 | -13.00 | -16.76 | 264.80 | -51.36 | 112.68 | 0.8129 | 527.1 | 999999 | |
| 3.00 | 7.03 | 2.42 | 5.65 | -12.85 | 266.07 | -50.09 | 108.34 | 0.7901 | 388.8 | 532.2 | |
| 0.94 | -13.00 | 0.79 | -13.00 | -15.87 | 265.12 | -51.04 | 111.73 | 0.8074 | 264.3 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.90 | -13.13 | 265.95 | -50.21 | 108.65 | 0.7921 | 297.0 | 231.0 | |
| 0.00 | 1.03 | 0.00 | 0.88 | -15.87 | 264.18 | -51.98 | 111.44 | 0.8163 | -499.0 | -399.7 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -14.43 | 264.68 | -51.48 | 109.87 | 0.8079 | 563.0 | 497.8 | |
| 1.97 | 5.58 | 1.72 | 4.87 | -17.24 | 263.60 | -52.56 | 112.87 | 0.8252 | 338.4 | 282.1 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -16.48 | 263.80 | -52.36 | 112.04 | 0.8214 | -588.0 | -484.8 | |
| 0.00 | 1.20 | 0.00 | 1.01 | -14.35 | 264.46 | -51.70 | 109.70 | 0.8098 | 203.0 | 167.9 | |
| 0.00 | 3.86 | 0.00 | 3.18 | -12.61 | 264.94 | -51.22 | 107.73 | 0.8010 | 629.0 | 469.6 | |
| 1.29 | 2.49 | 1.13 | 2.18 | -16.74 | 263.34 | -52.82 | 112.22 | 0.8264 | -741.2 | -670.8 | |
| 0.00 | 0.51 | 0.00 | 0.45 | -16.27 | 263.52 | -52.64 | 111.71 | 0.8235 | -574.0 | -556.7 | |
| 0.00 | 1.12 | 0.00 | 0.92 | -12.53 | 264.67 | -51.49 | 107.56 | 0.8035 | 489.0 | 374.8 | |
| 1.89 | 5.66 | 1.68 | 5.04 | -17.26 | 262.87 | -53.29 | 112.68 | 0.8319 | 261.0 | 19.2 | |
| 0.00 | 1.29 | 0.00 | 1.13 | -16.82 | 263.05 | -53.11 | 112.21 | 0.8292 | -573.0 | -509.3 | |
| 0.00 | 0.69 | 0.00 | 0.60 | -16.63 | 263.07 | -53.09 | 112.00 | 0.8285 | -447.0 | -426.9 | |
| 0.00 | 0.94 | 0.00 | 0.85 | -17.62 | 262.56 | -53.60 | 113.00 | 0.8356 | 312.0 | 201.2 | |
| 0.00 | 0.77 | 0.00 | 0.68 | -16.89 | 262.81 | -53.35 | 112.23 | 0.8315 | -426.0 | -425.7 | |
| 0.00 | 1.03 | 0.00 | 0.95 | -18.56 | 261.59 | -54.57 | 113.80 | 0.8463 | -600.0 | -555.8 | |
| 3.86 | 6.18 | 3.50 | 5.59 | -17.45 | 262.05 | -54.11 | 112.65 | 0.8397 | -594.9 | -521.0 | |
| 0.00 | 1.37 | 0.00 | 1.27 | -18.35 | 261.48 | -54.68 | 113.52 | 0.8468 | -563.0 | -594.9 | |
| 9.61 | 24.36 | 8.33 | 21.15 | -14.06 | 263.04 | -53.12 | 108.96 | 0.8226 | -759.0 | -379.0 | |
| 0.00 | 0.94 | 0.00 | 0.89 | -18.06 | 260.74 | -55.42 | 112.97 | 0.8524 | -433.0 | -356.2 | |
| 0.00 | 0.94 | 0.00 | 0.87 | -16.85 | 261.12 | -55.04 | 111.70 | 0.8463 | -625.0 | -529.5 | |
| 1.63 | 1.89 | 1.48 | 1.71 | -15.72 | 261.54 | -54.62 | 110.51 | 0.8401 | -593.9 | -596.0 | |
| 1.97 | 7.12 | 1.80 | 6.52 | -15.45 | 261.28 | -54.88 | 110.12 | 0.8418 | -480.1 | -326.0 | |
| 1.46 | 2.23 | 1.32 | 2.03 | -15.13 | 261.34 | -54.82 | 109.78 | 0.8406 | -523.6 | -555.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
