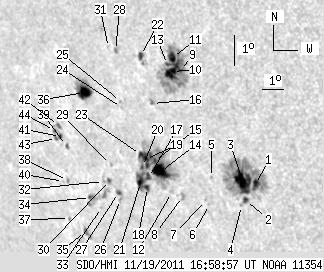

SDO HMI 2011-11-19 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.56 | 405.73 | 88.90 | 321.65 | -15.57 | 266.43 | -48.63 | 112.19 | 0.7824 | 82.0 | 2.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.97 | 108.75 | 3.70 | 81.45 | -16.68 | 270.16 | -44.90 | 114.95 | 0.7481 | 927.1 | 311.4 | |
| 2.83 | 3.17 | 2.13 | 2.39 | -17.20 | 269.56 | -45.50 | 115.35 | 0.7563 | 569.2 | 452.2 | |
| 22.30 | -1.00 | 16.72 | -1.00 | -16.63 | 269.65 | -45.41 | 114.68 | 0.7533 | 815.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -17.36 | 269.33 | -45.73 | 115.46 | 0.7593 | 341.0 | 278.6 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -16.52 | 268.25 | -46.81 | 113.98 | 0.7674 | 283.0 | 233.5 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -17.37 | 267.88 | -47.18 | 114.90 | 0.7741 | 391.0 | 422.4 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -17.25 | 267.73 | -47.32 | 114.70 | 0.7751 | 534.0 | 447.0 | |
| 0.00 | 2.92 | 0.00 | 2.32 | -17.16 | 266.70 | -48.36 | 114.19 | 0.7851 | 524.0 | 393.7 | |
| 1.03 | 87.48 | 0.78 | 67.03 | -13.22 | 267.80 | -47.26 | 109.67 | 0.7616 | 937.6 | 296.1 | |
| 12.09 | -9.00 | 9.27 | -9.00 | -13.26 | 267.42 | -47.64 | 109.60 | 0.7657 | 841.5 | 999999 | |
| 5.40 | -9.00 | 4.13 | -9.00 | -12.83 | 267.53 | -47.52 | 109.09 | 0.7633 | 744.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.24 | -17.05 | 266.22 | -48.84 | 113.89 | 0.7895 | -427.0 | -356.8 | |
| 1.89 | -9.00 | 1.45 | -9.00 | -13.05 | 267.25 | -47.81 | 109.28 | 0.7670 | 593.3 | 999999 | |
| 14.49 | 110.46 | 11.66 | 89.35 | -16.40 | 265.92 | -49.14 | 113.00 | 0.7904 | -909.0 | -369.3 | |
| 1.11 | -14.00 | 0.90 | -14.00 | -16.07 | 265.75 | -49.31 | 112.53 | 0.7911 | -931.1 | 999999 | |
| 1.11 | 2.49 | 0.88 | 1.96 | -14.29 | 266.22 | -48.84 | 110.49 | 0.7812 | 443.5 | 445.4 | |
| 2.49 | -14.00 | 2.03 | -14.00 | -16.61 | 265.28 | -49.78 | 113.03 | 0.7974 | -389.9 | 999999 | |
| 1.80 | -14.00 | 1.48 | -14.00 | -16.93 | 265.11 | -49.94 | 113.36 | 0.7999 | -538.6 | 999999 | |
| 5.49 | -14.00 | 4.46 | -14.00 | -16.05 | 265.33 | -49.73 | 112.36 | 0.7952 | -574.0 | 999999 | |
| 1.54 | -14.00 | 1.26 | -14.00 | -16.27 | 265.11 | -49.95 | 112.56 | 0.7980 | 626.6 | 999999 | |
| 3.09 | -14.00 | 2.55 | -14.00 | -16.78 | 264.83 | -50.23 | 113.08 | 0.8022 | 420.2 | 999999 | |
| 3.52 | 6.17 | 2.76 | 4.85 | -12.82 | 266.07 | -48.99 | 108.62 | 0.7787 | 482.1 | 448.9 | |
| 1.72 | -14.00 | 1.40 | -14.00 | -15.90 | 265.14 | -49.92 | 112.12 | 0.7966 | 301.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.63 | -14.46 | 264.70 | -50.36 | 110.23 | 0.7970 | 633.0 | 586.2 | |
| 0.00 | 1.03 | 0.00 | 0.84 | -14.27 | 264.71 | -50.35 | 110.01 | 0.7964 | 515.0 | 459.6 | |
| 0.00 | 1.80 | 0.00 | 1.53 | -17.36 | 263.62 | -51.43 | 113.37 | 0.8152 | 662.0 | 507.9 | |
| 1.63 | 2.92 | 1.38 | 2.48 | -17.14 | 263.61 | -51.45 | 113.10 | 0.8147 | 324.6 | 245.5 | |
| 0.00 | 2.23 | 0.00 | 1.79 | -12.70 | 264.92 | -50.13 | 108.14 | 0.7902 | 580.0 | 485.2 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -16.26 | 263.54 | -51.52 | 112.05 | 0.8130 | -667.0 | -525.8 | |
| 1.89 | 2.40 | 1.61 | 2.05 | -16.77 | 263.30 | -51.76 | 112.57 | 0.8166 | -759.5 | -646.3 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -12.62 | 264.61 | -50.45 | 107.95 | 0.7932 | 322.0 | 330.8 | |
| 0.00 | 0.77 | 0.00 | 0.66 | -16.81 | 262.98 | -52.08 | 112.52 | 0.8197 | -661.0 | -603.8 | |
| 0.00 | 0.94 | 0.00 | 0.82 | -17.64 | 262.54 | -52.52 | 113.36 | 0.8259 | 218.0 | 174.2 | |
| 1.80 | 14.75 | 1.59 | 12.88 | -17.34 | 262.10 | -52.96 | 112.87 | 0.8291 | -593.6 | -241.2 | |
| 1.29 | 4.80 | 1.16 | 4.33 | -18.44 | 261.36 | -53.70 | 113.92 | 0.8385 | -641.1 | -543.5 | |
| 10.89 | 27.70 | 9.21 | 23.40 | -14.05 | 263.01 | -52.05 | 109.25 | 0.8124 | -770.4 | -502.9 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -18.05 | 260.68 | -54.38 | 113.27 | 0.8434 | -332.0 | -257.7 | |
| 0.00 | 1.72 | 0.00 | 1.54 | -16.85 | 261.10 | -53.95 | 112.00 | 0.8368 | -634.0 | -542.0 | |
| 1.37 | 2.32 | 1.21 | 2.05 | -15.74 | 261.49 | -53.56 | 110.82 | 0.8306 | -496.1 | -503.0 | |
| 0.00 | 0.86 | 0.00 | 0.78 | -16.89 | 260.87 | -54.18 | 111.98 | 0.8389 | -406.0 | -330.2 | |
| 1.37 | 11.32 | 1.22 | 10.07 | -15.47 | 261.29 | -53.77 | 110.45 | 0.8319 | -593.2 | -367.5 | |
| 1.80 | -41.00 | 1.59 | -41.00 | -15.13 | 261.31 | -53.75 | 110.05 | 0.8309 | -519.5 | 999999 | |
| 1.54 | -41.00 | 1.38 | -41.00 | -15.54 | 261.05 | -54.01 | 110.46 | 0.8342 | -265.2 | 999999 | |
| 1.11 | -41.00 | 0.99 | -41.00 | -15.29 | 261.04 | -54.02 | 110.17 | 0.8337 | -281.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
