SDO HMI 2011-11-19 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.02 | 163.22 | 39.96 | 180.27 | 14.23 | 251.99 | -63.07 | 75.24 | 0.8955 | -384.8 | -102.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

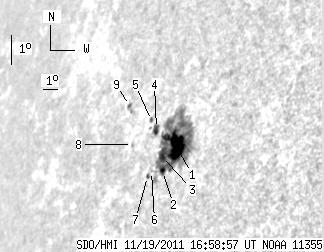

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.50 | 147.26 | 25.63 | 161.38 | 14.26 | 252.36 | -62.70 | 75.17 | 0.8928 | -706.3 | -130.9 | |
| 1.37 | -1.00 | 1.52 | -1.00 | 13.48 | 251.79 | -63.27 | 76.10 | 0.8966 | -320.8 | 999999 | |
| 3.86 | -1.00 | 4.32 | -1.00 | 13.93 | 251.57 | -63.49 | 75.61 | 0.8985 | 585.4 | 999999 | |
| 4.29 | 6.86 | 4.96 | 7.93 | 14.75 | 250.71 | -64.34 | 74.77 | 0.9052 | -308.9 | 130.3 | |
| 1.03 | 1.97 | 1.21 | 2.32 | 14.98 | 250.22 | -64.83 | 74.56 | 0.9088 | -99.3 | -47.3 | |
| 0.00 | 0.69 | 0.00 | 0.78 | 13.46 | 251.04 | -64.02 | 76.18 | 0.9021 | 395.0 | 371.2 | |
| 1.46 | 1.72 | 1.67 | 1.96 | 13.30 | 250.84 | -64.22 | 76.37 | 0.9035 | 358.6 | 466.7 | |
| 0.00 | 1.20 | 0.00 | 1.46 | 14.21 | 249.26 | -65.80 | 75.48 | 0.9151 | 279.0 | 310.6 | |
| 0.51 | 3.52 | 0.65 | 4.44 | 15.37 | 248.32 | -66.74 | 74.28 | 0.9219 | 455.2 | 368.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
