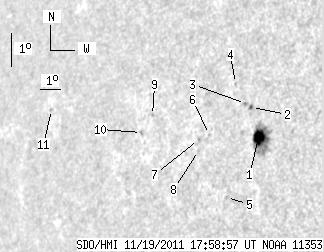

SDO HMI 2011-11-19 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.61 | 51.11 | 9.41 | 38.69 | 7.48 | 265.38 | -49.12 | 82.13 | 0.7586 | -649.1 | -458.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.32 | 39.36 | 8.44 | 29.26 | 7.42 | 266.21 | -48.29 | 82.16 | 0.7496 | -876.7 | -488.3 | |
| 1.29 | 2.14 | 0.97 | 1.62 | 8.30 | 265.76 | -48.75 | 81.02 | 0.7555 | 538.9 | 415.8 | |
| 0.00 | 1.54 | 0.00 | 1.17 | 8.41 | 265.46 | -49.04 | 80.91 | 0.7589 | -556.0 | -462.6 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 8.99 | 264.90 | -49.61 | 80.20 | 0.7657 | -566.0 | -515.3 | |
| 0.00 | 1.11 | 0.00 | 0.85 | 5.60 | 264.99 | -49.51 | 84.64 | 0.7626 | -657.0 | -604.3 | |
| 0.00 | 0.77 | 0.00 | 0.60 | 7.44 | 263.95 | -50.56 | 82.30 | 0.7750 | -592.0 | -436.9 | |
| 0.00 | 0.86 | 0.00 | 0.68 | 7.27 | 263.45 | -51.05 | 82.54 | 0.7804 | -701.0 | -534.7 | |
| 0.00 | 0.86 | 0.00 | 0.68 | 6.95 | 263.50 | -51.00 | 82.96 | 0.7796 | -545.0 | -509.8 | |
| 0.00 | 0.69 | 0.00 | 0.57 | 7.91 | 261.08 | -53.42 | 81.89 | 0.8057 | -579.0 | -522.5 | |
| 0.00 | 1.63 | 0.00 | 1.37 | 7.39 | 260.62 | -53.89 | 82.56 | 0.8102 | -452.0 | -340.0 | |
| 0.00 | 1.29 | 0.00 | 1.23 | 7.91 | 255.62 | -58.89 | 82.17 | 0.8581 | -425.0 | -320.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
