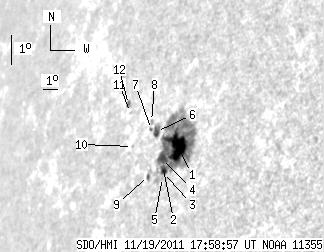

SDO HMI 2011-11-19 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.19 | 171.69 | 49.43 | 186.46 | 14.17 | 251.87 | -62.63 | 75.27 | 0.8921 | -257.4 | -128.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.44 | 151.45 | 29.44 | 163.06 | 14.28 | 252.33 | -62.17 | 75.11 | 0.8887 | -683.4 | -161.9 | |
| 2.49 | -1.00 | 2.71 | -1.00 | 13.59 | 251.73 | -62.77 | 75.93 | 0.8929 | 460.6 | 999999 | |
| 1.54 | -1.00 | 1.68 | -1.00 | 13.47 | 251.79 | -62.72 | 76.06 | 0.8924 | -316.4 | 999999 | |
| 7.03 | -1.00 | 7.73 | -1.00 | 13.89 | 251.52 | -62.98 | 75.62 | 0.8947 | 584.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.12 | 13.32 | 251.79 | -62.71 | 76.23 | 0.8923 | -346.0 | -303.0 | |
| 3.77 | 6.95 | 4.28 | 7.87 | 14.68 | 250.70 | -63.81 | 74.81 | 0.9013 | -239.2 | -152.1 | |
| 0.43 | 1.37 | 0.49 | 1.58 | 14.73 | 250.32 | -64.18 | 74.78 | 0.9041 | -65.6 | 14.8 | |
| 0.00 | 1.63 | 0.00 | 1.88 | 14.97 | 250.19 | -64.32 | 74.53 | 0.9052 | -177.0 | -108.5 | |
| 0.00 | 4.29 | 0.00 | 4.82 | 13.35 | 250.82 | -63.68 | 76.28 | 0.8996 | 339.0 | 405.2 | |
| 0.00 | 0.94 | 0.00 | 1.13 | 14.17 | 249.25 | -65.25 | 75.48 | 0.9113 | 363.0 | 335.2 | |
| 0.00 | 0.94 | 0.00 | 1.16 | 15.18 | 248.51 | -65.99 | 74.43 | 0.9169 | 416.0 | 388.4 | |
| 2.49 | 3.09 | 3.10 | 3.84 | 15.42 | 248.21 | -66.30 | 74.20 | 0.9190 | 369.1 | 448.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
