SDO HMI 2011-11-19 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.50 | 401.45 | 86.66 | 306.67 | -15.44 | 266.61 | -46.79 | 112.67 | 0.7631 | 61.5 | 38.3 | |
|
previous
or next observation for the same group /

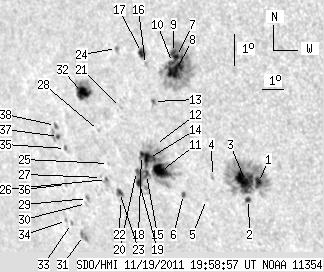

back to the solar disc SDO HMI 2011-11-19 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.57 | 106.52 | 4.03 | 77.52 | -16.63 | 270.16 | -43.24 | 115.60 | 0.7302 | 960.6 | 348.5 | |
| 2.14 | 2.92 | 1.57 | 2.14 | -17.18 | 269.57 | -43.83 | 116.04 | 0.7387 | 583.4 | 445.3 | |
| 21.70 | -1.00 | 15.82 | -1.00 | -16.62 | 269.61 | -43.79 | 115.34 | 0.7361 | 834.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.22 | -16.50 | 268.20 | -45.20 | 114.60 | 0.7505 | 11.0 | 145.1 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -17.24 | 267.71 | -45.69 | 115.32 | 0.7584 | 568.0 | 393.7 | |
| 2.14 | 2.40 | 1.65 | 1.85 | -17.11 | 266.72 | -46.68 | 114.77 | 0.7681 | 415.2 | 393.3 | |
| 2.14 | 100.94 | 1.59 | 74.79 | -12.81 | 267.61 | -45.79 | 109.63 | 0.7444 | 860.9 | 350.7 | |
| 12.95 | -7.00 | 9.62 | -7.00 | -13.25 | 267.47 | -45.93 | 110.15 | 0.7473 | 858.0 | 999999 | |
| 0.34 | -7.00 | 0.25 | -7.00 | -12.69 | 267.51 | -45.89 | 109.44 | 0.7451 | 747.0 | 999999 | |
| 1.03 | -7.00 | 0.76 | -7.00 | -13.00 | 267.39 | -46.01 | 109.81 | 0.7474 | 752.7 | 999999 | |
| 15.87 | 109.69 | 12.35 | 85.79 | -16.42 | 265.89 | -47.51 | 113.59 | 0.7741 | -929.4 | -377.0 | |
| 0.00 | 0.94 | 0.00 | 0.73 | -15.58 | 265.93 | -47.47 | 112.56 | 0.7710 | -484.0 | -451.3 | |
| 1.29 | 2.92 | 0.98 | 2.23 | -14.24 | 266.23 | -47.17 | 110.98 | 0.7637 | 484.7 | 239.1 | |
| 9.26 | -11.00 | 7.26 | -11.00 | -16.03 | 265.47 | -47.93 | 112.95 | 0.7772 | -704.9 | 999999 | |
| 3.00 | -11.00 | 2.37 | -11.00 | -16.53 | 265.21 | -48.19 | 113.48 | 0.7814 | -351.1 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.43 | -13.10 | 266.17 | -47.23 | 109.52 | 0.7609 | 559.0 | 457.3 | |
| 5.06 | 6.18 | 3.84 | 4.69 | -12.74 | 266.08 | -47.32 | 109.03 | 0.7608 | 570.3 | 423.5 | |
| 1.80 | -11.00 | 1.42 | -11.00 | -15.94 | 265.17 | -48.23 | 112.74 | 0.7799 | 432.9 | 999999 | |
| 3.60 | -11.00 | 2.88 | -11.00 | -16.83 | 264.78 | -48.62 | 113.69 | 0.7866 | 407.0 | 999999 | |
| 1.72 | -11.00 | 1.37 | -11.00 | -16.45 | 264.77 | -48.63 | 113.23 | 0.7855 | 402.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.95 | -14.47 | 264.65 | -48.75 | 110.75 | 0.7808 | 562.0 | 502.0 | |
| 0.00 | 0.60 | 0.00 | 0.49 | -17.40 | 263.67 | -49.73 | 113.99 | 0.7992 | 526.0 | 459.6 | |
| 2.92 | 4.80 | 2.38 | 3.93 | -17.15 | 263.72 | -49.68 | 113.70 | 0.7980 | 380.6 | 361.3 | |
| 1.11 | 2.06 | 0.87 | 1.60 | -12.65 | 264.96 | -48.43 | 108.57 | 0.7724 | 521.2 | 415.0 | |
| 0.00 | 1.11 | 0.00 | 0.91 | -16.25 | 263.51 | -49.89 | 112.54 | 0.7973 | -649.0 | -582.0 | |
| 0.60 | 4.72 | 0.49 | 3.89 | -16.75 | 263.23 | -50.17 | 113.06 | 0.8015 | -709.1 | -535.0 | |
| 0.00 | 0.43 | 0.00 | 0.35 | -16.70 | 263.01 | -50.39 | 112.92 | 0.8035 | -513.0 | -468.0 | |
| 0.00 | 1.03 | 0.00 | 0.84 | -15.23 | 263.37 | -50.03 | 111.26 | 0.7957 | 345.0 | 237.2 | |
| 1.29 | 2.57 | 1.09 | 2.18 | -17.39 | 262.05 | -51.35 | 113.43 | 0.8144 | -623.9 | -550.9 | |
| 0.00 | 1.97 | 0.00 | 1.68 | -17.55 | 261.94 | -51.46 | 113.58 | 0.8160 | -454.0 | -399.7 | |
| 0.00 | 4.63 | 0.00 | 4.03 | -18.58 | 261.36 | -52.04 | 114.60 | 0.8242 | -701.0 | -597.6 | |
| 11.49 | 24.61 | 9.37 | 20.04 | -14.06 | 262.97 | -50.43 | 109.72 | 0.7966 | -765.4 | -559.2 | |
| 1.11 | 1.72 | 0.98 | 1.50 | -18.21 | 260.90 | -52.50 | 114.03 | 0.8273 | -461.4 | -456.6 | |
| 0.00 | 1.11 | 0.00 | 0.98 | -18.13 | 260.68 | -52.72 | 113.85 | 0.8290 | -295.0 | -268.7 | |
| 1.20 | 1.89 | 1.02 | 1.60 | -15.84 | 261.54 | -51.86 | 111.44 | 0.8151 | -542.5 | -558.1 | |
| 0.00 | 1.97 | 0.00 | 1.71 | -16.98 | 261.11 | -52.29 | 112.65 | 0.8221 | -614.0 | -534.8 | |
| 1.37 | 6.00 | 1.17 | 5.14 | -15.48 | 261.32 | -52.08 | 110.94 | 0.8162 | -607.0 | -315.7 | |
| 1.80 | 2.06 | 1.53 | 1.75 | -15.14 | 261.29 | -52.11 | 110.52 | 0.8157 | -470.3 | -333.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
