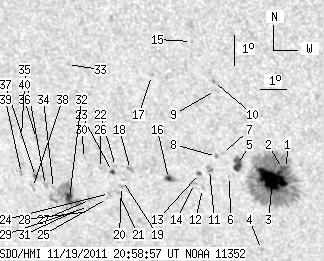

SDO HMI 2011-11-19 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.05 | 301.36 | 38.00 | 192.17 | -23.99 | 283.47 | -29.38 | 134.58 | 0.6296 | 345.1 | 96.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-19 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 197.87 | 0.42 | 123.24 | -23.59 | 286.24 | -26.61 | 136.55 | 0.5991 | 923.0 | 357.3 | |
| 2.06 | -1.00 | 1.27 | -1.00 | -23.59 | 286.10 | -26.75 | 136.41 | 0.6005 | 1103.3 | 999999 | |
| 35.94 | -1.00 | 22.38 | -1.00 | -23.96 | 285.65 | -27.20 | 136.42 | 0.6082 | 1185.4 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -26.32 | 284.66 | -28.19 | 138.30 | 0.6388 | 670.0 | 454.6 | |
| 8.49 | 9.69 | 5.32 | 6.08 | -23.49 | 284.48 | -28.37 | 134.70 | 0.6154 | 756.8 | 624.9 | |
| 0.00 | 0.34 | 0.00 | 0.22 | -23.90 | 284.08 | -28.76 | 134.84 | 0.6227 | 431.0 | 431.5 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -23.14 | 284.01 | -28.84 | 133.81 | 0.6170 | 717.0 | 516.0 | |
| 0.00 | 1.46 | 0.00 | 0.92 | -23.25 | 283.76 | -29.09 | 133.72 | 0.6203 | 669.0 | 527.4 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -21.09 | 284.21 | -28.64 | 131.31 | 0.5975 | 759.0 | 549.9 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -20.80 | 284.20 | -28.65 | 130.90 | 0.5952 | 700.0 | 553.5 | |
| 0.00 | 3.77 | 0.00 | 2.39 | -23.68 | 283.39 | -29.45 | 133.93 | 0.6276 | 854.0 | 651.8 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -24.32 | 282.97 | -29.88 | 134.34 | 0.6371 | 626.0 | 519.1 | |
| 1.46 | 1.97 | 0.93 | 1.26 | -23.82 | 282.99 | -29.86 | 133.74 | 0.6328 | 481.2 | 298.5 | |
| 0.00 | 1.63 | 0.00 | 1.05 | -24.16 | 282.71 | -30.14 | 133.92 | 0.6382 | 444.0 | 302.1 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -19.53 | 283.66 | -29.18 | 128.66 | 0.5907 | 667.0 | 475.4 | |
| 2.23 | 5.40 | 1.44 | 3.50 | -24.01 | 281.77 | -31.08 | 132.92 | 0.6463 | -759.6 | -587.6 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -20.66 | 281.97 | -30.88 | 128.73 | 0.6180 | 825.0 | 620.5 | |
| 0.00 | 2.92 | 0.00 | 1.91 | -23.75 | 280.39 | -32.46 | 131.45 | 0.6577 | -839.0 | -655.7 | |
| 0.00 | 0.51 | 0.00 | 0.34 | -24.12 | 279.98 | -32.87 | 131.59 | 0.6646 | -842.0 | -712.5 | |
| 0.00 | 2.06 | 0.00 | 1.36 | -24.32 | 279.88 | -32.97 | 131.76 | 0.6671 | -753.0 | -639.7 | |
| 0.00 | 0.51 | 0.00 | 0.34 | -24.56 | 279.69 | -33.16 | 131.90 | 0.6707 | -656.0 | -549.3 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -23.66 | 279.84 | -33.01 | 130.91 | 0.6626 | -617.0 | -417.4 | |
| 1.63 | 2.66 | 1.08 | 1.76 | -23.83 | 279.67 | -33.17 | 130.99 | 0.6654 | 398.1 | 251.4 | |
| 0.00 | 1.46 | 0.00 | 0.98 | -24.57 | 279.34 | -33.51 | 131.63 | 0.6742 | -639.0 | -591.2 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -24.74 | 279.21 | -33.64 | 131.74 | 0.6767 | -660.0 | -542.6 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -23.74 | 279.23 | -33.62 | 130.54 | 0.6691 | 268.0 | 236.6 | |
| 0.00 | 2.06 | 0.00 | 1.39 | -24.79 | 278.52 | -34.33 | 131.28 | 0.6836 | -827.0 | -706.4 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -25.19 | 278.35 | -34.50 | 131.64 | 0.6881 | -593.0 | -526.9 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -25.02 | 278.37 | -34.48 | 131.45 | 0.6868 | -643.0 | -558.1 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -23.43 | 278.70 | -34.15 | 129.74 | 0.6721 | 645.0 | 447.3 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -25.13 | 277.93 | -34.92 | 131.26 | 0.6917 | -501.0 | -437.1 | |
| 6.09 | 35.94 | 4.16 | 24.58 | -24.77 | 277.69 | -35.16 | 130.65 | 0.6915 | -941.5 | -652.6 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -20.37 | 278.88 | -33.97 | 125.93 | 0.6492 | -693.0 | -542.5 | |
| 0.00 | 1.37 | 0.00 | 0.94 | -24.45 | 277.15 | -35.69 | 129.88 | 0.6945 | -788.0 | -644.6 | |
| 0.00 | 2.66 | 0.00 | 1.83 | -24.36 | 276.86 | -35.99 | 129.56 | 0.6967 | -699.0 | -595.3 | |
| 0.00 | 1.97 | 0.00 | 1.34 | -22.81 | 276.99 | -35.85 | 127.74 | 0.6851 | -747.0 | -642.1 | |
| 1.46 | 4.80 | 1.00 | 3.30 | -24.07 | 276.55 | -36.29 | 129.00 | 0.6977 | -716.4 | -646.2 | |
| 0.00 | 2.40 | 0.00 | 1.67 | -24.44 | 276.31 | -36.54 | 129.28 | 0.7025 | -664.0 | -428.1 | |
| 0.00 | 2.06 | 0.00 | 1.43 | -23.99 | 276.01 | -36.83 | 128.52 | 0.7024 | -767.0 | -591.2 | |
| 0.00 | 1.29 | 0.00 | 0.88 | -22.76 | 276.41 | -36.44 | 127.28 | 0.6906 | -610.0 | -480.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
