SDO HMI 2011-11-19 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.76 | 189.72 | 38.99 | 191.49 | 14.23 | 252.24 | -60.06 | 74.94 | 0.8717 | -566.5 | -116.3 | |
|
previous
or next observation for the same group /

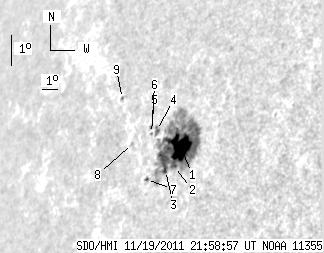

back to the solar disc SDO HMI 2011-11-19 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.42 | 179.18 | 32.41 | 180.16 | 14.26 | 252.41 | -59.89 | 74.89 | 0.8704 | -756.7 | -129.8 | |
| 0.77 | -1.00 | 0.77 | -1.00 | 13.65 | 252.30 | -59.99 | 75.60 | 0.8708 | 488.8 | 999999 | |
| 1.54 | -1.00 | 1.57 | -1.00 | 13.51 | 251.81 | -60.49 | 75.81 | 0.8748 | -218.4 | 999999 | |
| 3.17 | 3.86 | 3.34 | 4.06 | 14.69 | 250.69 | -61.60 | 74.58 | 0.8846 | -301.2 | -311.6 | |
| 0.00 | 1.63 | 0.00 | 1.74 | 14.77 | 250.33 | -61.97 | 74.53 | 0.8875 | -68.0 | -36.3 | |
| 0.00 | 0.94 | 0.00 | 1.00 | 14.59 | 250.42 | -61.88 | 74.72 | 0.8867 | -153.0 | -95.6 | |
| 0.86 | 1.54 | 0.90 | 1.62 | 13.20 | 250.73 | -61.56 | 76.26 | 0.8833 | 510.6 | 542.1 | |
| 0.00 | 1.20 | 0.00 | 1.32 | 14.25 | 249.32 | -62.98 | 75.21 | 0.8949 | 410.0 | 410.4 | |
| 0.00 | 1.37 | 0.00 | 1.59 | 15.57 | 247.90 | -64.40 | 73.86 | 0.9061 | 497.0 | 377.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
