SDO HMI 2011-11-20 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.45 | 308.97 | 36.71 | 192.15 | -24.08 | 283.32 | -26.77 | 137.17 | 0.6050 | 410.8 | 105.8 | |
|
previous
or next observation for the same group /

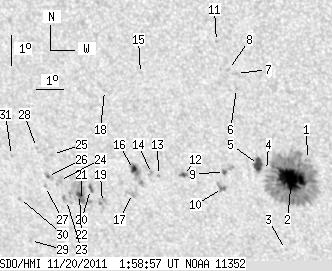

back to the solar disc SDO HMI 2011-11-20 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.19 | -23.38 | 286.27 | -23.82 | 139.25 | 0.5701 | 758.0 | 644.6 | |
| 35.78 | 196.06 | 21.77 | 119.35 | -24.02 | 285.58 | -24.51 | 139.27 | 0.5830 | 1237.2 | 386.0 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -26.40 | 284.84 | -25.25 | 141.30 | 0.6133 | 606.0 | 575.4 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -23.77 | 284.74 | -25.35 | 138.05 | 0.5884 | 182.0 | 157.9 | |
| 8.32 | 9.70 | 5.09 | 5.93 | -23.58 | 284.49 | -25.60 | 137.54 | 0.5889 | 761.5 | 353.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -21.11 | 284.20 | -25.89 | 134.01 | 0.5686 | 742.0 | 631.0 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -20.62 | 284.29 | -25.80 | 133.44 | 0.5632 | 760.0 | 551.8 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -20.50 | 284.03 | -26.06 | 133.00 | 0.5648 | 704.0 | 501.4 | |
| 1.80 | 6.01 | 1.12 | 3.72 | -23.83 | 283.21 | -26.88 | 136.54 | 0.6036 | 669.9 | 582.1 | |
| 2.66 | 5.06 | 1.66 | 3.16 | -24.40 | 283.00 | -27.09 | 137.04 | 0.6108 | 637.6 | 482.0 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -19.61 | 283.77 | -26.32 | 131.47 | 0.5597 | 680.0 | 547.5 | |
| 2.23 | 3.26 | 1.40 | 2.05 | -23.99 | 281.67 | -28.42 | 135.24 | 0.6199 | -813.5 | -763.0 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -24.01 | 280.73 | -29.36 | 134.40 | 0.6291 | -808.0 | -694.3 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -23.95 | 280.49 | -29.60 | 134.11 | 0.6310 | -866.0 | -729.2 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -20.69 | 280.84 | -29.25 | 130.17 | 0.6004 | 521.0 | 455.7 | |
| 2.57 | 14.59 | 1.65 | 9.35 | -23.83 | 279.84 | -30.25 | 133.39 | 0.6363 | 564.5 | -200.8 | |
| 0.00 | 6.61 | 0.00 | 4.27 | -24.63 | 279.60 | -30.50 | 134.16 | 0.6453 | -834.0 | -603.6 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -21.27 | 279.39 | -30.70 | 129.68 | 0.6204 | -692.0 | -543.5 | |
| 0.00 | 6.61 | 0.00 | 4.34 | -24.96 | 278.36 | -31.73 | 133.51 | 0.6598 | -794.0 | -715.8 | |
| 2.23 | 3.09 | 1.47 | 2.03 | -24.54 | 278.02 | -32.07 | 132.71 | 0.6597 | -857.6 | -800.0 | |
| 0.43 | 26.51 | 0.28 | 17.54 | -24.91 | 277.56 | -32.53 | 132.80 | 0.6670 | -782.8 | -640.0 | |
| 2.66 | -21.00 | 1.76 | -21.00 | -24.71 | 277.54 | -32.55 | 132.54 | 0.6657 | -1002.3 | 999999 | |
| 0.00 | 4.55 | 0.00 | 3.04 | -24.93 | 276.97 | -33.12 | 132.35 | 0.6728 | -646.0 | -544.8 | |
| 0.00 | 4.89 | 0.00 | 3.25 | -24.26 | 276.90 | -33.19 | 131.48 | 0.6685 | -769.0 | -549.8 | |
| 0.00 | 1.37 | 0.00 | 0.91 | -23.41 | 276.88 | -33.22 | 130.40 | 0.6624 | -727.0 | -551.1 | |
| 0.77 | 4.03 | 0.51 | 2.69 | -24.14 | 276.47 | -33.62 | 131.00 | 0.6719 | -684.9 | -639.7 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -24.48 | 276.29 | -33.80 | 131.27 | 0.6760 | -468.0 | -329.3 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -23.19 | 276.32 | -33.77 | 129.70 | 0.6665 | -662.0 | -553.2 | |
| 0.00 | 1.29 | 0.00 | 0.89 | -26.31 | 275.09 | -35.00 | 132.57 | 0.7006 | -554.0 | -375.9 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -24.90 | 275.12 | -34.97 | 130.92 | 0.6903 | -539.0 | -427.6 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -23.48 | 275.25 | -34.84 | 129.27 | 0.6791 | -509.0 | -450.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
