SDO HMI 2011-11-20 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.53 | 391.43 | 67.79 | 282.20 | -15.37 | 266.44 | -43.65 | 113.78 | 0.7293 | -7.8 | 39.6 | |
|
previous
or next observation for the same group /

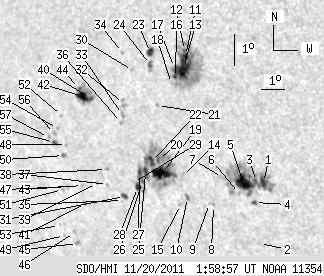

back to the solar disc SDO HMI 2011-11-20 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.46 | 84.52 | 3.06 | 58.52 | -16.54 | 270.06 | -40.03 | 116.99 | 0.6943 | 975.3 | 436.5 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -18.48 | 269.37 | -40.72 | 119.19 | 0.7111 | 536.0 | 444.8 | |
| 0.94 | -1.00 | 0.65 | -1.00 | -16.52 | 269.78 | -40.31 | 116.81 | 0.6973 | 731.2 | 999999 | |
| 1.80 | 2.40 | 1.25 | 1.67 | -17.19 | 269.52 | -40.57 | 117.57 | 0.7032 | 580.8 | 484.3 | |
| 14.42 | -1.00 | 10.02 | -1.00 | -16.57 | 269.24 | -40.86 | 116.60 | 0.7036 | 834.9 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.02 | -16.92 | 268.98 | -41.11 | 116.94 | 0.7080 | -90.0 | -82.8 | |
| 0.00 | 2.92 | 0.00 | 2.05 | -16.43 | 268.40 | -41.69 | 116.02 | 0.7122 | -94.0 | -127.7 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -17.33 | 267.78 | -42.31 | 116.90 | 0.7229 | 640.0 | 494.4 | |
| 0.00 | 1.03 | 0.00 | 0.74 | -17.27 | 267.63 | -42.46 | 116.75 | 0.7243 | 514.0 | 467.6 | |
| 1.46 | 2.49 | 1.06 | 1.81 | -17.11 | 266.74 | -43.35 | 116.13 | 0.7331 | 447.7 | 383.8 | |
| 1.72 | 92.93 | 1.19 | 64.77 | -12.68 | 267.76 | -42.33 | 110.70 | 0.7047 | 936.5 | 447.5 | |
| 1.12 | -11.00 | 0.78 | -11.00 | -12.53 | 267.75 | -42.34 | 110.49 | 0.7043 | 549.1 | 999999 | |
| 11.84 | -11.00 | 8.28 | -11.00 | -13.05 | 267.60 | -42.49 | 111.15 | 0.7079 | 920.3 | 999999 | |
| 0.00 | 2.92 | 0.00 | 2.11 | -16.45 | 266.72 | -43.37 | 115.27 | 0.7307 | -659.0 | -658.8 | |
| 0.00 | 1.37 | 0.00 | 1.00 | -17.34 | 266.37 | -43.72 | 116.26 | 0.7380 | 425.0 | 344.0 | |
| 0.77 | -11.00 | 0.54 | -11.00 | -13.37 | 267.20 | -42.90 | 111.41 | 0.7137 | 473.3 | 999999 | |
| 0.86 | -11.00 | 0.60 | -11.00 | -13.06 | 267.22 | -42.87 | 111.01 | 0.7123 | 560.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -13.56 | 266.99 | -43.11 | 111.59 | 0.7167 | -178.0 | -144.6 | |
| 13.90 | 121.16 | 10.20 | 89.13 | -16.38 | 265.83 | -44.26 | 114.80 | 0.7399 | -950.3 | -402.9 | |
| 1.89 | -19.00 | 1.38 | -19.00 | -15.95 | 265.83 | -44.26 | 114.24 | 0.7383 | -900.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.93 | -14.26 | 266.23 | -43.86 | 112.21 | 0.7278 | 485.0 | 385.2 | |
| 4.81 | -19.00 | 3.54 | -19.00 | -16.02 | 265.50 | -44.59 | 114.20 | 0.7421 | -794.7 | 999999 | |
| 4.29 | 5.15 | 3.06 | 3.67 | -12.63 | 266.31 | -43.78 | 110.08 | 0.7212 | 633.3 | 447.4 | |
| 1.37 | 5.06 | 0.98 | 3.62 | -13.00 | 266.23 | -43.86 | 110.54 | 0.7234 | 647.1 | 444.3 | |
| 4.72 | -19.00 | 3.50 | -19.00 | -16.37 | 265.14 | -44.95 | 114.50 | 0.7473 | -496.8 | 999999 | |
| 1.20 | -19.00 | 0.90 | -19.00 | -16.66 | 264.92 | -45.17 | 114.78 | 0.7506 | -366.1 | 999999 | |
| 3.09 | -19.00 | 2.30 | -19.00 | -16.38 | 264.87 | -45.22 | 114.40 | 0.7501 | 420.3 | 999999 | |
| 3.52 | -19.00 | 2.64 | -19.00 | -16.86 | 264.64 | -45.45 | 114.91 | 0.7543 | 408.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.16 | -16.70 | 264.51 | -45.58 | 114.66 | 0.7551 | 386.0 | 262.8 | |
| 0.00 | 1.20 | 0.00 | 0.87 | -13.21 | 265.41 | -44.68 | 110.51 | 0.7332 | -596.0 | -478.4 | |
| 2.49 | 3.60 | 1.90 | 2.75 | -17.16 | 263.97 | -46.13 | 115.01 | 0.7624 | 597.4 | 408.3 | |
| 0.00 | 4.38 | 0.00 | 3.23 | -14.24 | 264.77 | -45.32 | 111.62 | 0.7437 | 482.0 | 507.2 | |
| 0.00 | 2.40 | 0.00 | 1.78 | -14.59 | 264.63 | -45.46 | 112.02 | 0.7463 | 636.0 | 497.1 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -12.66 | 265.11 | -44.98 | 109.69 | 0.7349 | 487.0 | 463.9 | |
| 0.00 | 1.37 | 0.00 | 1.05 | -17.29 | 263.83 | -46.26 | 115.12 | 0.7642 | 253.0 | 361.2 | |
| 0.00 | 1.80 | 0.00 | 1.34 | -14.84 | 264.52 | -45.57 | 112.30 | 0.7484 | 561.0 | 403.0 | |
| 0.00 | 0.94 | 0.00 | 0.73 | -16.80 | 263.31 | -46.78 | 114.31 | 0.7678 | -653.0 | -576.5 | |
| 0.00 | 1.37 | 0.00 | 1.05 | -16.33 | 263.42 | -46.67 | 113.77 | 0.7651 | -676.0 | -548.6 | |
| 0.00 | 1.12 | 0.00 | 0.87 | -16.79 | 262.82 | -47.27 | 114.10 | 0.7728 | -627.0 | -591.2 | |
| 0.34 | 22.57 | 0.26 | 17.15 | -14.13 | 263.34 | -46.75 | 110.96 | 0.7588 | -914.0 | -587.8 | |
| 1.03 | 1.80 | 0.82 | 1.43 | -17.44 | 262.09 | -48.00 | 114.63 | 0.7823 | -554.5 | -597.8 | |
| 7.12 | -40.00 | 5.43 | -40.00 | -14.08 | 262.99 | -47.10 | 110.78 | 0.7623 | -830.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.01 | -16.87 | 262.14 | -47.95 | 113.96 | 0.7799 | -635.0 | -555.7 | |
| 0.94 | -40.00 | 0.72 | -40.00 | -13.84 | 262.92 | -47.17 | 110.45 | 0.7623 | -619.0 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.18 | -18.72 | 261.23 | -48.86 | 115.86 | 0.7949 | -751.0 | -642.3 | |
| 0.00 | 1.03 | 0.00 | 0.83 | -18.38 | 261.22 | -48.87 | 115.44 | 0.7938 | -709.0 | -615.2 | |
| 0.00 | 1.37 | 0.00 | 1.10 | -16.92 | 261.42 | -48.67 | 113.76 | 0.7872 | -594.0 | -503.1 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -15.60 | 261.81 | -48.28 | 112.28 | 0.7792 | -655.0 | -590.9 | |
| 0.00 | 0.94 | 0.00 | 0.77 | -18.49 | 260.70 | -49.39 | 115.38 | 0.7992 | -465.0 | -418.1 | |
| 1.46 | 2.15 | 1.16 | 1.70 | -15.95 | 261.56 | -48.53 | 112.62 | 0.7828 | -650.4 | -682.9 | |
| 0.00 | 1.29 | 0.00 | 1.04 | -17.03 | 261.15 | -48.94 | 113.79 | 0.7902 | -703.0 | -571.7 | |
| 0.00 | 1.20 | 0.00 | 0.94 | -14.70 | 261.86 | -48.23 | 111.18 | 0.7760 | -569.0 | -483.4 | |
| 0.00 | 0.77 | 0.00 | 0.63 | -18.18 | 260.58 | -49.51 | 114.97 | 0.7993 | -387.0 | -280.4 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -15.11 | 261.55 | -48.54 | 111.58 | 0.7804 | -610.0 | -548.4 | |
| 1.97 | 2.40 | 1.57 | 1.91 | -15.56 | 261.27 | -48.82 | 112.03 | 0.7845 | -550.2 | -439.2 | |
| 0.00 | 1.97 | 0.00 | 1.56 | -15.27 | 261.36 | -48.73 | 111.72 | 0.7828 | -689.0 | -495.1 | |
| 0.00 | 1.54 | 0.00 | 1.23 | -15.41 | 261.03 | -49.06 | 111.77 | 0.7865 | -377.0 | -297.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
