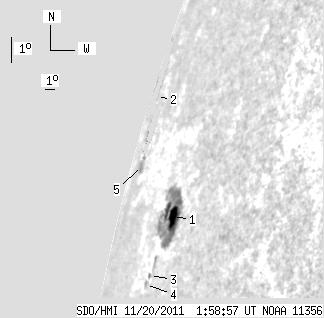

SDO HMI 2011-11-20 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.24 | 141.75 | 27.69 | 551.08 | 16.21 | 227.34 | -82.75 | 73.92 | 0.9890 | -353.4 | -18.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.21 | 82.20 | 21.20 | 175.73 | 14.11 | 233.68 | -76.42 | 76.03 | 0.9725 | -519.6 | -120.9 | |
| 1.03 | 50.20 | 6.49 | 339.98 | 17.45 | 224.06 | -86.03 | 72.67 | 0.9973 | -56.5 | 36.1 | |
| 0.00 | 1.46 | 0.00 | 3.33 | 12.27 | 232.40 | -77.69 | 77.94 | 0.9772 | 172.0 | 206.0 | |
| 0.00 | 1.80 | 0.00 | 4.20 | 11.98 | 232.10 | -77.99 | 78.24 | 0.9783 | 476.0 | 395.4 | |
| 0.00 | 6.09 | 0.00 | 27.84 | 15.39 | 226.12 | -83.97 | 74.77 | 0.9942 | -112.0 | -191.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
