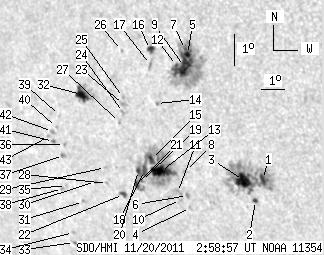

SDO HMI 2011-11-20 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.56 | 376.82 | 59.93 | 268.25 | -15.30 | 266.65 | -42.89 | 114.00 | 0.7206 | 7.9 | 79.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.46 | 96.19 | 3.04 | 66.05 | -16.50 | 270.00 | -39.54 | 117.18 | 0.6885 | 947.3 | 432.6 | |
| 1.80 | 2.23 | 1.24 | 1.54 | -17.17 | 269.55 | -39.99 | 117.84 | 0.6968 | 554.6 | 460.0 | |
| 12.79 | -1.00 | 8.81 | -1.00 | -16.56 | 269.22 | -40.32 | 116.85 | 0.6976 | 876.0 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.48 | -17.47 | 266.77 | -42.77 | 116.86 | 0.7284 | 524.0 | 414.1 | |
| 2.40 | 98.60 | 1.66 | 68.17 | -12.70 | 267.82 | -41.72 | 110.97 | 0.6976 | 1040.9 | 407.8 | |
| 0.00 | 1.97 | 0.00 | 1.42 | -17.10 | 266.75 | -42.79 | 116.36 | 0.7270 | 727.0 | 537.1 | |
| 0.94 | -5.00 | 0.65 | -5.00 | -12.55 | 267.77 | -41.77 | 110.74 | 0.6977 | 661.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.16 | -16.34 | 266.88 | -42.67 | 115.44 | 0.7225 | -645.0 | -563.0 | |
| 11.93 | -5.00 | 8.26 | -5.00 | -13.07 | 267.62 | -41.92 | 111.40 | 0.7013 | 911.4 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.06 | -17.23 | 266.41 | -43.13 | 116.38 | 0.7312 | 439.0 | 366.4 | |
| 0.00 | 4.46 | 0.00 | 3.23 | -17.01 | 266.35 | -43.19 | 116.07 | 0.7310 | -432.0 | -165.1 | |
| 1.03 | -5.00 | 0.72 | -5.00 | -13.05 | 267.30 | -42.25 | 111.23 | 0.7050 | 554.3 | 999999 | |
| 15.10 | 102.29 | 10.98 | 74.60 | -16.37 | 265.80 | -43.74 | 115.01 | 0.7343 | -945.2 | -436.5 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -14.25 | 266.19 | -43.35 | 112.40 | 0.7220 | 513.0 | 396.0 | |
| 3.78 | -13.00 | 2.75 | -13.00 | -16.01 | 265.52 | -44.02 | 114.41 | 0.7359 | -788.9 | 999999 | |
| 4.03 | 5.06 | 2.85 | 3.57 | -12.59 | 266.31 | -43.23 | 110.22 | 0.7147 | 649.3 | 517.2 | |
| 0.00 | 3.95 | 0.00 | 2.80 | -13.05 | 266.21 | -43.33 | 110.81 | 0.7174 | 735.0 | 577.3 | |
| 5.23 | -13.00 | 3.85 | -13.00 | -16.36 | 265.12 | -44.42 | 114.70 | 0.7416 | -434.8 | 999999 | |
| 0.94 | -13.00 | 0.70 | -13.00 | -16.68 | 264.89 | -44.65 | 115.01 | 0.7452 | -457.4 | 999999 | |
| 1.97 | -13.00 | 1.46 | -13.00 | -16.37 | 264.85 | -44.69 | 114.60 | 0.7444 | 354.8 | 999999 | |
| 3.09 | -13.00 | 2.30 | -13.00 | -16.81 | 264.63 | -44.91 | 115.07 | 0.7484 | 389.7 | 999999 | |
| 3.00 | 4.20 | 2.27 | 3.17 | -17.15 | 263.96 | -45.59 | 115.21 | 0.7567 | 591.5 | 395.0 | |
| 0.00 | 3.18 | 0.00 | 2.32 | -14.32 | 264.76 | -44.78 | 111.93 | 0.7381 | 641.0 | 484.3 | |
| 0.00 | 2.32 | 0.00 | 1.70 | -14.57 | 264.70 | -44.84 | 112.22 | 0.7396 | 580.0 | 498.0 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -14.11 | 264.82 | -44.72 | 111.66 | 0.7367 | 725.0 | 595.7 | |
| 0.00 | 1.12 | 0.00 | 0.80 | -12.65 | 265.07 | -44.47 | 109.85 | 0.7290 | 558.0 | 386.2 | |
| 0.00 | 1.37 | 0.00 | 1.01 | -14.89 | 264.44 | -45.10 | 112.53 | 0.7435 | 513.0 | 424.7 | |
| 0.00 | 1.12 | 0.00 | 0.85 | -16.82 | 263.34 | -46.20 | 114.56 | 0.7619 | -650.0 | -544.8 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -16.32 | 263.41 | -46.13 | 113.95 | 0.7594 | -683.0 | -580.7 | |
| 0.00 | 1.12 | 0.00 | 0.86 | -16.77 | 262.82 | -46.72 | 114.29 | 0.7671 | -686.0 | -598.6 | |
| 0.00 | 1.46 | 0.00 | 1.14 | -17.42 | 262.05 | -47.49 | 114.80 | 0.7771 | -705.0 | -603.6 | |
| 10.04 | 22.74 | 7.57 | 17.10 | -14.07 | 262.98 | -46.56 | 110.94 | 0.7565 | -766.7 | -593.6 | |
| 0.34 | 0.94 | 0.28 | 0.76 | -18.74 | 261.15 | -48.39 | 116.06 | 0.7905 | -611.8 | -612.6 | |
| 0.00 | 1.03 | 0.00 | 0.83 | -18.43 | 261.22 | -48.32 | 115.70 | 0.7887 | -789.0 | -676.2 | |
| 0.00 | 1.12 | 0.00 | 0.88 | -16.94 | 261.43 | -48.11 | 113.98 | 0.7817 | -465.0 | -412.5 | |
| 0.00 | 1.29 | 0.00 | 1.00 | -15.65 | 261.76 | -47.79 | 112.51 | 0.7743 | -708.0 | -582.8 | |
| 0.00 | 2.32 | 0.00 | 1.82 | -16.00 | 261.60 | -47.94 | 112.88 | 0.7769 | -765.0 | -648.8 | |
| 0.00 | 1.37 | 0.00 | 1.09 | -17.04 | 261.21 | -48.33 | 114.02 | 0.7842 | -706.0 | -534.2 | |
| 0.00 | 1.12 | 0.00 | 0.86 | -14.75 | 261.80 | -47.74 | 111.40 | 0.7710 | -712.0 | -525.4 | |
| 0.00 | 1.12 | 0.00 | 0.87 | -15.13 | 261.55 | -47.99 | 111.79 | 0.7748 | -640.0 | -520.3 | |
| 0.69 | 1.54 | 0.54 | 1.21 | -15.57 | 261.27 | -48.27 | 112.24 | 0.7790 | -641.5 | -562.7 | |
| 0.00 | 2.15 | 0.00 | 1.68 | -15.26 | 261.32 | -48.22 | 111.87 | 0.7775 | -666.0 | -518.0 | |
| 0.00 | 1.29 | 0.00 | 1.02 | -15.42 | 261.09 | -48.45 | 111.99 | 0.7804 | -525.0 | -391.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
