SDO HMI 2011-11-20 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.82 | 52.27 | 8.73 | 27.09 | 18.05 | 315.72 | 6.18 | 340.57 | 0.2952 | -515.3 | -88.7 | |
|
previous
or next observation for the same group /

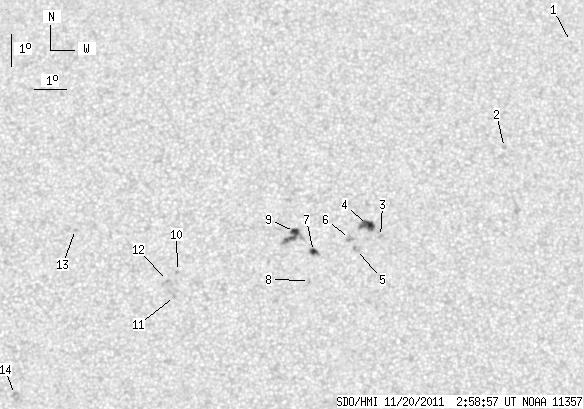

back to the solar disc SDO HMI 2011-11-20 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.43 | 24.27 | 324.68 | 15.13 | 327.63 | 0.4464 | -718.0 | -521.4 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 20.94 | 322.15 | 12.61 | 327.55 | 0.3816 | 862.0 | 528.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 18.21 | 318.00 | 8.46 | 333.03 | 0.3095 | -854.0 | -731.7 | |
| 9.53 | 10.64 | 4.96 | 5.54 | 18.55 | 317.61 | 8.07 | 334.61 | 0.3116 | -980.6 | -913.7 | |
| 0.00 | 3.09 | 0.00 | 1.60 | 17.81 | 317.23 | 7.69 | 334.57 | 0.2979 | -873.0 | -798.3 | |
| 0.00 | 3.86 | 0.00 | 2.01 | 18.15 | 317.02 | 7.48 | 335.66 | 0.3016 | -920.0 | -751.1 | |
| 3.00 | 6.69 | 1.55 | 3.46 | 17.75 | 315.88 | 6.34 | 338.50 | 0.2881 | -907.5 | -678.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 16.87 | 315.72 | 6.18 | 337.75 | 0.2733 | -809.0 | -630.3 | |
| 4.29 | 14.85 | 2.22 | 7.68 | 18.37 | 315.30 | 5.76 | 341.03 | 0.2944 | 840.9 | 844.9 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 17.15 | 311.63 | 2.09 | 352.27 | 0.2600 | -801.0 | -697.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 16.39 | 311.53 | 1.99 | 352.22 | 0.2469 | -798.0 | -609.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.88 | 311.32 | 1.77 | 353.29 | 0.2547 | -853.0 | -734.5 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 18.45 | 308.46 | -1.08 | 3.68 | 0.2800 | -846.0 | -623.0 | |
| 0.00 | 2.75 | 0.00 | 1.39 | 13.41 | 306.63 | -2.91 | 14.38 | 0.2000 | 846.0 | 645.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
