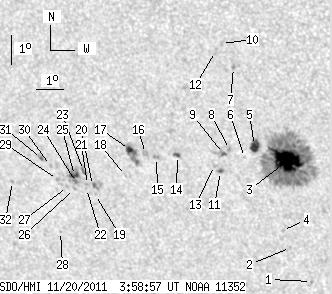

SDO HMI 2011-11-20 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.16 | 315.87 | 36.75 | 193.46 | -24.08 | 283.90 | -25.09 | 138.86 | 0.5891 | 395.2 | 175.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.54 | -28.12 | 285.54 | -23.46 | 145.10 | 0.6159 | 613.0 | 577.4 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -26.97 | 285.04 | -23.96 | 143.31 | 0.6080 | -577.0 | -364.1 | |
| 38.36 | 219.94 | 23.15 | 132.72 | -24.05 | 285.54 | -23.45 | 140.48 | 0.5734 | 1215.1 | 355.1 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -26.40 | 284.87 | -24.12 | 142.49 | 0.6034 | 443.0 | 458.0 | |
| 8.50 | 10.90 | 5.15 | 6.60 | -23.57 | 284.47 | -24.53 | 138.68 | 0.5785 | 758.3 | 503.2 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -23.98 | 284.03 | -24.97 | 138.70 | 0.5866 | 518.0 | 321.0 | |
| 0.00 | 2.06 | 0.00 | 1.23 | -21.04 | 284.21 | -24.79 | 135.08 | 0.5564 | 826.0 | 711.7 | |
| 0.00 | 1.72 | 0.00 | 1.05 | -23.72 | 283.54 | -25.45 | 137.87 | 0.5887 | 916.0 | 666.2 | |
| 1.54 | 6.26 | 0.95 | 3.85 | -23.86 | 283.30 | -25.70 | 137.78 | 0.5924 | 666.5 | 493.4 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -20.27 | 283.92 | -25.07 | 133.71 | 0.5522 | 684.0 | 542.9 | |
| 1.46 | 2.49 | 0.90 | 1.54 | -24.46 | 283.06 | -25.94 | 138.27 | 0.6004 | 735.2 | 577.5 | |
| 0.00 | 2.57 | 0.00 | 1.53 | -20.53 | 283.67 | -25.33 | 133.80 | 0.5573 | 652.0 | 569.3 | |
| 0.00 | 1.89 | 0.00 | 1.17 | -24.26 | 282.89 | -26.11 | 137.85 | 0.6001 | 493.0 | 436.2 | |
| 1.97 | 2.49 | 1.23 | 1.55 | -23.96 | 281.61 | -27.39 | 136.18 | 0.6094 | -837.5 | -793.3 | |
| 0.00 | 2.75 | 0.00 | 1.73 | -24.04 | 280.82 | -28.18 | 135.52 | 0.6178 | -812.0 | -739.5 | |
| 0.00 | 3.86 | 0.00 | 2.43 | -23.91 | 280.44 | -28.55 | 135.01 | 0.6203 | -746.0 | -647.0 | |
| 3.26 | 14.76 | 2.06 | 9.35 | -23.79 | 279.88 | -29.12 | 134.33 | 0.6247 | 757.8 | -96.8 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -24.66 | 279.51 | -29.49 | 135.07 | 0.6357 | -733.0 | -649.1 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -25.32 | 278.19 | -30.80 | 134.72 | 0.6537 | -593.0 | -514.6 | |
| 0.60 | 6.44 | 0.39 | 4.18 | -25.02 | 278.16 | -30.83 | 134.33 | 0.6516 | -842.9 | -716.7 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -24.99 | 277.98 | -31.01 | 134.14 | 0.6531 | -765.0 | -695.0 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -25.13 | 277.90 | -31.09 | 134.24 | 0.6549 | -646.0 | -549.2 | |
| 0.00 | 3.86 | 0.00 | 2.51 | -24.53 | 277.96 | -31.04 | 133.55 | 0.6495 | -869.0 | -746.3 | |
| 0.00 | 1.72 | 0.00 | 1.12 | -24.94 | 277.58 | -31.42 | 133.73 | 0.6564 | -861.0 | -728.5 | |
| 3.78 | 12.27 | 2.47 | 8.02 | -24.70 | 277.57 | -31.43 | 133.43 | 0.6547 | -932.1 | -640.3 | |
| 0.00 | 1.20 | 0.00 | 0.79 | -25.14 | 277.44 | -31.55 | 133.86 | 0.6594 | -518.0 | -424.0 | |
| 0.00 | 1.20 | 0.00 | 0.79 | -25.08 | 277.19 | -31.81 | 133.58 | 0.6613 | -486.0 | -450.3 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -26.60 | 276.45 | -32.55 | 134.79 | 0.6802 | -435.0 | -416.8 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -24.85 | 276.87 | -32.13 | 133.04 | 0.6625 | -726.0 | -603.3 | |
| 0.00 | 1.37 | 0.00 | 0.90 | -24.39 | 276.73 | -32.26 | 132.36 | 0.6603 | -768.0 | -628.4 | |
| 0.69 | 3.52 | 0.45 | 2.32 | -24.17 | 276.45 | -32.54 | 131.86 | 0.6613 | -671.4 | -566.9 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -24.96 | 275.08 | -33.92 | 131.76 | 0.6805 | -621.0 | -501.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
