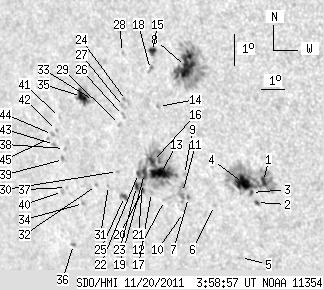

SDO HMI 2011-11-20 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.82 | 376.55 | 64.71 | 265.67 | -15.40 | 266.67 | -42.33 | 114.37 | 0.7148 | 75.8 | 44.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.78 | 97.40 | 2.55 | 66.35 | -16.50 | 269.97 | -39.02 | 117.44 | 0.6826 | 970.8 | 439.6 | |
| 1.37 | 2.57 | 0.94 | 1.76 | -17.17 | 269.53 | -39.47 | 118.11 | 0.6909 | 495.9 | 461.4 | |
| 1.89 | -1.00 | 1.29 | -1.00 | -16.86 | 269.41 | -39.59 | 117.63 | 0.6907 | 542.3 | 999999 | |
| 13.39 | -1.00 | 9.16 | -1.00 | -16.58 | 269.15 | -39.84 | 117.12 | 0.6923 | 850.5 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.57 | -18.93 | 268.39 | -40.61 | 119.82 | 0.7120 | 205.0 | 246.0 | |
| 0.00 | 1.29 | 0.00 | 0.90 | -17.31 | 267.78 | -41.22 | 117.39 | 0.7109 | 640.0 | 401.3 | |
| 0.43 | 1.46 | 0.31 | 1.04 | -17.09 | 266.75 | -42.24 | 116.60 | 0.7210 | 652.2 | 519.8 | |
| 28.49 | 93.97 | 19.55 | 64.34 | -13.00 | 267.62 | -41.38 | 111.52 | 0.6947 | 857.8 | 332.7 | |
| 0.00 | 1.46 | 0.00 | 1.03 | -16.37 | 266.78 | -42.21 | 115.68 | 0.7176 | -870.0 | -646.3 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -17.57 | 266.40 | -42.59 | 117.06 | 0.7269 | 317.0 | 353.7 | |
| 0.00 | 10.13 | 0.00 | 7.23 | -16.94 | 266.54 | -42.45 | 116.31 | 0.7227 | 133.0 | -69.9 | |
| 0.00 | 1.37 | 0.00 | 1.00 | -17.21 | 265.70 | -43.30 | 116.28 | 0.7329 | -331.0 | -316.9 | |
| 15.70 | 98.17 | 11.31 | 70.95 | -16.37 | 265.77 | -43.22 | 115.22 | 0.7287 | -959.7 | -435.2 | |
| 0.00 | 1.37 | 0.00 | 0.97 | -14.27 | 266.22 | -42.77 | 112.66 | 0.7155 | 493.0 | 357.8 | |
| 3.60 | 4.98 | 2.52 | 3.48 | -12.58 | 266.35 | -42.64 | 110.43 | 0.7079 | 655.9 | 474.4 | |
| 4.89 | -13.00 | 3.53 | -13.00 | -16.00 | 265.53 | -43.46 | 114.63 | 0.7298 | -756.2 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.44 | -16.98 | 265.21 | -43.78 | 115.75 | 0.7371 | -222.0 | -196.4 | |
| 0.00 | 2.57 | 0.00 | 1.81 | -13.14 | 266.15 | -42.85 | 111.10 | 0.7122 | 588.0 | 515.4 | |
| 3.60 | -13.00 | 2.63 | -13.00 | -16.39 | 265.08 | -43.91 | 114.94 | 0.7362 | -433.1 | 999999 | |
| 1.03 | -13.00 | 0.76 | -13.00 | -16.92 | 264.84 | -44.16 | 115.53 | 0.7409 | -494.4 | 999999 | |
| 0.86 | -13.00 | 0.63 | -13.00 | -16.70 | 264.90 | -44.09 | 115.27 | 0.7393 | -544.6 | 999999 | |
| 0.77 | -13.00 | 0.57 | -13.00 | -16.39 | 264.82 | -44.17 | 114.84 | 0.7390 | 310.0 | 999999 | |
| 2.49 | -13.00 | 1.83 | -13.00 | -16.81 | 264.61 | -44.38 | 115.28 | 0.7428 | 450.3 | 999999 | |
| 0.00 | 3.69 | 0.00 | 2.66 | -14.13 | 264.91 | -44.09 | 111.93 | 0.7297 | 739.0 | 516.7 | |
| 1.89 | 4.29 | 1.41 | 3.21 | -17.14 | 263.99 | -45.01 | 115.43 | 0.7507 | 682.3 | 453.8 | |
| 0.00 | 1.80 | 0.00 | 1.31 | -14.60 | 264.66 | -44.33 | 112.45 | 0.7341 | 652.0 | 554.6 | |
| 0.00 | 2.75 | 0.00 | 1.99 | -14.32 | 264.73 | -44.26 | 112.11 | 0.7323 | 580.0 | 482.5 | |
| 0.00 | 1.12 | 0.00 | 0.80 | -12.65 | 265.08 | -43.91 | 110.04 | 0.7227 | 549.0 | 369.8 | |
| 0.00 | 1.37 | 0.00 | 1.00 | -14.88 | 264.42 | -44.58 | 112.72 | 0.7378 | 579.0 | 414.6 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -16.36 | 263.92 | -45.08 | 114.42 | 0.7485 | -660.0 | -554.1 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -16.81 | 263.38 | -45.61 | 114.77 | 0.7558 | -503.0 | -567.5 | |
| 0.00 | 1.37 | 0.00 | 1.04 | -16.83 | 262.84 | -46.16 | 114.57 | 0.7614 | -695.0 | -554.6 | |
| 0.00 | 2.15 | 0.00 | 1.59 | -14.17 | 263.47 | -45.52 | 111.44 | 0.7456 | -842.0 | -708.4 | |
| 0.00 | 1.12 | 0.00 | 0.86 | -17.41 | 262.06 | -46.94 | 115.00 | 0.7715 | -738.0 | -592.0 | |
| 7.21 | 17.33 | 5.38 | 12.92 | -14.06 | 262.97 | -46.02 | 111.12 | 0.7507 | -750.2 | -572.3 | |
| 0.43 | 1.63 | 0.34 | 1.30 | -18.74 | 261.12 | -47.87 | 116.25 | 0.7854 | -699.0 | -558.4 | |
| 0.00 | 1.20 | 0.00 | 0.94 | -16.93 | 261.44 | -47.55 | 114.17 | 0.7760 | -603.0 | -433.1 | |
| 0.00 | 1.37 | 0.00 | 1.06 | -15.71 | 261.74 | -47.25 | 112.76 | 0.7689 | -665.0 | -580.8 | |
| 0.00 | 2.75 | 0.00 | 2.13 | -16.05 | 261.59 | -47.41 | 113.13 | 0.7716 | -723.0 | -643.3 | |
| 0.00 | 2.32 | 0.00 | 1.82 | -17.06 | 261.21 | -47.78 | 114.24 | 0.7788 | -689.0 | -497.7 | |
| 0.00 | 1.46 | 0.00 | 1.12 | -14.74 | 261.80 | -47.19 | 111.57 | 0.7653 | -618.0 | -448.4 | |
| 0.00 | 1.37 | 0.00 | 1.06 | -15.15 | 261.54 | -47.45 | 112.00 | 0.7692 | -610.0 | -487.6 | |
| 0.00 | 1.54 | 0.00 | 1.20 | -15.60 | 261.32 | -47.68 | 112.47 | 0.7729 | -675.0 | -573.8 | |
| 0.00 | 1.89 | 0.00 | 1.46 | -15.28 | 261.32 | -47.67 | 112.08 | 0.7719 | -659.0 | -497.8 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -15.42 | 261.10 | -47.90 | 112.17 | 0.7746 | -514.0 | -379.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
