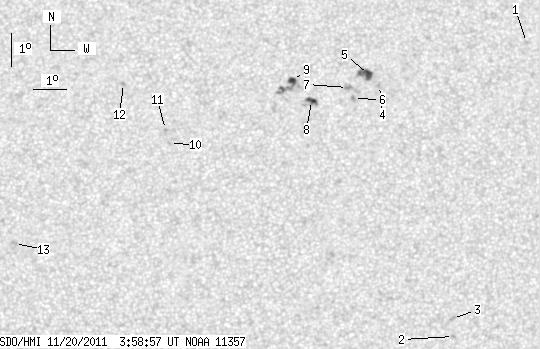

SDO HMI 2011-11-20 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.33 | 57.32 | 7.45 | 29.69 | 17.56 | 315.97 | 6.97 | 336.86 | 0.2939 | -511.7 | -177.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.73 | 19.52 | 322.87 | 13.88 | 322.75 | 0.3752 | 842.0 | 614.8 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 10.60 | 320.04 | 11.05 | 307.65 | 0.2390 | -904.0 | -693.5 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 11.14 | 320.03 | 11.04 | 309.46 | 0.2444 | -842.0 | -712.0 | |
| 0.00 | 2.40 | 0.00 | 1.25 | 18.22 | 318.09 | 9.09 | 331.38 | 0.3148 | -833.0 | -665.8 | |
| 6.18 | 11.76 | 3.23 | 6.14 | 18.56 | 317.76 | 8.76 | 332.78 | 0.3171 | -1005.4 | -849.8 | |
| 0.00 | 2.57 | 0.00 | 1.34 | 17.83 | 317.25 | 8.25 | 333.01 | 0.3025 | -1004.0 | -867.8 | |
| 0.00 | 3.43 | 0.00 | 1.79 | 18.17 | 317.07 | 8.08 | 334.02 | 0.3062 | -975.0 | -750.5 | |
| 3.95 | 8.24 | 2.04 | 4.26 | 17.77 | 315.93 | 6.93 | 336.73 | 0.2923 | -937.2 | -645.0 | |
| 4.20 | 16.65 | 2.18 | 8.62 | 18.39 | 315.35 | 6.36 | 339.26 | 0.2982 | 834.1 | 764.5 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.47 | 311.48 | 2.48 | 350.38 | 0.2497 | -917.0 | -722.0 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 16.90 | 311.36 | 2.36 | 351.11 | 0.2565 | -765.0 | -660.8 | |
| 0.00 | 2.06 | 0.00 | 1.06 | 18.31 | 310.07 | 1.07 | 356.32 | 0.2779 | -887.0 | -658.5 | |
| 0.00 | 2.57 | 0.00 | 1.30 | 13.43 | 306.72 | -2.27 | 11.28 | 0.1981 | 697.0 | 654.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
