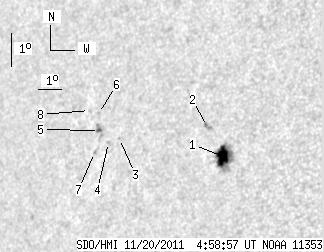

SDO HMI 2011-11-20 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.74 | 50.46 | 11.30 | 34.51 | 7.63 | 264.97 | -43.47 | 81.32 | 0.6917 | -786.0 | -501.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.28 | 35.61 | 10.23 | 23.81 | 7.43 | 266.32 | -42.13 | 81.45 | 0.6750 | -981.6 | -586.3 | |
| 0.00 | 3.18 | 0.00 | 2.15 | 8.31 | 265.59 | -42.85 | 80.26 | 0.6852 | -7.0 | 31.7 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 7.85 | 261.94 | -46.51 | 81.35 | 0.7293 | -553.0 | -481.8 | |
| 0.00 | 1.20 | 0.00 | 0.87 | 7.72 | 261.48 | -46.97 | 81.58 | 0.7346 | -672.0 | -594.2 | |
| 1.46 | 6.09 | 1.07 | 4.47 | 8.06 | 261.03 | -47.42 | 81.15 | 0.7402 | -721.4 | -556.1 | |
| 0.00 | 1.12 | 0.00 | 0.82 | 8.57 | 260.90 | -47.55 | 80.48 | 0.7421 | -655.0 | -469.2 | |
| 0.00 | 1.54 | 0.00 | 1.13 | 7.40 | 260.90 | -47.54 | 82.05 | 0.7411 | -467.0 | -371.3 | |
| 0.00 | 0.86 | 0.00 | 0.64 | 8.64 | 260.49 | -47.96 | 80.43 | 0.7470 | -430.0 | -384.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
