SDO HMI 2011-11-20 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.51 | 50.90 | 11.76 | 34.44 | 7.68 | 265.12 | -42.78 | 81.17 | 0.6831 | -805.2 | -469.4 | |
|
previous
or next observation for the same group /

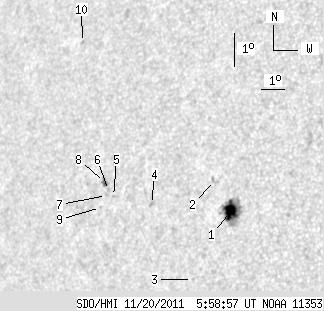

back to the solar disc SDO HMI 2011-11-20 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.19 | 36.82 | 10.08 | 24.41 | 7.41 | 266.34 | -41.56 | 81.41 | 0.6677 | -1038.5 | -528.6 | |
| 0.00 | 3.43 | 0.00 | 2.31 | 8.31 | 265.58 | -42.32 | 80.17 | 0.6785 | -102.0 | 14.9 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 5.35 | 265.01 | -42.89 | 84.58 | 0.6830 | -633.0 | -551.3 | |
| 0.00 | 1.20 | 0.00 | 0.84 | 7.53 | 263.07 | -44.83 | 81.61 | 0.7088 | -630.0 | -561.6 | |
| 0.00 | 0.94 | 0.00 | 0.68 | 7.72 | 261.41 | -46.49 | 81.51 | 0.7290 | -728.0 | -632.5 | |
| 0.00 | 1.12 | 0.00 | 0.81 | 7.89 | 261.17 | -46.73 | 81.30 | 0.7320 | -630.0 | -555.8 | |
| 0.00 | 1.20 | 0.00 | 0.87 | 7.74 | 261.10 | -46.80 | 81.52 | 0.7326 | -538.0 | -407.3 | |
| 2.32 | 3.78 | 1.68 | 2.75 | 8.13 | 260.96 | -46.94 | 81.01 | 0.7347 | -704.0 | -535.0 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 7.38 | 260.89 | -47.01 | 82.03 | 0.7348 | -384.0 | -335.3 | |
| 0.00 | 1.29 | 0.00 | 0.98 | 12.28 | 259.14 | -48.77 | 75.73 | 0.7606 | -615.0 | -536.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
