SDO HMI 2011-11-20 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.45 | 345.85 | 64.30 | 238.89 | -15.56 | 266.49 | -40.87 | 115.24 | 0.6989 | 46.4 | 15.7 | |
|
previous
or next observation for the same group /

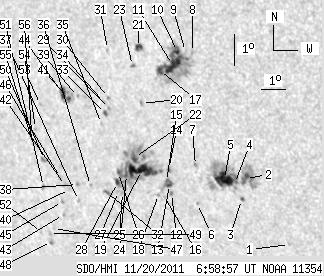

back to the solar disc SDO HMI 2011-11-20 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.68 | -18.55 | 271.06 | -36.29 | 121.81 | 0.6627 | 571.0 | 469.6 | |
| 5.41 | 26.52 | 3.58 | 17.50 | -16.51 | 269.84 | -37.52 | 118.26 | 0.6653 | 892.9 | 669.1 | |
| 0.43 | 1.63 | 0.29 | 1.09 | -17.17 | 269.52 | -37.83 | 118.99 | 0.6724 | 603.8 | 477.4 | |
| 1.03 | 57.67 | 0.69 | 38.62 | -16.67 | 269.37 | -37.99 | 118.22 | 0.6716 | 799.9 | 331.2 | |
| 15.88 | -4.00 | 10.63 | -4.00 | -16.56 | 269.00 | -38.36 | 117.86 | 0.6752 | 810.1 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -17.34 | 267.72 | -39.63 | 118.23 | 0.6934 | 543.0 | 547.6 | |
| 0.00 | 1.63 | 0.00 | 1.11 | -16.15 | 267.94 | -39.41 | 116.73 | 0.6852 | -540.0 | -395.1 | |
| 0.00 | 1.46 | 0.00 | 0.96 | -12.64 | 268.56 | -38.80 | 112.14 | 0.6623 | 673.0 | 560.7 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -12.62 | 268.29 | -39.07 | 111.98 | 0.6655 | 672.0 | 553.7 | |
| 1.63 | 71.57 | 1.08 | 47.81 | -12.63 | 267.97 | -39.38 | 111.84 | 0.6694 | 962.8 | 437.8 | |
| 14.33 | -10.00 | 9.58 | -10.00 | -13.03 | 267.70 | -39.66 | 112.29 | 0.6743 | 912.5 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.01 | -17.06 | 266.74 | -40.61 | 117.34 | 0.7029 | 668.0 | 566.7 | |
| 3.00 | 7.72 | 2.08 | 5.36 | -16.77 | 266.73 | -40.62 | 116.96 | 0.7017 | 415.1 | -108.4 | |
| 1.12 | 1.72 | 0.77 | 1.18 | -16.30 | 266.81 | -40.54 | 116.37 | 0.6987 | -720.5 | -684.0 | |
| 1.97 | -13.00 | 1.37 | -13.00 | -16.68 | 266.64 | -40.72 | 116.79 | 0.7024 | -345.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -17.16 | 266.43 | -40.93 | 117.31 | 0.7069 | 419.0 | 345.9 | |
| 4.03 | -10.00 | 2.72 | -10.00 | -13.23 | 267.14 | -40.21 | 112.32 | 0.6817 | 564.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.90 | -17.10 | 266.19 | -41.16 | 117.12 | 0.7092 | -225.0 | -43.9 | |
| 21.28 | 107.18 | 14.95 | 75.48 | -16.36 | 265.69 | -41.67 | 115.91 | 0.7115 | -878.2 | -417.7 | |
| 0.00 | 1.89 | 0.00 | 1.30 | -14.27 | 266.20 | -41.16 | 113.33 | 0.6970 | 355.0 | 302.4 | |
| 3.60 | 4.72 | 2.45 | 3.21 | -12.54 | 266.44 | -40.92 | 111.06 | 0.6875 | 623.0 | 649.1 | |
| 4.12 | -19.00 | 2.90 | -19.00 | -15.96 | 265.50 | -41.85 | 115.29 | 0.7119 | -856.3 | 999999 | |
| 1.12 | 1.63 | 0.76 | 1.12 | -13.11 | 266.08 | -41.27 | 111.68 | 0.6938 | 664.1 | 560.7 | |
| 0.94 | -19.00 | 0.67 | -19.00 | -16.51 | 265.02 | -42.33 | 115.78 | 0.7194 | 69.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -17.08 | 264.70 | -42.66 | 116.38 | 0.7254 | -117.0 | -76.2 | |
| 1.63 | -19.00 | 1.16 | -19.00 | -16.45 | 264.70 | -42.65 | 115.57 | 0.7227 | 312.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.74 | -17.05 | 264.53 | -42.82 | 116.27 | 0.7270 | 245.0 | 205.8 | |
| 2.32 | -19.00 | 1.66 | -19.00 | -16.77 | 264.57 | -42.78 | 115.92 | 0.7254 | 445.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.97 | -14.46 | 264.83 | -42.52 | 113.00 | 0.7133 | 637.0 | 590.4 | |
| 0.00 | 1.12 | 0.00 | 0.78 | -14.12 | 264.87 | -42.48 | 112.56 | 0.7116 | 550.0 | 556.2 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -12.64 | 265.16 | -42.20 | 110.66 | 0.7029 | 337.0 | 319.4 | |
| 1.72 | 2.66 | 1.24 | 1.93 | -17.10 | 264.01 | -43.35 | 116.09 | 0.7328 | 670.7 | 694.3 | |
| 0.86 | 1.97 | 0.61 | 1.40 | -14.62 | 264.63 | -42.73 | 113.12 | 0.7162 | 580.0 | 459.3 | |
| 0.00 | 1.46 | 0.00 | 1.03 | -14.28 | 264.67 | -42.69 | 112.68 | 0.7145 | 514.0 | 407.4 | |
| 0.00 | 1.20 | 0.00 | 0.85 | -14.94 | 264.38 | -42.97 | 113.44 | 0.7202 | 440.0 | 348.4 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -16.90 | 263.38 | -43.98 | 115.55 | 0.7387 | -771.0 | -610.8 | |
| 0.00 | 1.29 | 0.00 | 0.96 | -17.39 | 262.71 | -44.65 | 115.88 | 0.7477 | 447.0 | 287.3 | |
| 0.00 | 1.20 | 0.00 | 0.89 | -16.88 | 262.82 | -44.53 | 115.29 | 0.7446 | -687.0 | -577.3 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -14.13 | 263.57 | -43.79 | 112.03 | 0.7263 | -856.0 | -720.6 | |
| 0.00 | 1.29 | 0.00 | 0.96 | -17.05 | 262.42 | -44.94 | 115.34 | 0.7495 | -480.0 | -332.1 | |
| 1.46 | 14.50 | 1.05 | 10.50 | -14.20 | 263.17 | -44.19 | 111.97 | 0.7310 | -887.3 | -648.6 | |
| 0.00 | 1.97 | 0.00 | 1.47 | -16.93 | 262.28 | -45.08 | 115.12 | 0.7505 | -768.0 | -619.8 | |
| 0.00 | 1.20 | 0.00 | 0.91 | -17.85 | 261.90 | -45.46 | 116.12 | 0.7579 | -550.0 | -467.8 | |
| 5.06 | -41.00 | 3.67 | -41.00 | -14.02 | 262.95 | -44.40 | 111.65 | 0.7327 | -631.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.90 | -17.44 | 261.99 | -45.37 | 115.64 | 0.7554 | -638.0 | -613.9 | |
| 0.00 | 1.97 | 0.00 | 1.48 | -16.68 | 262.14 | -45.22 | 114.75 | 0.7511 | -218.0 | -360.0 | |
| 0.00 | 0.60 | 0.00 | 0.46 | -18.31 | 261.30 | -46.06 | 116.44 | 0.7658 | -647.0 | -574.9 | |
| 0.00 | 2.15 | 0.00 | 1.66 | -18.73 | 261.06 | -46.30 | 116.85 | 0.7697 | -687.0 | -618.3 | |
| 0.00 | 1.29 | 0.00 | 0.99 | -18.48 | 261.06 | -46.30 | 116.54 | 0.7688 | -615.0 | -521.4 | |
| 0.00 | 3.18 | 0.00 | 2.39 | -16.14 | 261.59 | -45.76 | 113.85 | 0.7548 | -745.0 | -647.8 | |
| 0.51 | 1.89 | 0.39 | 1.44 | -16.99 | 261.28 | -46.07 | 114.79 | 0.7610 | -641.3 | -521.1 | |
| 0.00 | 1.12 | 0.00 | 0.87 | -18.46 | 260.70 | -46.66 | 116.37 | 0.7723 | -462.0 | -423.0 | |
| 0.00 | 1.20 | 0.00 | 0.89 | -14.42 | 261.90 | -45.46 | 111.77 | 0.7456 | -605.0 | -460.4 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -15.18 | 261.47 | -45.88 | 112.58 | 0.7527 | -635.0 | -574.2 | |
| 0.00 | 1.46 | 0.00 | 1.10 | -15.68 | 261.24 | -46.12 | 113.13 | 0.7569 | -569.0 | -516.8 | |
| 0.00 | 0.86 | 0.00 | 0.65 | -15.31 | 261.26 | -46.10 | 112.67 | 0.7555 | -512.0 | -497.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
