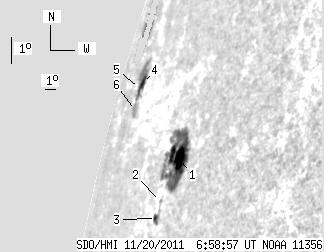

SDO HMI 2011-11-20 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.74 | 134.30 | 46.53 | 284.36 | 14.67 | 231.05 | -76.31 | 75.42 | 0.9702 | -275.0 | -108.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.58 | 98.00 | 20.24 | 175.08 | 14.15 | 233.79 | -73.57 | 75.91 | 0.9602 | -593.0 | -141.5 | |
| 0.00 | 1.72 | 0.00 | 3.16 | 12.81 | 232.79 | -74.57 | 77.34 | 0.9646 | -197.0 | -156.5 | |
| 0.00 | 4.98 | 0.00 | 9.24 | 12.29 | 232.75 | -74.61 | 77.87 | 0.9648 | 216.0 | 153.2 | |
| 4.38 | 22.48 | 13.76 | 73.90 | 16.17 | 226.09 | -81.27 | 73.98 | 0.9884 | 206.9 | -3.8 | |
| 3.78 | -4.00 | 12.53 | -4.00 | 16.00 | 225.57 | -81.78 | 74.16 | 0.9896 | -342.9 | 999999 | |
| 0.00 | 7.12 | 0.00 | 22.98 | 15.34 | 226.00 | -81.36 | 74.83 | 0.9886 | -187.0 | -204.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
