SDO HMI 2011-11-20 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.92 | 293.31 | 34.76 | 176.47 | -24.04 | 283.95 | -22.86 | 141.30 | 0.5679 | 459.6 | 188.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

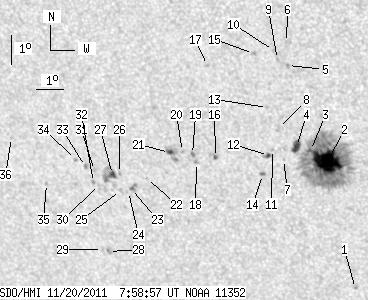

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.48 | -28.35 | 285.67 | -21.14 | 147.95 | 0.6003 | 814.0 | 660.8 | |
| 37.58 | 209.89 | 22.32 | 124.72 | -24.04 | 285.51 | -21.30 | 143.02 | 0.5537 | 1233.6 | 350.3 | |
| 0.69 | -2.00 | 0.41 | -2.00 | -23.72 | 284.97 | -21.84 | 141.97 | 0.5550 | 837.1 | 999999 | |
| 7.29 | 9.01 | 4.35 | 5.37 | -23.60 | 284.50 | -22.31 | 141.25 | 0.5579 | 829.5 | 488.5 | |
| 0.00 | 2.06 | 0.00 | 1.20 | -20.96 | 284.64 | -22.17 | 138.00 | 0.5288 | 737.0 | 501.6 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -20.22 | 284.72 | -22.09 | 137.08 | 0.5204 | 812.0 | 654.4 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -24.03 | 283.97 | -22.84 | 141.14 | 0.5673 | 426.0 | 276.2 | |
| 0.00 | 2.57 | 0.00 | 1.53 | -23.01 | 283.98 | -22.83 | 139.89 | 0.5566 | 692.0 | 477.8 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -20.77 | 284.32 | -22.49 | 137.36 | 0.5300 | 777.0 | 666.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -20.48 | 284.23 | -22.58 | 136.85 | 0.5280 | 791.0 | 659.3 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -23.71 | 283.64 | -23.17 | 140.36 | 0.5669 | 571.0 | 440.8 | |
| 1.80 | 3.95 | 1.09 | 2.38 | -23.91 | 283.46 | -23.35 | 140.40 | 0.5707 | 588.0 | 441.6 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -22.33 | 283.72 | -23.09 | 138.71 | 0.5520 | 712.0 | 557.5 | |
| 1.89 | 2.06 | 1.15 | 1.25 | -24.54 | 283.12 | -23.69 | 140.79 | 0.5803 | 688.4 | 532.0 | |
| 0.00 | 1.97 | 0.00 | 1.16 | -20.59 | 283.53 | -23.28 | 136.15 | 0.5363 | 758.0 | 660.9 | |
| 1.29 | 3.35 | 0.79 | 2.05 | -24.01 | 281.55 | -25.26 | 138.40 | 0.5894 | -768.7 | -709.0 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -21.00 | 281.86 | -24.95 | 134.82 | 0.5575 | 697.0 | 551.1 | |
| 0.00 | 2.15 | 0.00 | 1.32 | -24.19 | 280.83 | -25.98 | 137.86 | 0.5979 | -645.0 | -553.4 | |
| 0.00 | 2.06 | 0.00 | 1.27 | -23.92 | 280.74 | -26.07 | 137.45 | 0.5962 | -925.0 | -839.9 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -23.83 | 280.40 | -26.41 | 136.98 | 0.5986 | -752.0 | -623.1 | |
| 2.83 | 11.07 | 1.76 | 6.86 | -23.87 | 279.92 | -26.89 | 136.54 | 0.6036 | 686.3 | 47.9 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -24.75 | 278.87 | -27.94 | 136.60 | 0.6216 | -697.0 | -564.3 | |
| 1.20 | 3.78 | 0.76 | 2.40 | -25.10 | 278.23 | -28.58 | 136.41 | 0.6307 | -827.2 | -687.7 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -25.20 | 278.09 | -28.72 | 136.41 | 0.6329 | -469.0 | -549.1 | |
| 0.00 | 1.29 | 0.00 | 0.82 | -25.18 | 277.79 | -29.02 | 136.10 | 0.6354 | -744.0 | -572.1 | |
| 0.00 | 1.29 | 0.00 | 0.82 | -24.61 | 277.90 | -28.91 | 135.51 | 0.6295 | -791.0 | -691.3 | |
| 3.35 | 13.73 | 2.13 | 8.77 | -24.65 | 277.63 | -29.18 | 135.31 | 0.6324 | -869.9 | -659.8 | |
| 0.00 | 1.97 | 0.00 | 1.30 | -27.25 | 276.76 | -30.05 | 137.61 | 0.6628 | -670.0 | -629.7 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -27.19 | 276.54 | -30.27 | 137.35 | 0.6641 | -601.0 | -454.4 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -24.99 | 277.05 | -29.76 | 135.21 | 0.6408 | -439.0 | -509.5 | |
| 0.00 | 1.89 | 0.00 | 1.21 | -24.53 | 276.99 | -29.82 | 134.58 | 0.6375 | -736.0 | -506.6 | |
| 0.00 | 1.63 | 0.00 | 1.05 | -24.93 | 276.84 | -29.97 | 134.95 | 0.6423 | -742.0 | -639.4 | |
| 0.00 | 1.46 | 0.00 | 0.94 | -24.40 | 276.68 | -30.13 | 134.16 | 0.6394 | -797.0 | -698.2 | |
| 0.00 | 1.46 | 0.00 | 0.94 | -24.18 | 276.37 | -30.44 | 133.60 | 0.6406 | -780.0 | -648.6 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -25.00 | 275.03 | -31.78 | 133.48 | 0.6601 | -621.0 | -464.7 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -23.50 | 274.11 | -32.70 | 130.88 | 0.6576 | -408.0 | -387.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
