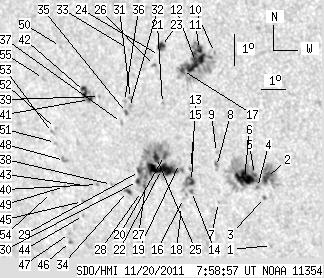

SDO HMI 2011-11-20 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.30 | 348.12 | 66.30 | 238.25 | -15.49 | 266.60 | -40.21 | 115.46 | 0.6911 | 70.7 | 18.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.86 | -18.65 | 269.48 | -37.33 | 121.29 | 0.6747 | 696.0 | 490.3 | |
| 6.35 | 24.11 | 4.17 | 15.80 | -16.50 | 269.80 | -37.01 | 118.55 | 0.6594 | 908.2 | 683.8 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -17.14 | 269.58 | -37.23 | 119.29 | 0.6653 | 581.0 | 545.1 | |
| 0.00 | 1.37 | 0.00 | 0.91 | -16.83 | 269.38 | -37.43 | 118.75 | 0.6660 | 641.0 | 568.1 | |
| 1.20 | 61.95 | 0.79 | 41.23 | -16.42 | 269.35 | -37.46 | 118.17 | 0.6641 | 870.5 | 260.0 | |
| 15.19 | -5.00 | 10.10 | -5.00 | -16.56 | 268.93 | -37.88 | 118.12 | 0.6697 | 810.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.82 | -17.34 | 267.71 | -39.10 | 118.50 | 0.6875 | 602.0 | 445.4 | |
| 0.00 | 3.09 | 0.00 | 2.08 | -16.21 | 267.91 | -38.91 | 117.08 | 0.6797 | -582.0 | -328.7 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -15.77 | 268.01 | -38.80 | 116.53 | 0.6764 | 473.0 | 258.4 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -12.67 | 268.56 | -38.25 | 112.43 | 0.6558 | 767.0 | 682.8 | |
| 4.20 | 71.74 | 2.77 | 47.56 | -12.59 | 267.99 | -38.82 | 112.05 | 0.6624 | 895.0 | 399.5 | |
| 18.11 | -11.00 | 12.00 | -11.00 | -12.97 | 267.76 | -39.05 | 112.48 | 0.6667 | 864.3 | 999999 | |
| 2.32 | 11.50 | 1.59 | 7.92 | -16.71 | 266.78 | -40.03 | 117.16 | 0.6948 | 491.8 | -95.8 | |
| 1.20 | 1.80 | 0.83 | 1.24 | -17.02 | 266.70 | -40.11 | 117.54 | 0.6972 | 556.4 | 541.6 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -16.30 | 266.84 | -39.97 | 116.65 | 0.6922 | -814.0 | -772.0 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -17.25 | 266.31 | -40.50 | 117.65 | 0.7025 | 517.0 | 437.0 | |
| 1.97 | -11.00 | 1.32 | -11.00 | -13.26 | 267.19 | -39.62 | 112.62 | 0.6747 | 595.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -17.51 | 266.16 | -40.65 | 117.91 | 0.7054 | 361.0 | 261.2 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -16.15 | 266.43 | -40.38 | 116.24 | 0.6961 | -614.0 | -519.6 | |
| 2.57 | 102.54 | 1.78 | 71.63 | -15.92 | 265.88 | -40.93 | 115.66 | 0.7013 | -877.3 | -378.7 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -14.30 | 266.18 | -40.63 | 113.60 | 0.6910 | 473.0 | 406.6 | |
| 20.94 | -20.00 | 14.59 | -20.00 | -16.36 | 265.64 | -41.17 | 116.14 | 0.7059 | -886.9 | 999999 | |
| 3.95 | 5.23 | 2.66 | 3.53 | -12.54 | 266.50 | -40.31 | 111.30 | 0.6802 | 642.6 | 667.8 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -12.82 | 266.36 | -40.45 | 111.63 | 0.6829 | 419.0 | 317.8 | |
| 4.72 | -20.00 | 3.29 | -20.00 | -15.99 | 265.53 | -41.28 | 115.59 | 0.7055 | -910.1 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.23 | -13.13 | 266.10 | -40.71 | 111.96 | 0.6872 | 775.0 | 536.1 | |
| 0.77 | -20.00 | 0.55 | -20.00 | -16.88 | 264.84 | -41.97 | 116.44 | 0.7170 | -577.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -17.08 | 264.62 | -42.19 | 116.59 | 0.7203 | 76.0 | -7.8 | |
| 2.23 | -20.00 | 1.58 | -20.00 | -16.45 | 264.71 | -42.10 | 115.81 | 0.7166 | 261.2 | 999999 | |
| 1.20 | -20.00 | 0.85 | -20.00 | -16.77 | 264.54 | -42.27 | 116.14 | 0.7198 | 498.8 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.49 | -14.18 | 264.90 | -41.91 | 112.87 | 0.7053 | 822.0 | 608.4 | |
| 0.00 | 1.89 | 0.00 | 1.32 | -14.46 | 264.79 | -42.02 | 113.20 | 0.7076 | 660.0 | 558.3 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -12.67 | 265.18 | -41.63 | 110.92 | 0.6962 | 378.0 | 350.5 | |
| 2.06 | 3.43 | 1.48 | 2.47 | -17.09 | 264.02 | -42.79 | 116.33 | 0.7268 | 666.7 | 553.1 | |
| 1.20 | 1.54 | 0.84 | 1.08 | -14.62 | 264.63 | -42.18 | 113.34 | 0.7100 | 553.4 | 604.2 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -14.28 | 264.63 | -42.18 | 112.89 | 0.7087 | 550.0 | 392.3 | |
| 0.00 | 1.72 | 0.00 | 1.21 | -14.94 | 264.35 | -42.47 | 113.64 | 0.7145 | 497.0 | 333.5 | |
| 0.00 | 1.46 | 0.00 | 1.06 | -16.89 | 263.40 | -43.41 | 115.79 | 0.7326 | -741.0 | -579.7 | |
| 0.00 | 1.20 | 0.00 | 0.85 | -14.15 | 263.61 | -43.20 | 112.30 | 0.7197 | -732.0 | -705.8 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -16.91 | 262.79 | -44.02 | 115.54 | 0.7392 | -530.0 | -511.2 | |
| 2.40 | 13.90 | 1.72 | 9.97 | -14.26 | 263.17 | -43.65 | 112.25 | 0.7251 | -743.0 | -646.3 | |
| 4.72 | -41.00 | 3.39 | -41.00 | -14.02 | 263.01 | -43.80 | 111.87 | 0.7260 | -656.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.83 | -16.96 | 262.21 | -44.60 | 115.36 | 0.7455 | -782.0 | -678.5 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -17.91 | 261.87 | -44.94 | 116.41 | 0.7528 | -606.0 | -518.7 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -17.47 | 261.97 | -44.84 | 115.89 | 0.7500 | -700.0 | -567.5 | |
| 0.00 | 2.57 | 0.00 | 1.97 | -18.76 | 261.01 | -45.81 | 117.09 | 0.7649 | -668.0 | -605.9 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -18.50 | 261.05 | -45.76 | 116.80 | 0.7635 | -637.0 | -572.9 | |
| 0.00 | 3.17 | 0.00 | 2.37 | -16.20 | 261.56 | -45.25 | 114.12 | 0.7495 | -788.0 | -706.1 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -17.02 | 261.32 | -45.50 | 115.05 | 0.7551 | -735.0 | -639.2 | |
| 0.00 | 1.20 | 0.00 | 0.87 | -12.65 | 262.31 | -44.51 | 109.80 | 0.7293 | -562.0 | -456.3 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -15.64 | 261.33 | -45.48 | 113.32 | 0.7500 | -472.0 | -478.1 | |
| 0.00 | 1.12 | 0.00 | 0.83 | -15.20 | 261.45 | -45.36 | 112.81 | 0.7472 | -645.0 | -500.8 | |
| 0.00 | 2.23 | 0.00 | 1.66 | -15.33 | 261.29 | -45.53 | 112.91 | 0.7494 | -631.0 | -435.8 | |
| 0.00 | 1.12 | 0.00 | 0.85 | -17.22 | 260.67 | -46.14 | 115.05 | 0.7626 | -475.0 | -394.0 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -13.66 | 261.33 | -45.48 | 110.78 | 0.7433 | -569.0 | -446.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
