SDO HMI 2011-11-20 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.89 | 233.20 | 40.93 | 199.57 | 14.13 | 252.19 | -54.08 | 74.24 | 0.8182 | -420.1 | -240.7 | |
|
previous
or next observation for the same group /

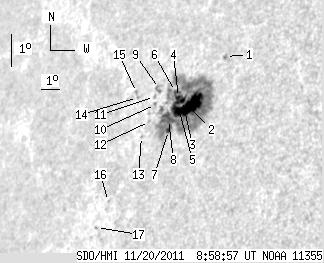

back to the solar disc SDO HMI 2011-11-20 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.35 | 15.74 | 253.88 | -52.39 | 71.98 | 0.8040 | 407.0 | 262.8 | |
| 32.95 | 218.45 | 28.01 | 186.45 | 14.20 | 252.53 | -53.74 | 74.10 | 0.8150 | -837.5 | -272.3 | |
| 1.89 | -2.00 | 1.62 | -2.00 | 14.35 | 252.17 | -54.10 | 73.98 | 0.8187 | -611.1 | 999999 | |
| 2.15 | -2.00 | 1.85 | -2.00 | 14.43 | 251.93 | -54.34 | 73.92 | 0.8211 | -457.6 | 999999 | |
| 1.12 | -2.00 | 0.96 | -2.00 | 14.25 | 251.94 | -54.33 | 74.14 | 0.8208 | -511.5 | 999999 | |
| 1.29 | -2.00 | 1.12 | -2.00 | 14.61 | 251.70 | -54.56 | 73.74 | 0.8235 | -287.7 | 999999 | |
| 1.37 | -2.00 | 1.19 | -2.00 | 13.42 | 251.75 | -54.52 | 75.17 | 0.8215 | -451.1 | 999999 | |
| 7.12 | -2.00 | 6.18 | -2.00 | 13.75 | 251.64 | -54.63 | 74.78 | 0.8230 | 415.0 | 999999 | |
| 0.00 | 4.20 | 0.00 | 3.73 | 14.67 | 250.82 | -55.45 | 73.80 | 0.8319 | -397.0 | -266.7 | |
| 0.00 | 1.54 | 0.00 | 1.37 | 14.18 | 250.79 | -55.48 | 74.39 | 0.8316 | -187.0 | -137.1 | |
| 0.00 | 1.46 | 0.00 | 1.30 | 14.42 | 250.64 | -55.62 | 74.12 | 0.8332 | -230.0 | -184.2 | |
| 0.00 | 1.12 | 0.00 | 0.99 | 13.66 | 250.65 | -55.62 | 75.03 | 0.8323 | 276.0 | 323.0 | |
| 0.00 | 0.94 | 0.00 | 0.84 | 13.19 | 250.38 | -55.89 | 75.62 | 0.8343 | 608.0 | 539.1 | |
| 0.00 | 0.94 | 0.00 | 0.86 | 14.36 | 249.73 | -56.54 | 74.32 | 0.8416 | 659.0 | 550.7 | |
| 0.00 | 1.03 | 0.00 | 0.94 | 14.51 | 249.61 | -56.65 | 74.16 | 0.8428 | 585.0 | 521.2 | |
| 0.00 | 0.77 | 0.00 | 0.71 | 11.19 | 249.21 | -57.05 | 78.13 | 0.8434 | 487.0 | 469.2 | |
| 0.00 | 1.12 | 0.00 | 1.03 | 10.40 | 248.77 | -57.49 | 79.11 | 0.8468 | 473.0 | 423.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
