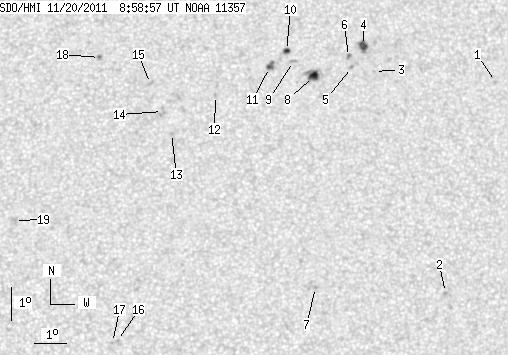

SDO HMI 2011-11-20 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.96 | 57.50 | 8.36 | 29.84 | 17.08 | 314.89 | 8.62 | 331.83 | 0.2981 | -461.8 | -289.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.59 | 17.58 | 322.04 | 15.77 | 315.72 | 0.3728 | 756.0 | 576.9 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 11.20 | 320.02 | 13.76 | 303.88 | 0.2823 | -827.0 | -727.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 17.92 | 318.19 | 11.92 | 324.03 | 0.3362 | -726.0 | -563.9 | |
| 5.58 | 7.72 | 2.94 | 4.07 | 18.72 | 317.89 | 11.63 | 326.12 | 0.3440 | -984.4 | -844.8 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 18.05 | 317.47 | 11.20 | 325.91 | 0.3310 | -1047.0 | -810.1 | |
| 0.00 | 2.40 | 0.00 | 1.26 | 18.39 | 317.39 | 11.13 | 326.68 | 0.3349 | -943.0 | -788.3 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 11.38 | 316.02 | 9.75 | 313.79 | 0.2311 | -869.0 | -706.4 | |
| 5.58 | 14.76 | 2.91 | 7.70 | 17.78 | 316.25 | 9.98 | 328.40 | 0.3164 | -1107.6 | -482.4 | |
| 0.00 | 2.75 | 0.00 | 1.43 | 18.24 | 315.64 | 9.38 | 330.73 | 0.3179 | 893.0 | 658.2 | |
| 2.23 | 2.83 | 1.17 | 1.48 | 18.59 | 315.44 | 9.17 | 331.79 | 0.3211 | 861.8 | 896.0 | |
| 2.57 | 4.89 | 1.34 | 2.55 | 18.06 | 314.87 | 8.61 | 332.46 | 0.3092 | 1011.0 | 896.1 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 17.21 | 313.14 | 6.88 | 336.12 | 0.2839 | -735.0 | -557.8 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 16.06 | 311.74 | 5.47 | 339.00 | 0.2570 | -757.0 | -579.0 | |
| 0.00 | 3.60 | 0.00 | 1.85 | 16.73 | 311.48 | 5.21 | 340.82 | 0.2661 | -758.0 | -731.3 | |
| 0.00 | 2.15 | 0.00 | 1.11 | 17.59 | 311.13 | 4.86 | 343.02 | 0.2780 | -775.0 | -583.9 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.82 | 309.97 | 3.71 | 334.19 | 0.1471 | -781.0 | -579.3 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.76 | 309.82 | 3.56 | 334.94 | 0.1451 | -842.0 | -567.1 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 18.39 | 309.55 | 3.29 | 348.92 | 0.2847 | -518.0 | -511.0 | |
| 0.00 | 3.43 | 0.00 | 1.73 | 13.43 | 306.88 | 0.62 | 356.89 | 0.1950 | 896.0 | 691.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
