SDO HMI 2011-11-20 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.68 | 277.95 | 32.96 | 165.13 | -24.08 | 284.00 | -21.17 | 143.37 | 0.5531 | 409.3 | 173.3 | |
|
previous
or next observation for the same group /

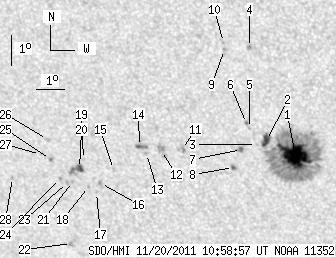

back to the solar disc SDO HMI 2011-11-20 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.32 | 216.94 | 23.70 | 127.61 | -24.10 | 285.42 | -19.75 | 145.06 | 0.5408 | 1169.0 | 345.3 | |
| 6.43 | -1.00 | 3.79 | -1.00 | -23.61 | 284.50 | -20.67 | 143.29 | 0.5433 | 815.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -23.75 | 284.13 | -21.04 | 142.98 | 0.5481 | 426.0 | 334.3 | |
| 0.00 | 2.40 | 0.00 | 1.38 | -20.59 | 284.38 | -20.79 | 139.25 | 0.5111 | 909.0 | 751.7 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -23.23 | 283.97 | -21.20 | 142.15 | 0.5437 | 554.0 | 445.7 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -23.07 | 283.90 | -21.28 | 141.85 | 0.5426 | 797.0 | 627.6 | |
| 1.89 | 3.60 | 1.12 | 2.14 | -23.92 | 283.58 | -21.60 | 142.50 | 0.5548 | 543.0 | 574.9 | |
| 1.46 | 2.23 | 0.87 | 1.34 | -24.53 | 283.19 | -21.99 | 142.74 | 0.5648 | 610.6 | 626.1 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -20.67 | 283.52 | -21.65 | 138.25 | 0.5205 | 763.0 | 638.5 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -20.44 | 283.52 | -21.65 | 137.94 | 0.5181 | 657.0 | 534.2 | |
| 0.00 | 4.12 | 0.00 | 2.49 | -23.96 | 281.46 | -23.71 | 140.03 | 0.5743 | -787.0 | -622.8 | |
| 0.00 | 7.29 | 0.00 | 4.43 | -24.00 | 280.74 | -24.43 | 139.28 | 0.5815 | -767.0 | -717.0 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -24.11 | 280.18 | -24.99 | 138.81 | 0.5877 | -705.0 | -530.5 | |
| 1.29 | 4.46 | 0.79 | 2.72 | -23.89 | 279.98 | -25.19 | 138.31 | 0.5874 | 637.9 | 113.8 | |
| 0.00 | 1.37 | 0.00 | 0.85 | -24.67 | 278.87 | -26.30 | 138.10 | 0.6053 | -747.0 | -566.6 | |
| 0.00 | 2.75 | 0.00 | 1.72 | -25.14 | 278.28 | -26.89 | 138.09 | 0.6152 | -874.0 | -718.6 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -25.45 | 278.06 | -27.11 | 138.23 | 0.6201 | -637.0 | -545.0 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -25.25 | 277.81 | -27.36 | 137.76 | 0.6206 | -695.0 | -602.5 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -24.35 | 277.85 | -27.33 | 136.69 | 0.6120 | -777.0 | -541.9 | |
| 4.29 | 9.26 | 2.69 | 5.83 | -24.66 | 277.63 | -27.55 | 136.85 | 0.6169 | -870.3 | -752.1 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -25.10 | 277.26 | -27.91 | 137.03 | 0.6243 | -574.0 | -461.8 | |
| 0.00 | 3.43 | 0.00 | 2.23 | -27.19 | 276.67 | -28.51 | 138.94 | 0.6485 | -767.0 | -620.3 | |
| 0.00 | 1.89 | 0.00 | 1.20 | -25.13 | 277.07 | -28.11 | 136.89 | 0.6264 | -770.0 | -574.9 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -25.01 | 276.80 | -28.37 | 136.48 | 0.6278 | -730.0 | -628.3 | |
| 0.00 | 1.89 | 0.00 | 1.19 | -24.38 | 276.62 | -28.55 | 135.55 | 0.6239 | -821.0 | -733.2 | |
| 0.00 | 2.40 | 0.00 | 1.51 | -23.72 | 276.67 | -28.50 | 134.77 | 0.6176 | -707.0 | -567.8 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -24.22 | 276.29 | -28.88 | 135.04 | 0.6257 | -758.0 | -592.6 | |
| 0.00 | 1.20 | 0.00 | 0.78 | -25.01 | 275.04 | -30.14 | 134.88 | 0.6444 | -594.0 | -495.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
