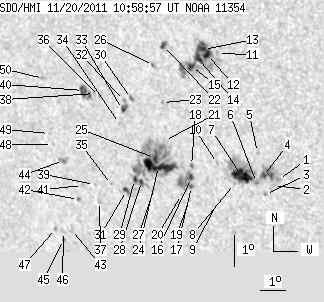

SDO HMI 2011-11-20 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.27 | 328.20 | 55.10 | 220.12 | -15.64 | 266.34 | -38.83 | 116.34 | 0.6759 | 6.9 | 12.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.57 | 0.00 | 1.65 | -16.62 | 270.17 | -35.00 | 119.94 | 0.6366 | 557.0 | 531.0 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -16.81 | 269.94 | -35.23 | 120.06 | 0.6404 | 633.0 | 526.9 | |
| 0.00 | 1.63 | 0.00 | 1.06 | -17.11 | 269.57 | -35.60 | 120.24 | 0.6463 | 665.0 | 527.2 | |
| 1.89 | 16.73 | 1.22 | 10.75 | -16.51 | 269.63 | -35.55 | 119.43 | 0.6423 | 862.9 | 766.8 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -15.79 | 269.55 | -35.63 | 118.36 | 0.6393 | 614.0 | 478.6 | |
| 0.00 | 1.97 | 0.00 | 1.28 | -16.74 | 269.31 | -35.86 | 119.55 | 0.6473 | 721.0 | 673.3 | |
| 16.38 | 43.92 | 10.68 | 28.60 | -16.53 | 268.78 | -36.39 | 118.94 | 0.6523 | 812.2 | 432.0 | |
| 0.00 | 1.12 | 0.00 | 0.73 | -16.79 | 268.45 | -36.72 | 119.10 | 0.6575 | -94.0 | -54.9 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -17.34 | 267.70 | -37.47 | 119.41 | 0.6690 | 663.0 | 509.8 | |
| 0.00 | 1.37 | 0.00 | 0.90 | -16.18 | 267.93 | -37.24 | 117.94 | 0.6603 | -568.0 | -440.1 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -12.76 | 268.60 | -36.58 | 113.39 | 0.6355 | 787.0 | 709.3 | |
| 3.60 | 59.79 | 2.32 | 38.67 | -12.80 | 268.21 | -36.96 | 113.25 | 0.6405 | 1009.3 | 503.7 | |
| 1.89 | -12.00 | 1.21 | -12.00 | -12.65 | 268.08 | -37.09 | 112.96 | 0.6414 | 1017.9 | 999999 | |
| 4.72 | -12.00 | 3.05 | -12.00 | -12.90 | 267.81 | -37.36 | 113.19 | 0.6459 | 741.9 | 999999 | |
| 3.69 | -12.00 | 2.40 | -12.00 | -13.19 | 267.53 | -37.65 | 113.46 | 0.6506 | 785.0 | 999999 | |
| 1.97 | 18.53 | 1.32 | 12.47 | -16.64 | 266.80 | -38.37 | 117.95 | 0.6756 | 505.1 | -231.2 | |
| 1.63 | -16.00 | 1.09 | -16.00 | -16.92 | 266.74 | -38.44 | 118.30 | 0.6778 | 554.9 | 999999 | |
| 1.20 | 1.54 | 0.80 | 1.03 | -16.26 | 266.89 | -38.28 | 117.48 | 0.6727 | -830.1 | -701.0 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -17.34 | 266.55 | -38.62 | 118.75 | 0.6819 | 481.0 | 452.1 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -17.19 | 266.27 | -38.90 | 118.40 | 0.6843 | 445.0 | 329.5 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -15.51 | 266.00 | -39.18 | 115.96 | 0.6794 | -346.0 | -336.4 | |
| 3.00 | 3.43 | 1.97 | 2.26 | -12.57 | 266.55 | -38.62 | 112.09 | 0.6598 | 644.5 | 783.4 | |
| 0.00 | 1.20 | 0.00 | 0.80 | -14.33 | 266.17 | -39.00 | 114.41 | 0.6719 | 407.0 | 276.6 | |
| 21.62 | 113.58 | 14.71 | 77.41 | -16.33 | 265.56 | -39.61 | 116.86 | 0.6882 | -877.5 | -378.7 | |
| 3.52 | -24.00 | 2.39 | -24.00 | -16.08 | 265.50 | -39.67 | 116.49 | 0.6877 | -975.1 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.31 | -13.19 | 266.05 | -39.13 | 112.75 | 0.6685 | 560.0 | 503.8 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -17.06 | 265.18 | -40.00 | 117.64 | 0.6960 | -455.0 | -310.9 | |
| 1.97 | -24.00 | 1.36 | -24.00 | -16.82 | 264.75 | -40.42 | 117.10 | 0.6996 | -496.3 | 999999 | |
| 1.80 | -24.00 | 1.25 | -24.00 | -16.76 | 264.48 | -40.69 | 116.89 | 0.7023 | 492.0 | 999999 | |
| 1.89 | 2.66 | 1.28 | 1.80 | -14.24 | 264.96 | -40.21 | 113.70 | 0.6858 | 650.2 | 588.3 | |
| 2.40 | 4.46 | 1.68 | 3.12 | -17.12 | 264.06 | -41.12 | 117.15 | 0.7086 | 610.9 | 555.8 | |
| 0.00 | 1.46 | 0.00 | 0.99 | -14.31 | 264.66 | -40.51 | 113.66 | 0.6895 | 592.0 | 544.8 | |
| 1.46 | 3.86 | 1.00 | 2.64 | -14.59 | 264.52 | -40.65 | 113.98 | 0.6924 | 562.6 | 614.9 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -15.03 | 264.30 | -40.88 | 114.47 | 0.6968 | 420.0 | 390.4 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -16.95 | 263.48 | -41.69 | 116.64 | 0.7142 | -648.0 | -484.5 | |
| 0.00 | 1.46 | 0.00 | 1.01 | -14.21 | 263.67 | -41.50 | 113.07 | 0.7006 | -826.0 | -721.4 | |
| 0.00 | 1.46 | 0.00 | 1.04 | -17.50 | 262.82 | -42.35 | 117.05 | 0.7237 | 555.0 | 403.7 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -14.12 | 263.48 | -41.69 | 112.87 | 0.7024 | -661.0 | -550.8 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -16.97 | 262.76 | -42.41 | 116.33 | 0.7221 | -752.0 | -621.0 | |
| 6.18 | 12.44 | 4.31 | 8.68 | -14.04 | 263.05 | -42.12 | 112.58 | 0.7071 | -644.7 | -672.5 | |
| 0.00 | 1.12 | 0.00 | 0.80 | -17.01 | 262.24 | -42.93 | 116.15 | 0.7279 | -739.0 | -615.5 | |
| 1.46 | 1.80 | 1.06 | 1.31 | -17.46 | 261.94 | -43.23 | 116.59 | 0.7330 | -620.5 | -455.0 | |
| 0.00 | 2.92 | 0.00 | 2.15 | -18.42 | 261.34 | -43.83 | 117.54 | 0.7433 | -815.0 | -534.3 | |
| 0.00 | 4.55 | 0.00 | 3.29 | -16.25 | 261.65 | -43.52 | 114.90 | 0.7312 | -770.0 | -674.0 | |
| 0.00 | 1.37 | 0.00 | 1.02 | -18.75 | 260.89 | -44.29 | 117.74 | 0.7494 | -659.0 | -598.1 | |
| 0.00 | 1.29 | 0.00 | 0.96 | -18.50 | 260.97 | -44.20 | 117.46 | 0.7475 | -658.0 | -540.8 | |
| 0.00 | 1.97 | 0.00 | 1.47 | -18.41 | 260.65 | -44.53 | 117.21 | 0.7504 | -702.0 | -552.2 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -15.76 | 261.32 | -43.86 | 114.12 | 0.7330 | -644.0 | -539.4 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -15.42 | 261.28 | -43.89 | 113.66 | 0.7321 | -514.0 | -441.8 | |
| 0.00 | 2.14 | 0.00 | 1.53 | -13.72 | 261.45 | -43.72 | 111.49 | 0.7240 | -669.0 | -452.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
