SDO HMI 2011-11-20 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.46 | 243.63 | 32.82 | 203.35 | 14.12 | 252.19 | -52.99 | 74.07 | 0.8075 | -435.3 | -229.2 | |
|
previous
or next observation for the same group /

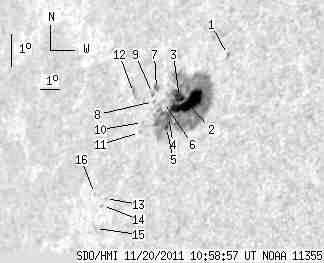

back to the solar disc SDO HMI 2011-11-20 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.38 | 15.71 | 254.01 | -51.16 | 71.77 | 0.7918 | 331.0 | 218.4 | |
| 29.34 | 222.69 | 24.32 | 185.11 | 14.20 | 252.53 | -52.65 | 73.92 | 0.8043 | -838.4 | -281.9 | |
| 6.00 | -2.00 | 5.03 | -2.00 | 14.34 | 252.07 | -53.10 | 73.83 | 0.8090 | -599.4 | 999999 | |
| 3.00 | -2.00 | 2.53 | -2.00 | 13.75 | 251.71 | -53.47 | 74.61 | 0.8118 | 424.1 | 999999 | |
| 1.12 | -2.00 | 0.94 | -2.00 | 13.41 | 251.71 | -53.46 | 75.02 | 0.8113 | -468.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.80 | 14.19 | 251.29 | -53.88 | 74.13 | 0.8164 | -335.0 | -248.2 | |
| 0.00 | 3.95 | 0.00 | 3.41 | 14.60 | 250.78 | -54.39 | 73.71 | 0.8219 | -370.0 | -326.7 | |
| 0.00 | 1.12 | 0.00 | 0.96 | 14.18 | 250.78 | -54.40 | 74.23 | 0.8214 | -326.0 | -242.2 | |
| 0.00 | 1.97 | 0.00 | 1.71 | 14.42 | 250.64 | -54.54 | 73.96 | 0.8230 | -209.0 | -137.1 | |
| 0.00 | 1.03 | 0.00 | 0.89 | 13.53 | 250.42 | -54.75 | 75.07 | 0.8240 | 729.0 | 629.0 | |
| 0.00 | 1.03 | 0.00 | 0.90 | 13.22 | 250.36 | -54.81 | 75.44 | 0.8242 | 594.0 | 568.8 | |
| 0.00 | 4.80 | 0.00 | 4.27 | 14.41 | 249.62 | -55.56 | 74.11 | 0.8326 | 626.0 | 543.2 | |
| 0.00 | 0.69 | 0.00 | 0.61 | 11.19 | 249.18 | -56.00 | 78.03 | 0.8335 | 593.0 | 525.6 | |
| 0.00 | 1.20 | 0.00 | 1.07 | 10.98 | 249.08 | -56.10 | 78.29 | 0.8343 | 516.0 | 509.4 | |
| 0.00 | 1.37 | 0.00 | 1.23 | 10.28 | 248.89 | -56.28 | 79.15 | 0.8355 | 605.0 | 511.8 | |
| 0.00 | 1.12 | 0.00 | 1.01 | 11.32 | 248.54 | -56.64 | 77.94 | 0.8396 | 506.0 | 435.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
