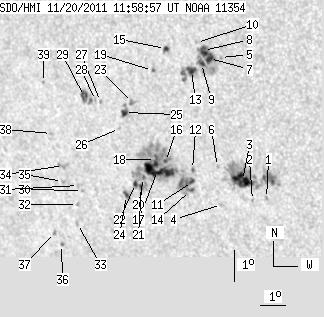

SDO HMI 2011-11-20 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.58 | 327.51 | 54.84 | 217.85 | -15.68 | 266.29 | -38.33 | 116.66 | 0.6703 | 10.6 | -14.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.83 | -17.09 | 269.56 | -35.06 | 120.56 | 0.6400 | 683.0 | 564.3 | |
| 0.00 | 1.37 | 0.00 | 0.89 | -17.17 | 269.01 | -35.61 | 120.31 | 0.6468 | 535.0 | 366.8 | |
| 15.35 | 73.16 | 9.94 | 47.18 | -16.55 | 268.77 | -35.86 | 119.29 | 0.6461 | 806.6 | 521.1 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -17.32 | 267.78 | -36.84 | 119.76 | 0.6618 | 162.0 | 284.5 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -12.75 | 268.66 | -35.97 | 113.69 | 0.6279 | 765.0 | 681.6 | |
| 0.00 | 1.12 | 0.00 | 0.73 | -16.13 | 267.90 | -36.73 | 118.17 | 0.6540 | -581.0 | -394.8 | |
| 5.83 | 37.65 | 3.72 | 24.09 | -12.79 | 268.24 | -36.39 | 113.52 | 0.6333 | 1003.2 | 470.6 | |
| 5.49 | -7.00 | 3.51 | -7.00 | -12.55 | 268.05 | -36.58 | 113.06 | 0.6345 | 838.5 | 999999 | |
| 3.26 | -7.00 | 2.09 | -7.00 | -12.95 | 267.90 | -36.72 | 113.59 | 0.6382 | 768.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -12.31 | 267.82 | -36.80 | 112.59 | 0.6363 | 511.0 | 427.9 | |
| 2.14 | 139.72 | 1.43 | 94.28 | -16.63 | 266.81 | -37.81 | 118.24 | 0.6691 | 504.6 | -370.2 | |
| 1.46 | 1.89 | 0.97 | 1.25 | -16.25 | 266.90 | -37.73 | 117.77 | 0.6662 | -735.5 | -706.0 | |
| 5.06 | 15.61 | 3.27 | 10.11 | -13.17 | 267.48 | -37.14 | 113.70 | 0.6444 | 761.3 | 526.1 | |
| 1.37 | -11.00 | 0.92 | -11.00 | -16.91 | 266.67 | -37.96 | 118.55 | 0.6723 | 580.3 | 999999 | |
| 1.97 | 3.26 | 1.29 | 2.12 | -12.52 | 266.60 | -38.03 | 112.30 | 0.6523 | 639.2 | 599.1 | |
| 0.77 | -11.00 | 0.52 | -11.00 | -16.03 | 265.89 | -38.74 | 116.90 | 0.6768 | -879.8 | 999999 | |
| 21.87 | -11.00 | 14.78 | -11.00 | -16.32 | 265.50 | -39.12 | 117.09 | 0.6826 | -893.9 | 999999 | |
| 0.60 | -11.00 | 0.40 | -11.00 | -15.97 | 265.50 | -39.12 | 116.63 | 0.6809 | -887.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -13.21 | 265.97 | -38.66 | 112.99 | 0.6630 | 698.0 | 602.0 | |
| 0.94 | -11.00 | 0.64 | -11.00 | -16.55 | 264.88 | -39.74 | 117.09 | 0.6907 | -464.1 | 999999 | |
| 1.89 | -11.00 | 1.29 | -11.00 | -16.84 | 264.73 | -39.90 | 117.39 | 0.6938 | -567.8 | 999999 | |
| 1.97 | -11.00 | 1.36 | -11.00 | -16.75 | 264.51 | -40.12 | 117.16 | 0.6958 | 467.4 | 999999 | |
| 0.00 | 3.09 | 0.00 | 2.08 | -14.22 | 264.98 | -39.65 | 113.94 | 0.6791 | 672.0 | 552.7 | |
| 2.83 | 5.49 | 1.96 | 3.80 | -17.14 | 264.04 | -40.58 | 117.44 | 0.7028 | 646.4 | 321.3 | |
| 3.43 | 6.78 | 2.33 | 4.59 | -14.54 | 264.59 | -40.04 | 114.20 | 0.6850 | 582.2 | 527.9 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -15.04 | 264.28 | -40.35 | 114.74 | 0.6908 | 441.0 | 316.2 | |
| 0.00 | 1.29 | 0.00 | 0.88 | -14.22 | 263.69 | -40.93 | 113.35 | 0.6941 | -832.0 | -743.1 | |
| 0.00 | 1.37 | 0.00 | 0.94 | -14.20 | 263.49 | -41.13 | 113.22 | 0.6963 | -561.0 | -505.8 | |
| 5.92 | 11.84 | 4.10 | 8.18 | -14.09 | 263.07 | -41.56 | 112.88 | 0.7007 | -671.4 | -692.5 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -17.03 | 262.24 | -42.38 | 116.42 | 0.7220 | -705.0 | -630.0 | |
| 0.00 | 2.14 | 0.00 | 1.53 | -16.88 | 262.12 | -42.51 | 116.16 | 0.7227 | -773.0 | -644.1 | |
| 0.00 | 1.12 | 0.00 | 0.80 | -17.48 | 261.90 | -42.72 | 116.84 | 0.7276 | -686.0 | -563.1 | |
| 0.00 | 1.89 | 0.00 | 1.37 | -18.08 | 261.72 | -42.90 | 117.53 | 0.7321 | -481.0 | -538.5 | |
| 0.00 | 4.03 | 0.00 | 2.89 | -16.26 | 261.66 | -42.97 | 115.15 | 0.7253 | -678.0 | -625.6 | |
| 0.00 | 1.46 | 0.00 | 1.05 | -16.77 | 261.47 | -43.15 | 115.73 | 0.7293 | -600.0 | -547.4 | |
| 0.43 | 1.20 | 0.32 | 0.89 | -18.77 | 260.82 | -43.81 | 117.98 | 0.7445 | -563.0 | -582.3 | |
| 0.00 | 1.89 | 0.00 | 1.40 | -18.39 | 260.63 | -43.99 | 117.42 | 0.7449 | -705.0 | -533.8 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -15.28 | 261.41 | -43.22 | 113.76 | 0.7241 | -402.0 | -362.0 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -13.70 | 261.46 | -43.17 | 111.69 | 0.7177 | -626.0 | -519.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
