SDO HMI 2011-11-20 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.41 | 46.22 | 10.74 | 24.31 | 17.94 | 316.47 | 11.84 | 324.54 | 0.3380 | -373.0 | -278.4 | |
|
previous
or next observation for the same group /

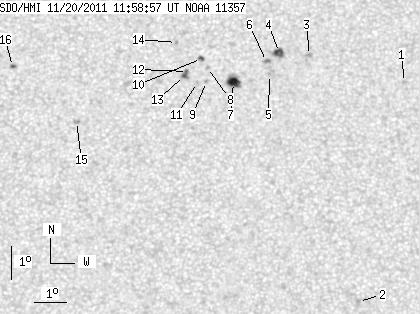

back to the solar disc SDO HMI 2011-11-20 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.97 | 17.82 | 321.98 | 17.35 | 313.60 | 0.3938 | 746.0 | 622.6 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 11.20 | 320.00 | 15.38 | 301.14 | 0.3053 | -922.0 | -679.3 | |
| 0.00 | 3.00 | 0.00 | 1.60 | 18.69 | 318.98 | 14.35 | 320.45 | 0.3704 | -854.0 | -662.5 | |
| 5.83 | 7.03 | 3.10 | 3.73 | 18.79 | 318.02 | 13.39 | 322.51 | 0.3619 | -962.9 | -741.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.11 | 317.65 | 13.02 | 322.04 | 0.3497 | -925.0 | -825.0 | |
| 0.00 | 2.74 | 0.00 | 1.45 | 18.51 | 317.58 | 12.95 | 322.91 | 0.3541 | -959.0 | -795.0 | |
| 8.83 | 12.44 | 4.64 | 6.54 | 17.88 | 316.48 | 11.85 | 324.12 | 0.3351 | -1070.2 | -526.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 18.34 | 315.69 | 11.06 | 326.78 | 0.3339 | 835.0 | 574.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 17.91 | 315.63 | 11.00 | 326.16 | 0.3275 | 773.0 | 538.2 | |
| 2.23 | 2.23 | 1.17 | 1.17 | 18.62 | 315.51 | 10.89 | 327.67 | 0.3361 | 804.9 | 0.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 17.88 | 315.34 | 10.71 | 326.80 | 0.3245 | 504.0 | 345.1 | |
| 0.69 | 4.12 | 0.36 | 2.15 | 18.22 | 315.04 | 10.42 | 328.11 | 0.3265 | 877.2 | 878.8 | |
| 1.46 | -12.00 | 0.76 | -12.00 | 18.10 | 314.94 | 10.31 | 328.15 | 0.3240 | 1009.3 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 19.12 | 314.75 | 10.12 | 330.29 | 0.3366 | -819.0 | -612.9 | |
| 0.00 | 2.74 | 0.00 | 1.41 | 16.71 | 311.48 | 6.86 | 335.43 | 0.2763 | -959.0 | -810.1 | |
| 1.37 | 1.63 | 0.71 | 0.84 | 18.41 | 309.54 | 4.92 | 343.73 | 0.2915 | -677.9 | -828.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
