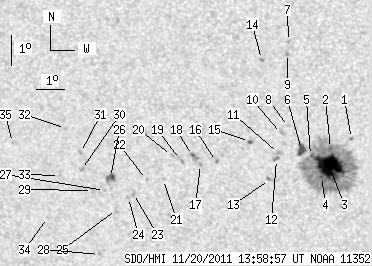

SDO HMI 2011-11-20 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.15 | 275.06 | 34.04 | 161.62 | -24.09 | 284.10 | -19.43 | 145.65 | 0.5386 | 430.7 | 208.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.84 | -23.21 | 286.23 | -17.30 | 147.44 | 0.5099 | 687.0 | 634.8 | |
| 1.72 | 207.77 | 0.99 | 121.06 | -23.55 | 285.47 | -18.06 | 146.74 | 0.5202 | 867.0 | 337.9 | |
| 41.85 | -2.00 | 24.37 | -2.00 | -24.14 | 285.35 | -18.18 | 147.25 | 0.5283 | 1192.4 | 999999 | |
| 0.43 | -2.00 | 0.25 | -2.00 | -24.48 | 285.03 | -18.50 | 147.17 | 0.5349 | 631.8 | 999999 | |
| 0.86 | -2.00 | 0.50 | -2.00 | -23.79 | 284.76 | -18.77 | 146.01 | 0.5289 | 712.2 | 999999 | |
| 6.52 | 8.06 | 3.80 | 4.70 | -23.59 | 284.48 | -19.05 | 145.41 | 0.5290 | 827.5 | 580.7 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -20.09 | 284.52 | -19.00 | 141.01 | 0.4881 | 851.0 | 726.7 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -22.84 | 284.15 | -19.38 | 144.05 | 0.5231 | 802.0 | 607.2 | |
| 0.00 | 1.89 | 0.00 | 1.07 | -20.48 | 284.44 | -19.09 | 141.42 | 0.4933 | 928.0 | 768.2 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -23.08 | 283.87 | -19.66 | 143.97 | 0.5282 | 716.0 | 586.0 | |
| 0.00 | 4.03 | 0.00 | 2.36 | -23.74 | 283.67 | -19.86 | 144.48 | 0.5375 | 786.0 | 601.1 | |
| 0.00 | 2.74 | 0.00 | 1.61 | -23.94 | 283.56 | -19.96 | 144.59 | 0.5407 | 620.0 | 567.9 | |
| 0.00 | 2.49 | 0.00 | 1.47 | -24.60 | 283.21 | -20.32 | 144.90 | 0.5513 | 813.0 | 493.0 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -20.68 | 283.54 | -19.99 | 140.44 | 0.5042 | 685.0 | 638.2 | |
| 1.37 | 1.72 | 0.81 | 1.01 | -23.36 | 282.73 | -20.80 | 142.80 | 0.5415 | -691.4 | -495.5 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -24.03 | 281.46 | -22.07 | 142.05 | 0.5601 | -859.0 | -729.1 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -24.14 | 280.88 | -22.65 | 141.48 | 0.5665 | -744.0 | -665.6 | |
| 1.11 | 4.46 | 0.67 | 2.67 | -23.85 | 280.65 | -22.88 | 140.86 | 0.5655 | -903.5 | -798.1 | |
| 0.00 | 3.77 | 0.00 | 2.27 | -23.99 | 280.20 | -23.32 | 140.51 | 0.5710 | -528.0 | -338.8 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -23.86 | 279.91 | -23.62 | 140.01 | 0.5724 | 731.0 | 606.6 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -24.66 | 279.47 | -24.06 | 140.49 | 0.5846 | -596.0 | -499.8 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -24.67 | 278.85 | -24.67 | 139.83 | 0.5903 | -785.0 | -588.5 | |
| 0.00 | 1.97 | 0.00 | 1.22 | -25.15 | 278.28 | -25.25 | 139.78 | 0.6002 | -870.0 | -768.5 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -25.29 | 278.07 | -25.46 | 139.72 | 0.6034 | -684.0 | -523.2 | |
| 0.00 | 2.40 | 0.00 | 1.50 | -25.70 | 277.54 | -25.99 | 139.65 | 0.6122 | -494.0 | -463.5 | |
| 4.29 | 7.37 | 2.65 | 4.57 | -24.63 | 277.56 | -25.96 | 138.40 | 0.6017 | -915.0 | -714.8 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -25.07 | 277.25 | -26.28 | 138.61 | 0.6088 | -632.0 | -555.4 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -27.24 | 276.52 | -27.00 | 140.41 | 0.6358 | -681.0 | -619.4 | |
| 0.00 | 2.40 | 0.00 | 1.50 | -25.08 | 276.81 | -26.72 | 138.17 | 0.6130 | -800.0 | -501.9 | |
| 0.00 | 2.40 | 0.00 | 1.50 | -24.38 | 276.57 | -26.96 | 137.08 | 0.6088 | -843.0 | -705.7 | |
| 0.00 | 1.80 | 0.00 | 1.12 | -23.82 | 276.66 | -26.87 | 136.48 | 0.6027 | -790.0 | -664.5 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -23.04 | 276.29 | -27.24 | 135.12 | 0.5992 | -645.0 | -457.8 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -24.60 | 275.71 | -27.82 | 136.51 | 0.6189 | -737.0 | -490.8 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -26.02 | 274.90 | -28.63 | 137.45 | 0.6391 | -473.0 | -367.0 | |
| 0.00 | 1.37 | 0.00 | 0.87 | -23.54 | 274.23 | -29.30 | 133.80 | 0.6239 | -637.0 | -460.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
