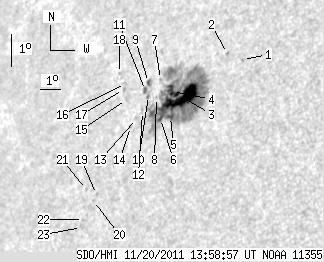

SDO HMI 2011-11-20 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.76 | 246.79 | 38.39 | 198.84 | 14.08 | 252.22 | -51.31 | 73.83 | 0.7905 | -425.3 | -227.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.52 | 15.41 | 255.06 | -48.47 | 71.56 | 0.7630 | -581.0 | -464.9 | |
| 0.00 | 1.11 | 0.00 | 0.86 | 15.57 | 254.31 | -49.22 | 71.52 | 0.7714 | 312.0 | 270.1 | |
| 33.10 | 220.29 | 26.45 | 176.62 | 14.18 | 252.59 | -50.94 | 73.64 | 0.7869 | -865.5 | -287.2 | |
| 6.86 | -3.00 | 5.55 | -3.00 | 14.35 | 252.05 | -51.48 | 73.53 | 0.7927 | -539.2 | 999999 | |
| 3.17 | -3.00 | 2.55 | -3.00 | 13.59 | 252.19 | -51.34 | 74.45 | 0.7901 | -373.3 | 999999 | |
| 0.77 | -3.00 | 0.63 | -3.00 | 13.52 | 251.71 | -51.81 | 74.63 | 0.7949 | -358.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.85 | 14.69 | 251.33 | -52.19 | 73.23 | 0.8005 | -329.0 | -271.6 | |
| 0.00 | 0.69 | 0.00 | 0.56 | 14.14 | 251.32 | -52.21 | 73.91 | 0.7998 | -247.0 | -269.8 | |
| 1.89 | 3.26 | 1.57 | 2.71 | 14.58 | 250.76 | -52.76 | 73.46 | 0.8060 | -340.2 | -351.6 | |
| 0.00 | 2.23 | 0.00 | 1.85 | 14.19 | 250.90 | -52.63 | 73.92 | 0.8041 | -436.0 | -322.3 | |
| 1.97 | 2.32 | 1.64 | 1.93 | 14.34 | 250.70 | -52.83 | 73.78 | 0.8063 | -190.3 | -92.8 | |
| 0.00 | 0.77 | 0.00 | 0.64 | 13.70 | 250.75 | -52.77 | 74.55 | 0.8048 | -86.0 | -47.0 | |
| 0.00 | 2.23 | 0.00 | 1.86 | 13.48 | 250.52 | -53.01 | 74.86 | 0.8069 | 314.0 | 318.7 | |
| 0.00 | 1.20 | 0.00 | 1.01 | 13.23 | 250.29 | -53.24 | 75.20 | 0.8088 | 486.0 | 443.9 | |
| 0.00 | 1.37 | 0.00 | 1.17 | 14.04 | 249.82 | -53.71 | 74.29 | 0.8145 | 385.0 | 425.8 | |
| 0.00 | 1.37 | 0.00 | 1.17 | 14.52 | 249.60 | -53.93 | 73.74 | 0.8173 | 704.0 | 583.4 | |
| 0.00 | 1.63 | 0.00 | 1.39 | 14.33 | 249.56 | -53.97 | 73.97 | 0.8174 | 572.0 | 468.9 | |
| 0.00 | 0.86 | 0.00 | 0.74 | 14.81 | 249.18 | -54.35 | 73.45 | 0.8218 | 618.0 | 534.8 | |
| 0.00 | 1.03 | 0.00 | 0.88 | 11.14 | 249.16 | -54.37 | 77.91 | 0.8178 | 569.0 | 475.2 | |
| 0.00 | 0.94 | 0.00 | 0.81 | 10.96 | 249.05 | -54.48 | 78.15 | 0.8187 | 601.0 | 503.9 | |
| 0.00 | 0.60 | 0.00 | 0.52 | 11.28 | 248.60 | -54.93 | 77.81 | 0.8234 | 439.0 | 406.3 | |
| 0.00 | 1.20 | 0.00 | 1.04 | 10.38 | 248.68 | -54.84 | 78.89 | 0.8218 | 571.0 | 514.6 | |
| 0.00 | 1.97 | 0.00 | 1.71 | 10.13 | 248.64 | -54.89 | 79.19 | 0.8220 | 457.0 | 409.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
