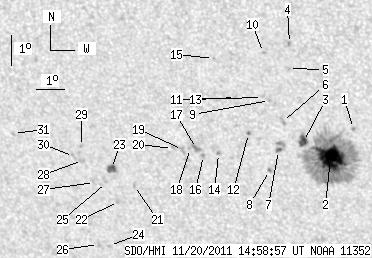

SDO HMI 2011-11-20 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.20 | 269.48 | 31.67 | 157.62 | -24.07 | 284.18 | -18.80 | 146.45 | 0.5329 | 453.6 | 257.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.84 | -23.17 | 286.23 | -16.75 | 148.21 | 0.5050 | 763.0 | 708.8 | |
| 38.67 | 201.49 | 22.45 | 117.05 | -24.14 | 285.32 | -17.66 | 147.97 | 0.5241 | 1232.6 | 368.5 | |
| 6.26 | 8.75 | 3.64 | 5.08 | -23.62 | 284.47 | -18.51 | 146.19 | 0.5247 | 822.4 | 622.6 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -20.44 | 284.43 | -18.54 | 142.15 | 0.4877 | 960.0 | 786.5 | |
| 0.00 | 1.71 | 0.00 | 0.98 | -21.24 | 284.30 | -18.68 | 143.02 | 0.4983 | 745.0 | 549.8 | |
| 0.00 | 3.43 | 0.00 | 1.99 | -22.97 | 283.85 | -19.13 | 144.56 | 0.5224 | 756.0 | 619.5 | |
| 1.80 | 7.46 | 1.05 | 4.36 | -23.93 | 283.57 | -19.41 | 145.31 | 0.5359 | 607.4 | 619.0 | |
| 1.29 | 1.54 | 0.76 | 0.91 | -24.60 | 283.15 | -19.83 | 145.53 | 0.5471 | 650.0 | 651.0 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -22.29 | 283.51 | -19.47 | 143.25 | 0.5175 | 715.0 | 523.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -20.74 | 283.53 | -19.45 | 141.26 | 0.4997 | 756.0 | 674.5 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -22.20 | 283.29 | -19.69 | 142.83 | 0.5185 | 622.0 | 545.0 | |
| 0.86 | 1.03 | 0.50 | 0.60 | -23.38 | 282.62 | -20.35 | 143.41 | 0.5378 | -722.7 | -808.0 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -22.21 | 282.36 | -20.62 | 141.61 | 0.5271 | 737.0 | 576.2 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -24.06 | 281.47 | -21.51 | 142.76 | 0.5554 | -840.0 | -699.7 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -20.96 | 281.80 | -21.18 | 139.24 | 0.5187 | 701.0 | 480.1 | |
| 0.00 | 2.06 | 0.00 | 1.23 | -24.13 | 280.93 | -22.05 | 142.19 | 0.5610 | -757.0 | -585.8 | |
| 0.00 | 4.37 | 0.00 | 2.61 | -23.91 | 280.73 | -22.25 | 141.67 | 0.5604 | -1009.0 | -832.6 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -23.91 | 280.52 | -22.46 | 141.42 | 0.5623 | -632.0 | -611.5 | |
| 0.00 | 3.52 | 0.00 | 2.11 | -23.95 | 280.23 | -22.75 | 141.13 | 0.5653 | -649.0 | -400.2 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -23.92 | 279.88 | -23.10 | 140.69 | 0.5682 | 678.0 | 608.4 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -25.17 | 278.27 | -24.71 | 140.39 | 0.5955 | -859.0 | -808.7 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -25.72 | 277.57 | -25.41 | 140.29 | 0.6072 | -559.0 | -507.5 | |
| 5.32 | 6.52 | 3.27 | 4.01 | -24.62 | 277.56 | -25.41 | 138.97 | 0.5965 | -899.5 | -746.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -27.22 | 276.88 | -26.10 | 141.29 | 0.6279 | -553.0 | -447.3 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -25.09 | 277.28 | -25.70 | 139.23 | 0.6037 | -673.0 | -558.9 | |
| 0.00 | 2.32 | 0.00 | 1.47 | -27.19 | 276.48 | -26.50 | 140.85 | 0.6311 | -659.0 | -544.6 | |
| 0.00 | 0.51 | 0.00 | 0.32 | -25.10 | 276.84 | -26.14 | 138.79 | 0.6078 | -492.0 | -559.7 | |
| 0.00 | 2.66 | 0.00 | 1.65 | -24.37 | 276.57 | -26.41 | 137.63 | 0.6034 | -755.0 | -659.4 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -23.91 | 276.64 | -26.34 | 137.12 | 0.5985 | -809.0 | -716.3 | |
| 0.00 | 2.14 | 0.00 | 1.33 | -24.25 | 276.27 | -26.71 | 137.17 | 0.6051 | -455.0 | -354.0 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -23.53 | 274.24 | -28.74 | 134.30 | 0.6183 | -524.0 | -456.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
