SDO HMI 2011-11-20 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.78 | 57.00 | 9.85 | 36.06 | 7.95 | 264.85 | -38.13 | 80.04 | 0.6226 | -725.3 | -444.6 | |
|
previous
or next observation for the same group /

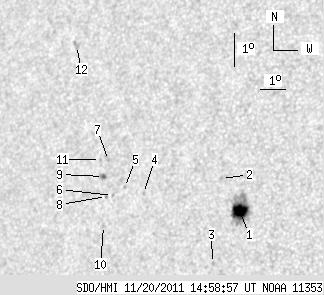

back to the solar disc SDO HMI 2011-11-20 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.89 | 40.21 | 8.59 | 24.86 | 7.46 | 266.45 | -36.53 | 80.50 | 0.6007 | -1059.7 | -485.7 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 8.40 | 265.67 | -37.31 | 79.11 | 0.6129 | 721.0 | 644.7 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 5.87 | 265.58 | -37.40 | 83.26 | 0.6107 | -670.0 | -564.3 | |
| 0.00 | 1.37 | 0.00 | 0.89 | 7.88 | 262.73 | -40.25 | 80.46 | 0.6513 | -729.0 | -482.7 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 8.04 | 261.96 | -41.02 | 80.33 | 0.6616 | -602.0 | -449.9 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 7.79 | 261.51 | -41.47 | 80.78 | 0.6670 | -523.0 | -398.9 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 8.83 | 261.22 | -41.76 | 79.28 | 0.6722 | -552.0 | -499.1 | |
| 0.00 | 1.20 | 0.00 | 0.80 | 7.75 | 261.27 | -41.70 | 80.86 | 0.6700 | -467.0 | -364.7 | |
| 1.89 | 2.66 | 1.26 | 1.78 | 8.35 | 261.08 | -41.90 | 80.01 | 0.6733 | -711.6 | -599.8 | |
| 0.00 | 1.71 | 0.00 | 1.14 | 6.89 | 261.25 | -41.72 | 82.16 | 0.6693 | -479.0 | -415.0 | |
| 0.00 | 1.11 | 0.00 | 0.75 | 8.85 | 260.89 | -42.09 | 79.30 | 0.6764 | -494.0 | -381.4 | |
| 0.00 | 4.03 | 0.00 | 2.79 | 12.23 | 259.31 | -43.67 | 74.74 | 0.7018 | -602.0 | -467.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
