SDO HMI 2011-11-20 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.84 | 260.55 | 35.61 | 207.09 | 14.15 | 252.31 | -50.67 | 73.63 | 0.7840 | -448.7 | -253.7 | |
|
previous
or next observation for the same group /

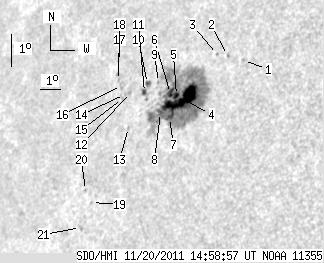

back to the solar disc SDO HMI 2011-11-20 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.97 | 15.43 | 255.12 | -47.86 | 71.40 | 0.7566 | -561.0 | -477.9 | |
| 0.00 | 0.94 | 0.00 | 0.72 | 15.56 | 254.33 | -48.65 | 71.41 | 0.7653 | 365.0 | 239.2 | |
| 0.00 | 1.11 | 0.00 | 0.86 | 15.57 | 253.86 | -49.12 | 71.50 | 0.7704 | -442.0 | -466.4 | |
| 32.41 | 234.84 | 25.59 | 185.88 | 14.17 | 252.63 | -50.35 | 73.55 | 0.7807 | -893.0 | -302.2 | |
| 2.49 | -4.00 | 1.98 | -4.00 | 14.28 | 252.31 | -50.67 | 73.47 | 0.7842 | -697.2 | 999999 | |
| 3.34 | -4.00 | 2.68 | -4.00 | 14.33 | 252.00 | -50.98 | 73.46 | 0.7875 | -530.9 | 999999 | |
| 1.20 | -4.00 | 0.95 | -4.00 | 13.61 | 252.17 | -50.80 | 74.34 | 0.7846 | -480.1 | 999999 | |
| 1.63 | -4.00 | 1.31 | -4.00 | 13.74 | 251.69 | -51.28 | 74.25 | 0.7898 | 385.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.70 | 14.64 | 251.31 | -51.67 | 73.19 | 0.7951 | -347.0 | -299.1 | |
| 2.06 | 9.09 | 1.69 | 7.46 | 14.60 | 250.77 | -52.21 | 73.35 | 0.8004 | -325.2 | -261.6 | |
| 1.71 | -10.00 | 1.41 | -10.00 | 14.32 | 250.72 | -52.26 | 73.70 | 0.8006 | -214.6 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.58 | 14.30 | 250.01 | -52.97 | 73.84 | 0.8076 | 301.0 | 309.7 | |
| 0.00 | 1.03 | 0.00 | 0.85 | 13.25 | 250.26 | -52.72 | 75.11 | 0.8037 | 597.0 | 536.0 | |
| 0.00 | 0.86 | 0.00 | 0.72 | 14.23 | 249.73 | -53.25 | 73.97 | 0.8103 | 711.0 | 631.4 | |
| 0.00 | 1.11 | 0.00 | 0.94 | 14.11 | 249.67 | -53.31 | 74.14 | 0.8107 | 482.0 | 433.0 | |
| 0.00 | 2.40 | 0.00 | 2.03 | 14.50 | 249.48 | -53.50 | 73.69 | 0.8131 | 552.0 | 533.8 | |
| 0.00 | 1.11 | 0.00 | 0.95 | 14.86 | 249.20 | -53.78 | 73.30 | 0.8164 | 551.0 | 449.2 | |
| 0.00 | 0.94 | 0.00 | 0.80 | 14.64 | 249.28 | -53.70 | 73.54 | 0.8153 | 455.0 | 411.3 | |
| 0.00 | 0.60 | 0.00 | 0.51 | 10.94 | 249.03 | -53.94 | 78.11 | 0.8134 | 578.0 | 510.6 | |
| 0.00 | 0.77 | 0.00 | 0.66 | 11.29 | 248.63 | -54.35 | 77.72 | 0.8177 | 446.0 | 432.7 | |
| 0.00 | 1.71 | 0.00 | 1.46 | 10.18 | 248.66 | -54.32 | 79.08 | 0.8164 | 511.0 | 480.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
