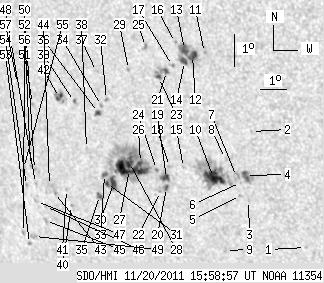

SDO HMI 2011-11-20 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.19 | 308.52 | 60.06 | 199.70 | -15.81 | 266.25 | -36.18 | 118.07 | 0.6456 | 5.6 | -38.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.58 | -18.64 | 271.55 | -30.88 | 125.82 | 0.6021 | 684.0 | 538.5 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -15.04 | 270.26 | -32.17 | 119.51 | 0.5932 | -487.0 | -397.6 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -17.20 | 269.75 | -32.68 | 122.35 | 0.6129 | 723.0 | 534.4 | |
| 4.54 | 9.00 | 2.83 | 5.60 | -16.42 | 269.79 | -32.64 | 121.24 | 0.6074 | 945.1 | 800.9 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -17.05 | 269.48 | -32.95 | 121.94 | 0.6150 | 640.0 | 469.5 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -16.64 | 269.56 | -32.87 | 121.41 | 0.6115 | 661.0 | 534.5 | |
| 0.00 | 4.03 | 0.00 | 2.52 | -16.46 | 269.45 | -32.98 | 121.06 | 0.6117 | 811.0 | 715.7 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -15.90 | 269.15 | -33.28 | 120.03 | 0.6118 | 789.0 | 684.0 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -18.80 | 268.54 | -33.88 | 123.75 | 0.6371 | 286.0 | 355.9 | |
| 18.09 | 60.96 | 11.42 | 38.46 | -16.51 | 268.59 | -33.84 | 120.53 | 0.6222 | 841.0 | 333.2 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -12.64 | 268.93 | -33.50 | 114.92 | 0.5961 | 765.0 | 627.3 | |
| 5.32 | 32.49 | 3.29 | 20.16 | -12.74 | 268.48 | -33.95 | 114.81 | 0.6024 | 968.4 | 570.7 | |
| 5.14 | -12.00 | 3.19 | -12.00 | -12.56 | 268.21 | -34.22 | 114.37 | 0.6049 | 879.7 | 999999 | |
| 3.52 | -12.00 | 2.19 | -12.00 | -12.93 | 268.15 | -34.28 | 114.91 | 0.6075 | 661.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -16.22 | 267.52 | -34.91 | 119.41 | 0.6331 | 233.0 | 152.6 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -12.35 | 267.91 | -34.52 | 113.88 | 0.6077 | 655.0 | 447.7 | |
| 0.00 | 1.80 | 0.00 | 1.13 | -13.06 | 267.69 | -34.74 | 114.84 | 0.6140 | 822.0 | 650.1 | |
| 0.00 | 1.29 | 0.00 | 0.83 | -16.20 | 267.00 | -35.43 | 119.05 | 0.6392 | -700.0 | -604.4 | |
| 3.00 | 7.63 | 1.94 | 4.93 | -16.58 | 266.80 | -35.63 | 119.47 | 0.6436 | 442.3 | -201.0 | |
| 2.06 | 3.00 | 1.33 | 1.94 | -16.86 | 266.74 | -35.69 | 119.83 | 0.6459 | 539.3 | 330.7 | |
| 2.14 | 10.03 | 1.35 | 6.32 | -13.25 | 267.43 | -34.99 | 114.98 | 0.6181 | 759.2 | 596.1 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -16.99 | 266.48 | -35.95 | 119.85 | 0.6496 | 494.0 | 429.6 | |
| 1.63 | -21.00 | 1.03 | -21.00 | -13.44 | 267.10 | -35.33 | 115.08 | 0.6232 | 562.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.94 | -16.31 | 266.48 | -35.95 | 118.88 | 0.6458 | -863.0 | -795.6 | |
| 0.00 | 2.83 | 0.00 | 1.79 | -12.50 | 266.77 | -35.66 | 113.48 | 0.6227 | 933.0 | 698.4 | |
| 1.54 | 113.17 | 1.00 | 74.30 | -16.10 | 265.91 | -36.52 | 118.25 | 0.6514 | -1029.1 | -414.1 | |
| 22.21 | -26.00 | 14.57 | -26.00 | -16.33 | 265.43 | -36.99 | 118.29 | 0.6581 | -917.8 | 999999 | |
| 5.23 | -26.00 | 3.42 | -26.00 | -16.11 | 265.48 | -36.95 | 118.01 | 0.6564 | -1052.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -13.22 | 266.01 | -36.42 | 114.15 | 0.6356 | 781.0 | 658.5 | |
| 6.09 | -26.00 | 4.04 | -26.00 | -16.79 | 264.71 | -37.72 | 118.50 | 0.6689 | -667.5 | 999999 | |
| 1.46 | -26.00 | 0.97 | -26.00 | -16.79 | 264.43 | -38.00 | 118.35 | 0.6721 | 504.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -14.17 | 265.00 | -37.43 | 114.98 | 0.6525 | 813.0 | 605.1 | |
| 2.40 | -26.00 | 1.60 | -26.00 | -16.51 | 264.42 | -38.01 | 117.96 | 0.6708 | 384.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -14.36 | 264.76 | -37.66 | 115.13 | 0.6562 | 576.0 | 508.8 | |
| 3.00 | 3.60 | 2.02 | 2.42 | -17.18 | 264.06 | -38.37 | 118.67 | 0.6782 | 672.8 | 566.3 | |
| 2.31 | 3.34 | 1.52 | 2.20 | -14.58 | 264.60 | -37.82 | 115.36 | 0.6591 | 650.2 | 580.8 | |
| 0.00 | 1.97 | 0.00 | 1.28 | -13.32 | 264.77 | -37.66 | 113.63 | 0.6512 | -533.0 | -338.9 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -15.72 | 263.89 | -38.54 | 116.57 | 0.6729 | -218.0 | -138.3 | |
| 0.34 | 2.14 | 0.23 | 1.42 | -14.26 | 263.73 | -38.70 | 114.46 | 0.6680 | -714.2 | -478.0 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -17.52 | 262.85 | -39.58 | 118.47 | 0.6935 | 552.0 | 429.4 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -17.02 | 262.78 | -39.65 | 117.76 | 0.6919 | -523.0 | -461.7 | |
| 3.17 | 9.95 | 2.12 | 6.65 | -14.16 | 263.16 | -39.27 | 114.03 | 0.6743 | -842.5 | -667.7 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -17.13 | 262.27 | -40.16 | 117.64 | 0.6981 | -777.0 | -748.1 | |
| 0.00 | 1.97 | 0.00 | 1.36 | -16.92 | 262.12 | -40.31 | 117.28 | 0.6987 | -704.0 | -631.3 | |
| 0.00 | 1.71 | 0.00 | 1.20 | -18.03 | 261.65 | -40.77 | 118.50 | 0.7091 | -757.0 | -599.9 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -17.58 | 261.78 | -40.65 | 117.99 | 0.7056 | -730.0 | -595.3 | |
| 0.00 | 1.29 | 0.00 | 0.90 | -17.43 | 261.45 | -40.98 | 117.62 | 0.7085 | -510.0 | -441.7 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -16.87 | 261.56 | -40.87 | 116.93 | 0.7047 | -676.0 | -590.5 | |
| 0.00 | 3.26 | 0.00 | 2.31 | -18.55 | 261.05 | -41.38 | 118.87 | 0.7180 | -677.0 | -573.8 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -16.43 | 261.63 | -40.80 | 116.38 | 0.7019 | -852.0 | -624.9 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -14.37 | 262.04 | -40.39 | 113.79 | 0.6883 | -573.0 | -528.6 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -16.31 | 261.50 | -40.93 | 116.16 | 0.7029 | -781.0 | -607.1 | |
| 0.00 | 1.71 | 0.00 | 1.22 | -18.78 | 260.77 | -41.66 | 119.02 | 0.7221 | -722.0 | -521.2 | |
| 0.00 | 1.37 | 0.00 | 0.96 | -16.94 | 261.17 | -41.26 | 116.83 | 0.7094 | -538.0 | -409.5 | |
| 0.00 | 1.97 | 0.00 | 1.38 | -16.41 | 261.19 | -41.24 | 116.14 | 0.7068 | -637.0 | -538.3 | |
| 0.00 | 1.63 | 0.00 | 1.16 | -18.43 | 260.62 | -41.81 | 118.51 | 0.7221 | -736.0 | -558.9 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -13.77 | 261.57 | -40.86 | 112.74 | 0.6914 | -659.0 | -575.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
