SDO HMI 2011-11-20 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.14 | 62.76 | 9.13 | 33.17 | 17.82 | 315.21 | 12.78 | 323.68 | 0.3468 | -425.1 | -336.2 | |
|
previous
or next observation for the same group /

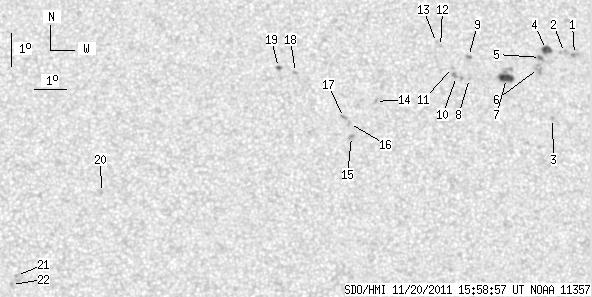

back to the solar disc SDO HMI 2011-11-20 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.66 | 0.00 | 1.43 | 18.71 | 319.02 | 16.59 | 316.52 | 0.3948 | -720.0 | -702.7 | |
| 0.00 | 4.37 | 0.00 | 2.35 | 18.78 | 318.70 | 16.27 | 317.18 | 0.3920 | -699.0 | -591.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 16.75 | 318.12 | 15.70 | 314.22 | 0.3631 | -907.0 | -713.4 | |
| 5.66 | 6.52 | 3.04 | 3.50 | 18.88 | 318.12 | 15.70 | 318.35 | 0.3869 | -930.8 | -762.1 | |
| 1.71 | 2.49 | 0.92 | 1.33 | 18.63 | 317.91 | 15.48 | 318.29 | 0.3817 | -842.2 | -776.8 | |
| 0.00 | 4.97 | 0.00 | 2.66 | 18.29 | 317.81 | 15.38 | 317.83 | 0.3767 | -798.0 | -821.3 | |
| 8.14 | 14.92 | 4.32 | 7.92 | 17.99 | 316.75 | 14.32 | 319.22 | 0.3619 | -1090.9 | -575.5 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 18.00 | 315.57 | 13.14 | 321.61 | 0.3496 | 701.0 | 444.9 | |
| 0.00 | 2.06 | 0.00 | 1.09 | 18.68 | 315.59 | 13.16 | 322.81 | 0.3583 | 908.0 | 715.1 | |
| 0.00 | 3.94 | 0.00 | 2.08 | 18.07 | 315.16 | 12.73 | 322.59 | 0.3463 | 970.0 | 835.1 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 18.35 | 315.05 | 12.62 | 323.33 | 0.3488 | 800.0 | 644.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.00 | 314.71 | 12.29 | 325.19 | 0.3540 | -626.0 | -446.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.12 | 314.59 | 12.17 | 325.66 | 0.3545 | -702.0 | -571.9 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 17.32 | 312.54 | 10.11 | 327.29 | 0.3115 | -891.0 | -678.2 | |
| 0.00 | 2.91 | 0.00 | 1.51 | 16.25 | 311.73 | 9.30 | 327.42 | 0.2895 | -1071.0 | -818.2 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 16.65 | 311.69 | 9.26 | 328.29 | 0.2946 | -868.0 | -672.2 | |
| 0.00 | 2.57 | 0.00 | 1.33 | 16.84 | 311.51 | 9.08 | 329.12 | 0.2957 | -585.0 | -592.3 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 18.23 | 310.07 | 7.64 | 335.41 | 0.3048 | -888.0 | -627.2 | |
| 1.63 | 1.80 | 0.85 | 0.94 | 18.38 | 309.54 | 7.11 | 337.13 | 0.3036 | -677.4 | -749.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 14.58 | 303.97 | 1.54 | 353.06 | 0.2164 | 847.0 | 594.8 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 12.07 | 301.38 | -1.05 | 5.97 | 0.1727 | 963.0 | 720.2 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 11.80 | 301.23 | -1.20 | 7.02 | 0.1684 | 925.0 | 756.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
