SDO HMI 2011-11-20 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.00 | 311.77 | 48.89 | 199.13 | -15.87 | 266.17 | -35.15 | 118.79 | 0.6338 | 13.0 | -53.4 | |
|
previous
or next observation for the same group /

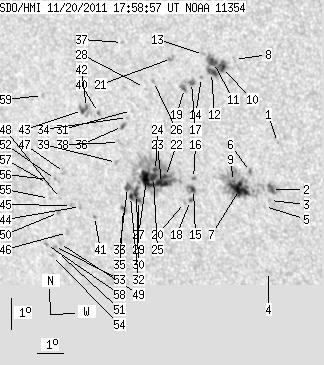

back to the solar disc SDO HMI 2011-11-20 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.47 | -15.02 | 270.24 | -31.08 | 120.27 | 0.5796 | -623.0 | -510.9 | |
| 4.46 | 9.09 | 2.74 | 5.58 | -16.49 | 269.77 | -31.56 | 122.15 | 0.5949 | 952.0 | 838.4 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -16.83 | 269.63 | -31.69 | 122.56 | 0.5988 | 713.0 | 581.3 | |
| 0.00 | 2.57 | 0.00 | 1.62 | -19.08 | 269.14 | -32.19 | 125.40 | 0.6199 | 468.0 | 441.0 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -17.03 | 269.41 | -31.91 | 122.67 | 0.6027 | 646.0 | 509.5 | |
| 1.37 | 2.06 | 0.85 | 1.27 | -15.94 | 269.10 | -32.22 | 120.84 | 0.5993 | 605.4 | 577.2 | |
| 12.60 | 68.32 | 7.85 | 42.54 | -16.51 | 268.59 | -32.73 | 121.32 | 0.6090 | 946.7 | 433.8 | |
| 0.00 | 1.89 | 0.00 | 1.14 | -12.49 | 269.08 | -32.24 | 115.47 | 0.5792 | 683.0 | 567.0 | |
| 0.26 | -7.00 | 0.16 | -7.00 | -16.27 | 268.42 | -32.90 | 120.83 | 0.6096 | 796.7 | 999999 | |
| 2.66 | 25.55 | 1.62 | 15.64 | -12.74 | 268.61 | -32.71 | 115.57 | 0.5866 | 931.5 | 717.1 | |
| 4.37 | -10.00 | 2.68 | -10.00 | -12.59 | 268.31 | -33.02 | 115.15 | 0.5897 | 926.7 | 999999 | |
| 4.89 | -10.00 | 3.00 | -10.00 | -12.90 | 268.19 | -33.14 | 115.56 | 0.5929 | 670.4 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.21 | -12.36 | 267.98 | -33.35 | 114.57 | 0.5927 | 534.0 | 371.0 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -13.07 | 267.80 | -33.52 | 115.57 | 0.5987 | 749.0 | 651.2 | |
| 2.66 | 5.74 | 1.69 | 3.66 | -16.55 | 266.88 | -34.45 | 120.19 | 0.6296 | 539.5 | -9.1 | |
| 0.43 | 1.37 | 0.27 | 0.87 | -16.21 | 266.95 | -34.38 | 119.73 | 0.6267 | -771.2 | -652.5 | |
| 2.83 | 9.69 | 1.75 | 6.03 | -13.23 | 267.41 | -33.92 | 115.58 | 0.6045 | 779.6 | 565.6 | |
| 1.37 | 1.54 | 0.88 | 0.99 | -16.90 | 266.69 | -34.63 | 120.56 | 0.6338 | 547.4 | 627.5 | |
| 0.86 | -17.00 | 0.53 | -17.00 | -13.42 | 267.12 | -34.20 | 115.70 | 0.6091 | 650.1 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.93 | -16.97 | 266.45 | -34.87 | 120.50 | 0.6370 | 450.0 | 314.9 | |
| 0.00 | 2.91 | 0.00 | 1.82 | -12.51 | 266.78 | -34.54 | 114.10 | 0.6087 | 921.0 | 679.6 | |
| 1.03 | 125.59 | 0.66 | 81.30 | -16.17 | 265.90 | -35.42 | 119.01 | 0.6389 | -1057.7 | -450.7 | |
| 6.52 | -22.00 | 4.20 | -22.00 | -16.39 | 265.70 | -35.62 | 119.20 | 0.6424 | -1033.9 | 999999 | |
| 1.80 | -22.00 | 1.16 | -22.00 | -15.99 | 265.56 | -35.77 | 118.54 | 0.6419 | -963.4 | 999999 | |
| 3.26 | -22.00 | 2.11 | -22.00 | -16.21 | 265.44 | -35.89 | 118.78 | 0.6446 | -1084.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -13.23 | 266.00 | -35.32 | 114.75 | 0.6221 | 739.0 | 584.6 | |
| 10.37 | -22.00 | 6.73 | -22.00 | -16.28 | 265.15 | -36.17 | 118.71 | 0.6482 | -925.0 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.22 | -13.42 | 265.63 | -35.69 | 114.83 | 0.6277 | 377.0 | 519.8 | |
| 1.46 | -22.00 | 0.95 | -22.00 | -16.95 | 264.70 | -36.63 | 119.36 | 0.6572 | -682.3 | 999999 | |
| 1.54 | -22.00 | 1.01 | -22.00 | -16.76 | 264.66 | -36.66 | 119.08 | 0.6565 | -766.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -14.15 | 265.01 | -36.32 | 115.55 | 0.6388 | 744.0 | 615.0 | |
| 1.37 | -22.00 | 0.90 | -22.00 | -16.83 | 264.41 | -36.91 | 119.03 | 0.6598 | 404.6 | 999999 | |
| 4.03 | -22.00 | 2.65 | -22.00 | -16.55 | 264.36 | -36.96 | 118.61 | 0.6589 | 409.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -14.37 | 264.82 | -36.51 | 115.76 | 0.6423 | 537.0 | 416.6 | |
| 2.74 | 2.83 | 1.82 | 1.87 | -17.21 | 264.05 | -37.27 | 119.35 | 0.6660 | 685.8 | 699.5 | |
| 1.63 | 2.83 | 1.05 | 1.83 | -14.65 | 264.57 | -36.75 | 116.04 | 0.6467 | 639.8 | 613.8 | |
| 0.00 | 1.29 | 0.00 | 0.82 | -12.06 | 265.03 | -36.30 | 112.47 | 0.6287 | 681.0 | 500.3 | |
| 0.00 | 2.49 | 0.00 | 1.62 | -15.15 | 264.35 | -36.97 | 116.63 | 0.6517 | -62.0 | 125.7 | |
| 0.00 | 1.80 | 0.00 | 1.18 | -15.78 | 264.11 | -37.22 | 117.38 | 0.6578 | -784.0 | -600.8 | |
| 0.00 | 1.46 | 0.00 | 0.95 | -14.24 | 263.73 | -37.60 | 114.99 | 0.6548 | -734.0 | -682.2 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -17.50 | 262.84 | -38.48 | 119.03 | 0.6811 | 211.0 | 286.5 | |
| 1.63 | 9.43 | 1.07 | 6.20 | -14.09 | 263.29 | -38.03 | 114.55 | 0.6593 | -933.1 | -680.6 | |
| 0.86 | -42.00 | 0.56 | -42.00 | -14.19 | 263.11 | -38.21 | 114.60 | 0.6619 | -819.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -17.19 | 262.36 | -38.97 | 118.36 | 0.6850 | -749.0 | -623.6 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -17.17 | 262.00 | -39.32 | 118.13 | 0.6889 | -808.0 | -687.7 | |
| 0.00 | 2.31 | 0.00 | 1.59 | -18.03 | 261.62 | -39.71 | 119.07 | 0.6974 | -722.0 | -542.1 | |
| 0.00 | 1.63 | 0.00 | 1.10 | -16.14 | 261.98 | -39.35 | 116.73 | 0.6842 | -436.0 | -535.1 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -16.96 | 261.61 | -39.71 | 117.65 | 0.6922 | -684.0 | -576.2 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -18.39 | 261.19 | -40.13 | 119.31 | 0.7038 | -760.0 | -529.2 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -17.41 | 261.42 | -39.91 | 118.14 | 0.6966 | -694.0 | -582.9 | |
| 0.00 | 0.51 | 0.00 | 0.36 | -18.68 | 261.03 | -40.30 | 119.60 | 0.7070 | -526.0 | -496.2 | |
| 0.00 | 1.71 | 0.00 | 1.17 | -16.37 | 261.56 | -39.76 | 116.82 | 0.6900 | -677.0 | -620.8 | |
| 0.00 | 1.46 | 0.00 | 1.02 | -18.49 | 260.96 | -40.37 | 119.32 | 0.7069 | -723.0 | -675.4 | |
| 0.00 | 1.63 | 0.00 | 1.14 | -18.78 | 260.79 | -40.53 | 119.61 | 0.7101 | -693.0 | -551.2 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -16.97 | 261.16 | -40.16 | 117.43 | 0.6973 | -619.0 | -535.3 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -16.38 | 261.28 | -40.05 | 116.69 | 0.6933 | -604.0 | -402.2 | |
| 0.00 | 1.20 | 0.00 | 0.82 | -16.50 | 261.20 | -40.12 | 116.82 | 0.6947 | -544.0 | -452.3 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -18.44 | 260.64 | -40.68 | 119.08 | 0.7100 | -727.0 | -522.1 | |
| 0.00 | 1.80 | 0.00 | 1.21 | -13.77 | 261.63 | -39.70 | 113.27 | 0.6777 | -601.0 | -477.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
