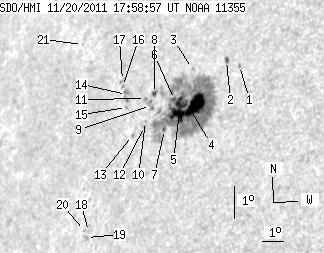

SDO HMI 2011-11-20 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.65 | 282.47 | 36.47 | 217.21 | 14.18 | 252.27 | -49.05 | 73.26 | 0.7669 | -492.6 | -249.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.95 | 15.51 | 254.53 | -46.79 | 71.02 | 0.7451 | 297.0 | 236.7 | |
| 1.71 | 2.14 | 1.28 | 1.60 | 15.65 | 253.90 | -47.42 | 71.00 | 0.7523 | -494.2 | -577.8 | |
| 0.00 | 1.11 | 0.00 | 0.86 | 15.36 | 252.42 | -48.91 | 71.72 | 0.7677 | -330.0 | -212.1 | |
| 34.80 | 251.95 | 26.55 | 192.83 | 14.18 | 252.63 | -48.69 | 73.20 | 0.7631 | -943.9 | -316.8 | |
| 6.34 | -4.00 | 4.89 | -4.00 | 14.29 | 252.18 | -49.14 | 73.15 | 0.7681 | -636.6 | 999999 | |
| 1.89 | -4.00 | 1.46 | -4.00 | 14.40 | 251.87 | -49.46 | 73.07 | 0.7717 | -356.5 | 999999 | |
| 1.20 | -4.00 | 0.93 | -4.00 | 13.48 | 251.66 | -49.66 | 74.29 | 0.7723 | -382.8 | 999999 | |
| 1.71 | 2.49 | 1.36 | 1.97 | 14.55 | 250.86 | -50.46 | 73.07 | 0.7826 | -362.5 | -300.9 | |
| 0.00 | 4.97 | 0.00 | 3.94 | 14.19 | 250.78 | -50.54 | 73.55 | 0.7828 | -333.0 | -257.3 | |
| 0.00 | 0.86 | 0.00 | 0.68 | 13.70 | 250.69 | -50.63 | 74.19 | 0.7829 | -298.0 | -220.6 | |
| 0.00 | 1.29 | 0.00 | 1.03 | 14.39 | 250.48 | -50.85 | 73.35 | 0.7863 | 311.0 | 273.6 | |
| 0.00 | 1.37 | 0.00 | 1.09 | 13.55 | 250.69 | -50.64 | 74.38 | 0.7827 | 44.0 | -105.2 | |
| 0.00 | 1.29 | 0.00 | 1.03 | 13.26 | 250.19 | -51.13 | 74.83 | 0.7875 | 669.0 | 567.1 | |
| 0.00 | 5.83 | 0.00 | 4.75 | 14.48 | 249.51 | -51.81 | 73.41 | 0.7963 | 622.0 | 640.1 | |
| 0.00 | 1.11 | 0.00 | 0.90 | 14.09 | 249.64 | -51.68 | 73.88 | 0.7944 | 538.0 | 519.6 | |
| 0.00 | 1.20 | 0.00 | 0.98 | 14.72 | 249.23 | -52.09 | 73.17 | 0.7995 | 599.0 | 472.1 | |
| 0.00 | 2.23 | 0.00 | 1.83 | 14.90 | 249.17 | -52.15 | 72.96 | 0.8004 | 588.0 | 416.0 | |
| 0.00 | 0.94 | 0.00 | 0.77 | 10.32 | 248.81 | -52.52 | 78.71 | 0.7983 | 562.0 | 560.4 | |
| 0.00 | 1.29 | 0.00 | 1.05 | 10.14 | 248.75 | -52.57 | 78.95 | 0.7988 | 638.0 | 519.0 | |
| 0.00 | 0.34 | 0.00 | 0.28 | 10.35 | 248.60 | -52.72 | 78.71 | 0.8005 | 523.0 | 513.8 | |
| 0.00 | 0.77 | 0.00 | 0.67 | 15.93 | 246.71 | -54.61 | 72.14 | 0.8258 | 390.0 | 314.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
