SDO HMI 2011-11-20 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.27 | 284.09 | 78.69 | 500.67 | 15.91 | 227.98 | -73.34 | 74.04 | 0.9564 | -281.5 | -71.5 | |
|
previous
or next observation for the same group /

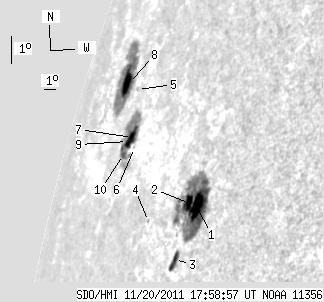

back to the solar disc SDO HMI 2011-11-20 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.69 | 136.30 | 20.43 | 179.85 | 14.25 | 233.82 | -67.50 | 75.50 | 0.9266 | -808.6 | -199.1 | |
| 6.94 | -1.00 | 9.29 | -1.00 | 14.29 | 233.22 | -68.10 | 75.49 | 0.9304 | -245.6 | 999999 | |
| 6.26 | 10.54 | 8.39 | 14.15 | 12.58 | 233.01 | -68.31 | 77.35 | 0.9311 | -195.2 | 9.6 | |
| 0.00 | 1.20 | 0.00 | 1.86 | 13.63 | 230.01 | -71.31 | 76.36 | 0.9487 | 117.0 | 101.1 | |
| 0.00 | 0.86 | 0.00 | 1.80 | 17.51 | 224.99 | -76.33 | 72.52 | 0.9726 | 196.0 | 154.2 | |
| 0.00 | 1.11 | 0.00 | 2.09 | 15.77 | 226.65 | -74.67 | 74.25 | 0.9655 | 238.0 | 225.5 | |
| 8.83 | 53.41 | 17.12 | 105.60 | 16.06 | 226.10 | -75.22 | 73.97 | 0.9679 | 430.4 | -43.3 | |
| 7.12 | 80.67 | 16.61 | 195.32 | 17.64 | 223.53 | -77.80 | 72.43 | 0.9780 | -476.2 | 12.7 | |
| 2.23 | -7.00 | 4.45 | -7.00 | 15.92 | 225.63 | -75.69 | 74.13 | 0.9698 | -311.0 | 999999 | |
| 1.20 | -7.00 | 2.40 | -7.00 | 15.52 | 225.58 | -75.75 | 74.55 | 0.9700 | -492.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
