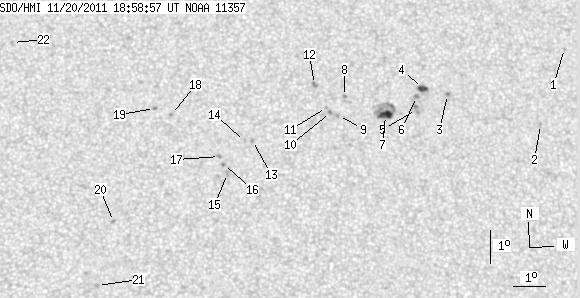

SDO HMI 2011-11-20 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.00 | 66.77 | 6.46 | 35.59 | 18.00 | 315.54 | 14.77 | 319.15 | 0.3685 | -397.9 | -350.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.67 | 20.09 | 323.13 | 22.36 | 310.91 | 0.4747 | 721.0 | 579.6 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 17.75 | 322.00 | 21.23 | 308.09 | 0.4400 | 697.0 | 612.7 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 18.72 | 319.03 | 18.26 | 313.92 | 0.4137 | -799.0 | -746.8 | |
| 4.54 | 7.29 | 2.46 | 3.95 | 18.91 | 318.23 | 17.46 | 315.50 | 0.4067 | -899.7 | -616.6 | |
| 0.00 | 3.77 | 0.00 | 2.03 | 18.27 | 317.97 | 17.19 | 314.72 | 0.3968 | -823.0 | -811.3 | |
| 0.00 | 2.14 | 0.00 | 1.16 | 18.67 | 318.01 | 17.24 | 315.40 | 0.4016 | -1054.0 | -891.5 | |
| 7.46 | 25.03 | 4.00 | 13.42 | 18.09 | 316.94 | 16.17 | 316.08 | 0.3833 | -1077.9 | -462.4 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 18.69 | 315.67 | 14.90 | 319.46 | 0.3763 | 865.0 | 689.8 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 18.11 | 315.42 | 14.65 | 318.83 | 0.3668 | 879.0 | 745.8 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 18.20 | 315.17 | 14.40 | 319.48 | 0.3652 | 1000.0 | 860.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 18.36 | 315.06 | 14.29 | 319.99 | 0.3659 | 801.0 | 584.8 | |
| 0.00 | 2.66 | 0.00 | 1.42 | 19.07 | 314.73 | 13.96 | 321.91 | 0.3712 | -947.0 | -733.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 17.36 | 312.62 | 11.85 | 323.20 | 0.3286 | -851.0 | -693.7 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 17.33 | 312.36 | 11.59 | 323.73 | 0.3257 | -740.0 | -617.0 | |
| 0.00 | 2.57 | 0.00 | 1.34 | 16.36 | 311.77 | 11.00 | 323.23 | 0.3071 | -1028.0 | -808.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 16.63 | 311.66 | 10.89 | 324.05 | 0.3096 | -975.0 | -772.6 | |
| 0.00 | 2.14 | 0.00 | 1.12 | 16.88 | 311.55 | 10.77 | 324.81 | 0.3118 | -932.0 | -577.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.18 | 310.11 | 9.33 | 330.77 | 0.3170 | -855.0 | -635.8 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 18.37 | 309.58 | 8.81 | 332.44 | 0.3155 | -1010.0 | -727.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.92 | 308.15 | 7.38 | 330.58 | 0.2538 | 907.0 | 668.2 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 12.99 | 307.60 | 6.83 | 328.22 | 0.2210 | 887.0 | 775.7 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 20.43 | 305.18 | 4.40 | 347.04 | 0.3222 | -747.0 | -615.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
